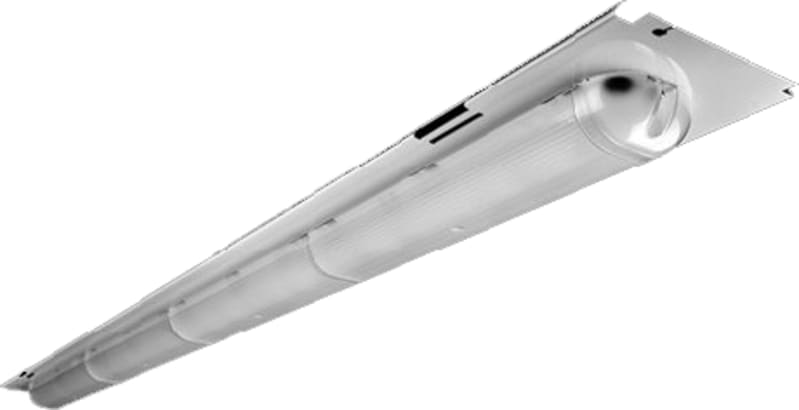

MIR KIT LED 7500 HF 840

Glamox MIR078960 MIR KIT-1500 LED 7500 HF 840.

Manufacturer part number (MPN)

MIR078960 EAN / GTIN: 7054130789604 Sales unit: pcs Product shape: Linear EMC Category: EMC1 : EMC B – IEC 60533 Bridge and Open deck Leakage current (mA): 0.30 Voltage from (V): 220 Maximum voltage (V): 240 minimum frequency (Hz): 50 Maximum frequency (Hz): 60 Main Feed DC (V) Min: 180 Main Feed DC (V) Max: 270 Total consumption (W): 51 Number of luminaires on a 10A MCB type B: 13 Number of luminaires on a 10A MCB type C: 21 Number of luminaires on a 16A MCB type C: 35 Marine Approved: No EX zone: No Ex minimum ambient temperature (ºC): -25 Maximum ambient temperature (°C): 45 Light source: LED Lumen out (lm): 7.596 Lumen per Watt (lm/W): 149 Lamp colour temp (K): 4000 CRI Colour rendering index: >80 Light distribution up %: 5 Light distribution down %: 95 MacAdam step: 3 Energy class light source: C Light source included: Yes Type of LED Driver: HF: Non dimmable Number of Driver: 1 L80 Median useful life LED Ta25 (hr): 100000 L80 Median useful life LED MaxTa (hr): 90000 Driver lifetime at Ta=25, 10% failure rate (h): 100.000 Driver lifetime at Ta=45, 10% failure rate (h): 90.000 Main body material: Aluminium/ zinc-treated steel Body colour: WH - White Main body colour name: White Length (mm): 1.550 Net weight (kg): 2.56 Item gross weight (kg): 2.78

• EAN 7054130789604
• SAP 1200018482
• Code 81425863
