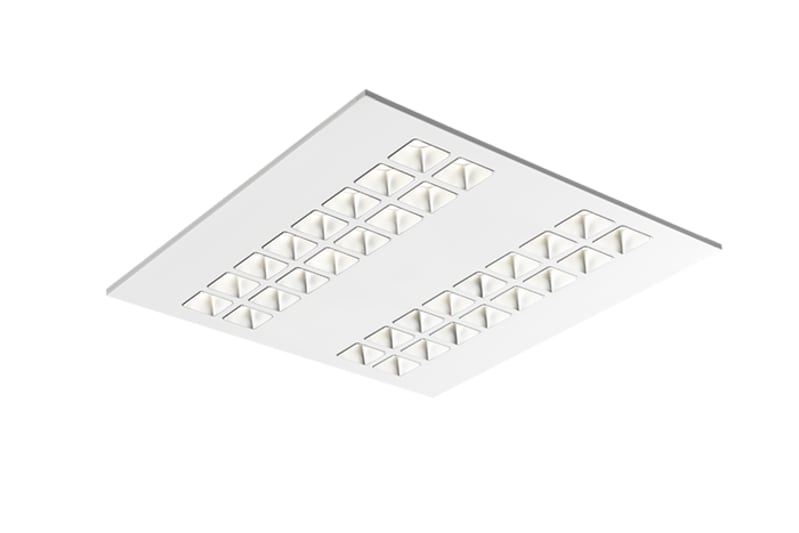

C77-R600X600 WH 4000 HF 840 LI 4XSM

Glamox C77103057 C77-R600x600 WH 4000 HF 840 LI 4xSM.

Manufacturer part number (MPN)

C77103057 EAN / GTIN: 7054131030576 Sales unit: pcs Product shape: Rectangular minimum ambient temperature (ºC): -25 Maximum ambient temperature (°C): 40 IK classification: 08 IP classification: 40 from underneath \ 20 from above Light source: LED Lumen out (lm): 4.078 Lumen per Watt (lm/W): 151 Lamp colour temp (K): 4000 CRI Colour rendering index: >80 MacAdam step: 3 Energy class light source: D PstLM: Flicker (<): 1 SVM: Stroboscopic Visibility Measure (<): 0.40 Type of LED Driver: HF: Non dimmable Number of Driver: 1 L80 Median useful life LED Ta25 (hr): 100000 Driver lifetime at Ta=25, 10% failure rate (h): 100.000 Driver lifetime at Ta=45, 10% failure rate (h): 50.000 Luminous flux decline (LLMF) 50.000h Ta25: 0.96 Voltage from (V): 220 Maximum voltage (V): 240 minimum frequency (Hz): 50 Maximum frequency (Hz): 60 Total consumption (W): 27 Number of luminaires on a 10A MCB type B: 20 Number of luminaires on a 10A MCB type C: 34 Number of luminaires on a 16A MCB type B: 33 Number of luminaires on a 16A MCB type C: 56 Optic: SM - Silver matt reflector UGR (70/50/20 & 4H-8H crosswise): 16 Optic main category: Reflector Main body material: Steel Body colour: WH - White Main body colour name: Traffic white Main body colour RAL code: RAL 9016 Length (mm): 595 Width (mm): 595 Height (mm): 32 Net weight (kg): 3.15 Termination: 3x2x2.5mm2 Push In Plug type: Linect 3 Repairable/Changeable Parts: LED module,Internal driver,External driver,Optic,Sensor Packaging material: Recycled cardboard Product mounting: Ceiling recessed Item gross weight (kg): 3.42

• EAN 7054131030576
• SAP 1200790606
• Code 83957641
