Glamox
I41-1500 5500 HF 840 TW PMMA
Part numberI41311100EAN / GTIN4741145282352HS code9405.11
Lighting & Electrical Accessories
Ceiling & Wall Luminaires
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description

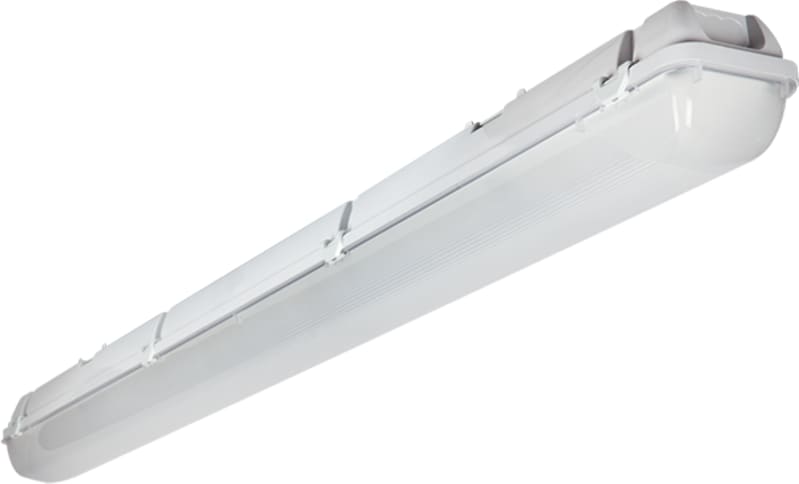

Glamox I41311100 I41-1500 LED 5500 HF 840 TW PMMA.
Technical Specifications
- Manufacturer part number (MPN)
- I41311100 EAN / GTIN: 4741145282352 Sales unit: pcs Product shape: Linear Leakage Current (mA): 0 Main Feed AC (V) Min: 220 Main Feed AC (V) Max: 240 Main Feed Frequency Min: 50 Main Feed Frequency Max: 60 Main Feed DC (V) Min: 198 Main Feed DC (V) Max: 250 Total Consumption (W): 34 Number Of Luminaire MCB 10B: 15 Number Of Luminaire MCB 10C: 25 Number Of Luminaire MCB 16B: 24 Number Of Luminaire MCB 16C: 40 minimum TA (ºC): -20 Maximum TA (ºC): 45 IK classification: 03 IP classification: 66 Light source: LED Lumen Out (lm): 5.640 Lumen Per Watt (lm/W): 166 Lamp colour temp (K): 4000 Colour Rendering Index: >80 MacAdam step: 3 Energy Class Light Source: B Type of LED Driver: HF: Non dimmable Number of Driver: 1 LED Lifetime L80B50 Ta25 (h): >100000 LED Lifetime L70B50 Max Ta (h): 100000 Luminous flux decline (LLMF) 50.000h Ta25: 0.90 Optic Name: OP - Opal diffuser in acrylic UGR (70/50/20 & 4H-8H crosswise): 25 Diffuser material: Acrylic Diffuser material Design: Frosted Optic main category: Diffuser Body material: Polyester Body Colour: GR - Grey Main Body Colour Name: Grey Length (mm): 1.573 Width (mm): 101 Height (mm): 101 Item Net Weight (kg): 2.58 Termination: 5x2x2.5mm2 Push In Through Wiring: 5x2.5 Number of Glands: 2 Repairable/Changeable Parts: LED module,Internal driver,Optic,Sensor Packaging material: Plastic,Cardboard,Recycled cardboard Product Mounting: Ceiling surface Item Gross Weight (kg): 2.80
Standards & Compliance
- HS Code
- 9405.11
Cross References
- EAN 4741145282352
- SAP 1200109099
- Code 81965727
Product Documentation
Document preview: I41-1500 5500 HF 840 TW PMMA (I41311100) — Specification sheet
