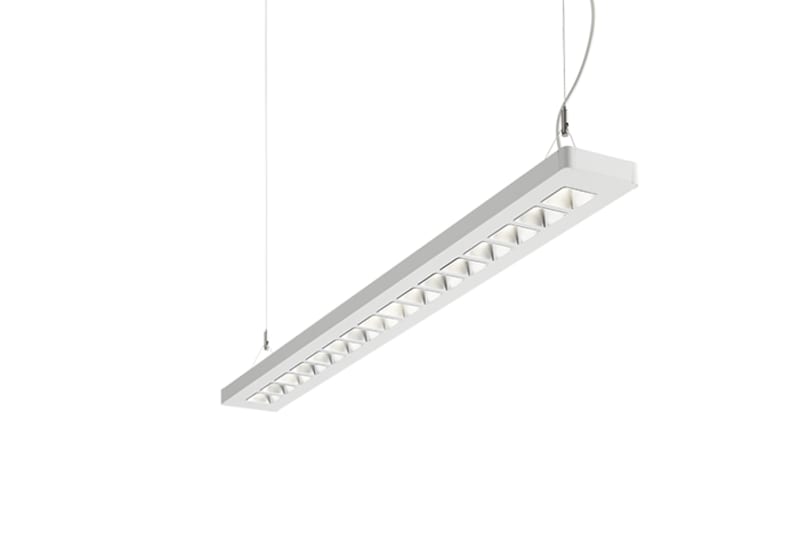

C77-P1200 WH 40/60 7000LM 830 SPR CSD SM

Glamox C77099730 C77-P125x1200 WH 40/60 7000 DIM 830 SPR-SEN CSD PRE CP2.5 SM.

Manufacturer part number (MPN)

C77099730 EAN / GTIN: 7054130997306 Sales unit: pcs Luminous flux: 7000 lm Product shape: Rectangular User Control: CSD Type of User Interface: Cord Switch User Control Short Text: CSD=Cord Switch Dimmable Certification: ENEC DALI 2 certified: Yes minimum TA (ºC): -25 Maximum TA (ºC): 35 IK classification: 02 IP classification: 20 Light source: LED Lumen Out (lm): 6.577 Lumen Per Watt (lm/W): 117 Lamp colour temp (K): 3000 Colour Rendering Index: >80 Light Distribution Up %: 40 Light Distribution Down %: 60 MacAdam step: 3 Energy Class Light Source: D minimum Dim Level (%): 1 Type of LED Driver: DIM: Dimming/CSD Number of Driver: 1 LED Lifetime L80B50 Ta25 (h): 100000 Driver lifetime at Ta=25, 10% failure rate (h): 100.000 Driver lifetime at Ta=45, 10% failure rate (h): 50.000 Luminous flux decline (LLMF) 50.000h Ta25: 0.96 Main Feed AC (V) Min: 220 Main Feed AC (V) Max: 240 Main Feed Frequency Min: 50 Main Feed Frequency Max: 60 Total Consumption (W): 56.21 Number Of Luminaire MCB 10B: 12 Number Of Luminaire MCB 10C: 21 Number Of Luminaire MCB 16C: 35 Sensor Type: PIR Sensor Cover Cross (°): 62 Sensor Cover Length (°): 50 Max mounting height: 3 Max Hold Time: 15min Min Hold Time: 5min Max number of children per sensor: 3 Optic Name: SM - Silver matt reflector UGR (70/50/20 & 4H-8H crosswise): 16 Reflector Colour: Silver Matt Optic main category: Reflector Body material: Steel Body Colour: WH - White Main Body Colour Name: Traffic white Main Body Colour RAL code: RAL 9016 Length (mm): 1.179 Width (mm): 125 Height (mm): 32 Item Net Weight (kg): 2.87 Termination: 3x2x2.5mm2 Push In Cable Cross section (mm²): 0.75 Cable End / Plug Name: Schuko Cable Length (m): 2.50 Cable material: PVC No of Leads: 3 Cable diameter variation max (mm): 7 Repairable/Changeable Parts: LED module,Internal driver,Optic,Sensor Packaging material: Recycled cardboard Product Mounting: Pendant Item Gross Weight (kg): 3.12

• EAN 7054130997306
• SAP 1201020669
• Code 84388989
