Glamox
Ortus-W WH E1/ST LO SIGN W/SSPA L8Y
Part numberORT142865EAN / GTIN5903531428655
Lighting & Electrical Accessories
Emergency Lighting
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description

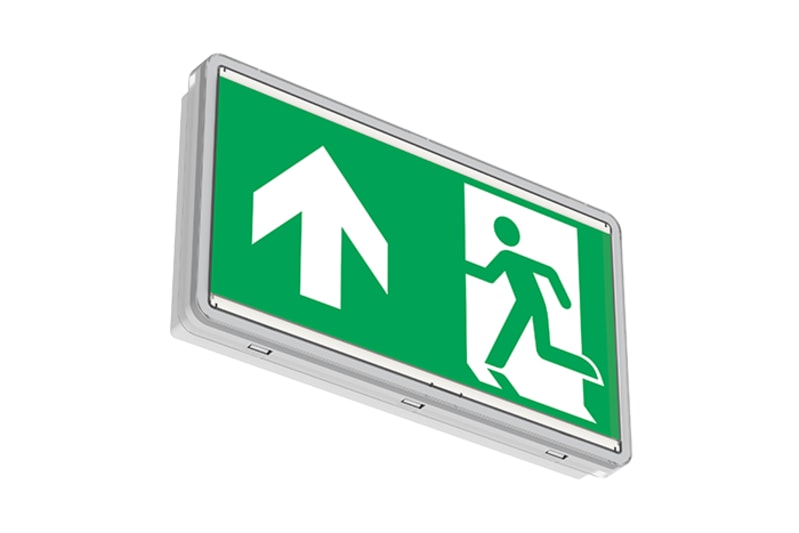

Glamox ORT142865 ORTUS-W WH E1/ST LO SIGN W/SSPA L8Y.
Technical Specifications
- Manufacturer part number (MPN)
- ORT142865 EAN / GTIN: 5903531428655 Sales unit: pcs Product shape: Rectangular Certification: CNBOP,HACCP+ minimum TA (ºC): 0 Maximum TA (ºC): 40 IK classification: 08 IP classification: 65 Light source: LED Lumen Out (lm): 2 Number Of Light Source: 1 Lamp colour temp (K): 5700 Colour Rendering Index: >80 MacAdam step: 3 Energy Class Light Source: C Light Source Included: Yes PstLM: Flicker (<): 0.08 SVM: Stroboscopic Visibility Measure (<): 0.03 Type of LED Driver: HF: Non dimmable LED Lifetime L70B50 Ta25 (h): 80000 LED Lifetime L80B50 Ta25 (h): 50000 Main Feed AC (V) Min: 220 Main Feed AC (V) Max: 240 Main Feed Frequency Min: 50 Main Feed Frequency Max: 60 Total Consumption (W): 2.70 IEC Protection Class: II Emergency Type: ST = Self test Duration (hrs): 1 Charging power consumption (Emg) (W): 1.50 Percentage Light Out In Emergency: 100 Reading distance sign (m): 25 Battery Type: LiFePO4 Battery Form: SideBySide Battery mAh: 1.500 Battery Voltage (V): 6.40 Battery Sparepart No: SP-MY-413-LI1500F Battery Termination: NS39 Body material: Polycarbonate Treatment housing: Reinforced Body Colour: WH - White Main Body Colour Name: White Length (mm): 265 Width (mm): 36 Height (mm): 155 Item Net Weight (kg): 0.50 Termination: 3x2.5mm2 Push In Cable Gland: M20-Polyamide Number of Glands: 2 Repairable/Changeable Parts: LED module,Internal driver,Optic Packaging material: Plastic,Recycled cardboard,Paper Product Mounting: Wall surface Item Gross Weight (kg): 0.54
Cross References
- EAN 5903531428655
- SAP 1201020673
- Code 84388976
Product Documentation
Document preview: Ortus-W WH E1/ST LO SIGN W/SSPA L8Y (ORT142865) — Specification sheet
