Glamox

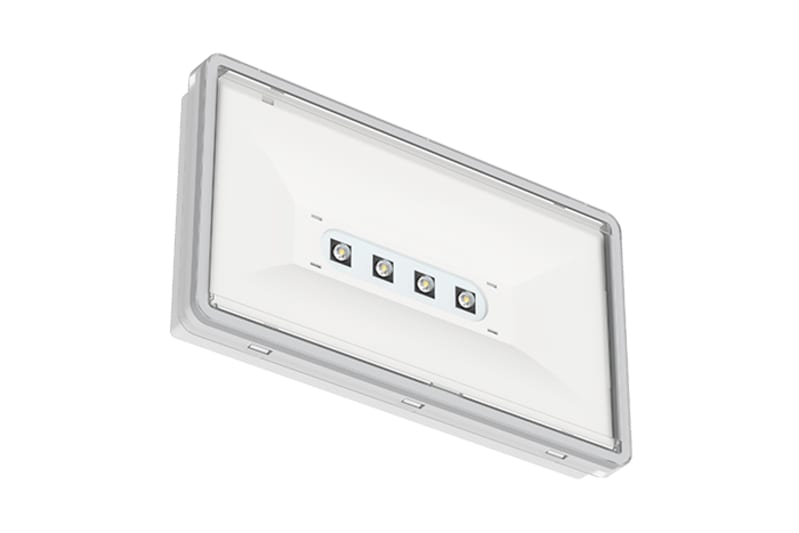

Ortus-S WH 400 E1/ST XWB L8Y
Part numberORT142857EAN / GTIN5903531428570
Lighting & Electrical Accessories
Emergency Lighting
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Glamox ORT142857 ORTUS-S WH 400 E1/ST XWB L8Y.
Technical Specifications
- Manufacturer part number (MPN)
- ORT142857 EAN / GTIN: 5903531428570 Sales unit: pcs Product shape: Rectangular Certification: CNBOP,HACCP+ minimum TA (ºC): 0 Maximum TA (ºC): 30 IK classification: 08 IP classification: 65 Light source: LED Lumen Out (lm): 410 Lumen Per Watt (lm/W): 46 Lamp colour temp (K): 5700 Colour Rendering Index: >70 Light Distribution Up %: 0 Light Distribution Down %: 100 MacAdam step: 3 Light Source Included: Yes PstLM: Flicker (<): 0.08 SVM: Stroboscopic Visibility Measure (<): 0.03 Type of LED Driver: HF: Non dimmable LED Lifetime L70B50 Ta25 (h): 80000 LED Lifetime L80B50 Ta25 (h): 50000 Main Feed AC (V) Min: 220 Main Feed AC (V) Max: 240 Main Feed Frequency Min: 50 Main Feed Frequency Max: 60 Total Consumption (W): 8.30 Total power consumption start (W): 9 IEC Protection Class: II Emergency Type: ST = Self test Duration (hrs): 1 Charging power consumption (Emg) (W): 1.50 Battery Type: LiFePO4 Battery Form: Stick Battery mAh: 3.000 Battery Voltage (V): 6.40 Battery Sparepart No: SP-MY-413-LI3000L Battery Termination: NS39 Optic Name: XWB - Extreme wide beam Body material: Polycarbonate Treatment housing: Reinforced Body Colour: WH - White Main Body Colour Name: White Length (mm): 265 Width (mm): 36 Height (mm): 155 Item Net Weight (kg): 0.63 Termination: 3x2.5mm2 Push In Cable Gland: M20-Polyamide Number of Glands: 2 Repairable/Changeable Parts: LED module,Internal driver,Optic Packaging material: Plastic,Recycled cardboard,Paper Product Mounting: Ceiling surface,Wall surface Item Gross Weight (kg): 0.68
Cross References
- EAN 5903531428570
- SAP 1201020672
- Code 84389022
Product Documentation
Document preview: Ortus-S WH 400 E1/ST XWB L8Y (ORT142857) — Specification sheet
