ULK 2X1500 (2X58W) 10000 DALI 830

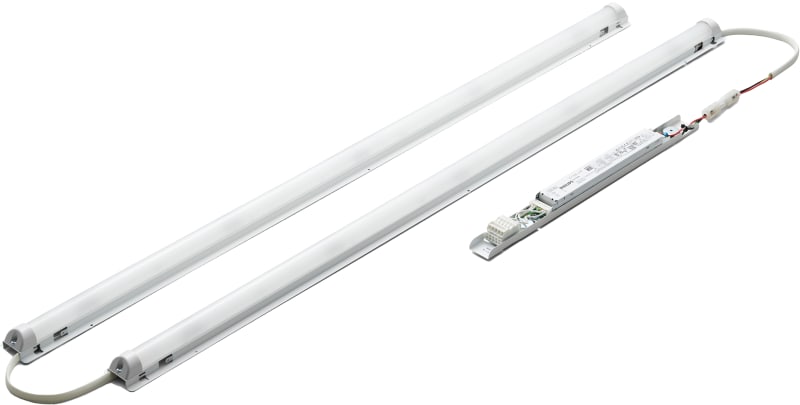

Glamox ULK106621 Universal LED-kit 2X1500 (2X58W) 10000 DALI 830.

Manufacturer part number (MPN)

ULK106621 EAN / GTIN: 7054131066216 Sales unit: pcs Product shape: Rectangular minimum ambient temperature (ºC): -25 Maximum ambient temperature (°C): 45 Light source: LED Lumen out (lm): 9.762 Lumen per Watt (lm/W): 139 Lamp colour temp (K): 3000 CRI Colour rendering index: >80 Light distribution up %: 10 Light distribution down %: 90 MacAdam step: 3 Energy class light source: C Type of LED Driver: DALI: Dimming Number of Driver: 1 L80 Median useful life LED Ta25 (hr): 100000 Driver lifetime at Ta=25, 10% failure rate (h): 100.000 Voltage from (V): 220 Maximum voltage (V): 240 minimum frequency (Hz): 50 Maximum frequency (Hz): 60 Total consumption (W): 65 Number of luminaires on a 10A MCB type B: 13 Number of luminaires on a 10A MCB type C: 21 Number of luminaires on a 16A MCB type C: 35 LMS Load no of drivers: 1 Main body material: Steel Body colour: WH - White Main body colour name: Traffic white Main body colour RAL code: RAL 9016 Length (mm): 1.430 Net weight (kg): 1.77 Termination: 5x2x2.5mm2 Push In Packaging material: Cardboard,Recycled cardboard Item gross weight (kg): 1.92

• EAN 7054131066216
• SAP 1201020684
• Code 84389021
