Glamox

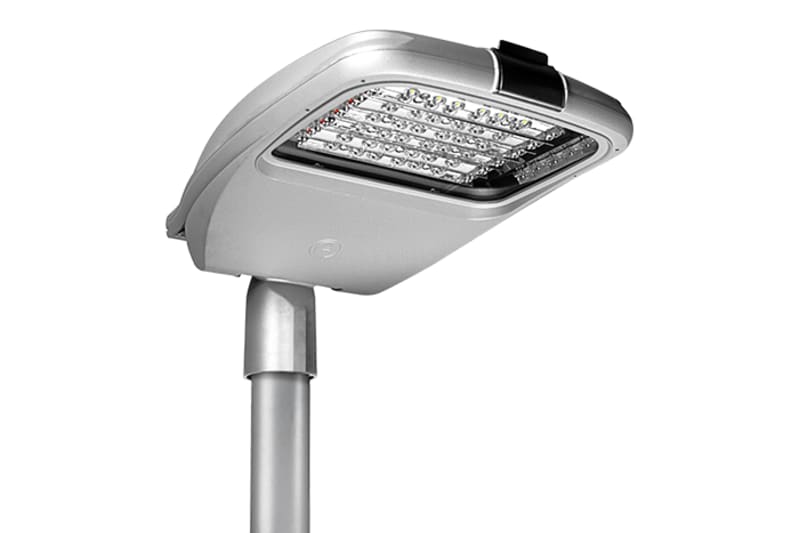

O52-380 15000 HF 740 WBA
Part number514045346EAN / GTIN8019455453462
Lighting & Electrical Accessories
Outdoor & Street Lighting
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Glamox 514045346 O52-380 LED 15000 HF 740 WBA.
Technical Specifications
- Manufacturer part number (MPN)
- 514045346 EAN / GTIN: 8019455453462 Sales unit: pcs Product shape: Special minimum TA (ºC): -30 Maximum TA (ºC): 40 IK classification: 09 IP classification: 66 Corrosion class: C5 Light source: LED Lumen Out (lm): 15.660 Lumen Per Watt (lm/W): 148 Lamp colour temp (K): 4000 Colour Rendering Index: >70 MacAdam step: 4 Type of LED Driver: HF: Non dimmable Number of Driver: 1 LED Lifetime L90B50 Ta25 (h): 100000 Luminous flux decline (LLMF) 50.000h Ta25: 0.95 Main Feed AC (V) Min: 220 Main Feed AC (V) Max: 240 Main Feed Frequency Min: 50 Main Feed Frequency Max: 60 Total Consumption (W): 106 Protection Against Surges: 10 Number Of Luminaire MCB 10B: 5 Number Of Luminaire MCB 10C: 8 Number Of Luminaire MCB 16C: 13 Optic Name: WBA - Wide beam asymmetric Diffuser material: Tempered glass Diffuser material Design: Clear Body material: Aluminium Body Colour: GR - Grey Main Body Colour Name: Silver grey Length (mm): 578 Width (mm): 380 Height (mm): 271 Item Net Weight (kg): 8.73 Product Mounting: Pole,Wall surface Item Gross Weight (kg): 9.49
Cross References
- EAN 8019455453462
- SAP 1200927479
- Code 84212818
Product Documentation
Document preview: O52-380 15000 HF 740 WBA (514045346) — Specification sheet
More from Glamox
Glamox
D70-R195 AVL.PLATE. Plate
D70000003
Glamox
Glamox D50-175 WH 2500 lm HF 3000 K CRI>80 Wide-Beam Recessed LED Downlight CG2144052
Glamox
Glamox D50-175 WH 2500 lm HF 4000 K CRI>80 Wide-Beam Recessed LED Downlight CG2144055
Glamox
Glamox D50-175 WH 1600 HF 840 CP2.5 WB Recessed LED Downlight
CG2144049
Glamox
C77-R600X600 WH 5000 WZ 830 LI 4XSM
C77103315
Glamox
LMS DALI2 SM Cross NFC WH
B25002004
Glamox
LED Flood Light (EXD),FX60 2 Module 80W
FX60202000
Glamox
C77-R300X1200 WH 5000 WR
C77102491
Catalogue entry last verified: 2026-09-29. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy 514045346?
- 514045346 can be ordered from cballast.com as a Glamox catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this Glamox product?
- The manufacturer part number is 514045346.
- Who manufactures 514045346?
- 514045346 is a Glamox product in the Lighting & Electrical Accessories range.
- Is a datasheet available for 514045346?
- Yes — the 514045346 datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for 514045346?
- The minimum order quantity is 1.
- Is 514045346 available?
- Yes — 514045346 is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
- How do I get a price for 514045346?
- Request a quotation with the quote button on this page or by email to sales@cballast.com — we reply within 24 hours with price, availability and lead time.
