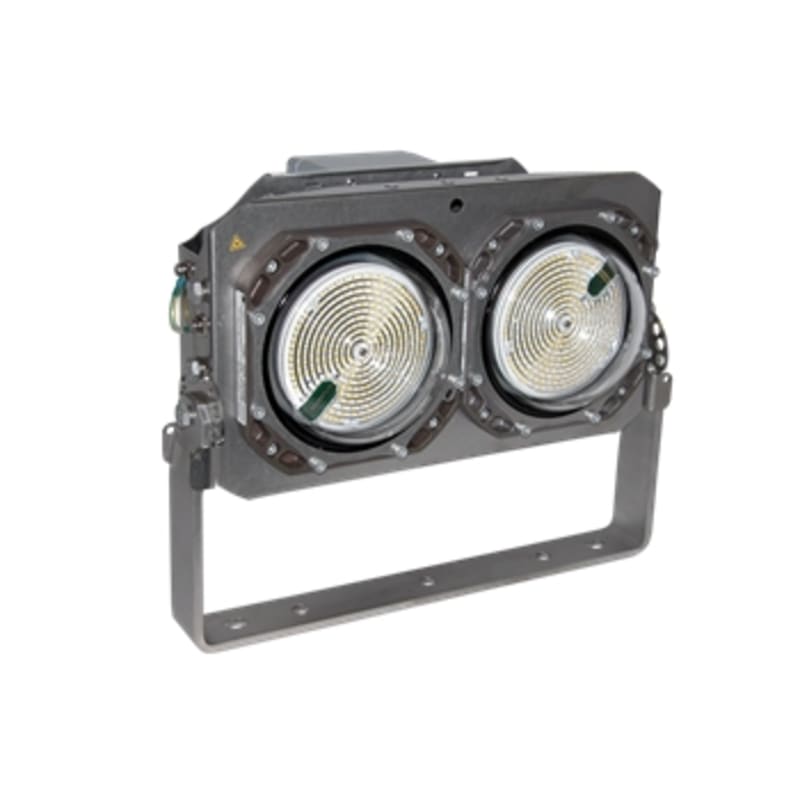

LED Flood Light (EXD),FX60 2 Module 80W

Glamox FX60202000 LAMP: LED FLOOD LIGHT (EXD), TYPE:FX60 2 MODULE (80W),GLAMOX FX60 9000 850 230 M25 WB FG.

Manufacturer part number (MPN)

FX60202000 EAN / GTIN: 4036538549755 HS code: 8539.52 Sales unit: pcs Power: 80 W Mains current: 0.36 EMC Category: EMC1 : EMC B – IEC 60533 Bridge and Open deck minimum Voltage -10% (VAC): 230 minimum frequency -5% (Hz): 50 Maximum frequency +5% (Hz): 60 Total consumption (W): 80 Number of luminaires on a 10A MCB type B: 22 Number of luminaires on a 16A MCB type B: 35 Output angle (°): 120 Optic: WB - Wide beam Certification: ATEX,5 year warranty,Ex Zone 1,IECEx Marine Approved: Yes Ignition Class: T4135° Atex code: II 2G EX zone: Ex zone 1,Ex zone 2,Ex zone 21,Ex zone 22 minimum ambient temperature (ºC): -50 Maximum ambient temperature (°C): 55 IK classification: 10 IP classification: 66/67 Corrosion class: C5-M Light source: LED Lumen out (lm): 8.458 Lumen per Watt (lm/W): 108 Lamp colour temp (K): 5000 CRI Colour rendering index: >80 MacAdam step: 3 Type of LED Driver: IC No Of Ballast: 2 Main body material: Seawater-resistant aluminium Body colour: Unpainted Detail material: Steel material Junction Box: Glass Reinforced Polyester Length (mm): 444 Width (mm): 354 Height (mm): 220 Net weight (kg): 14.57 Maximum core diameter: 6 mm2 minimum core diameter: 0.5 mm2 Number of cable glands: 2 Max cable diameter (mm): 17 Min cable diameter (mm): 10 Item gross weight (kg): 15.84 Min storage temp: -60 Max storage temp: 80

HS Code

8539.52

• EAN 4036538549755
• SAP 1200597566
• Code 83002219
