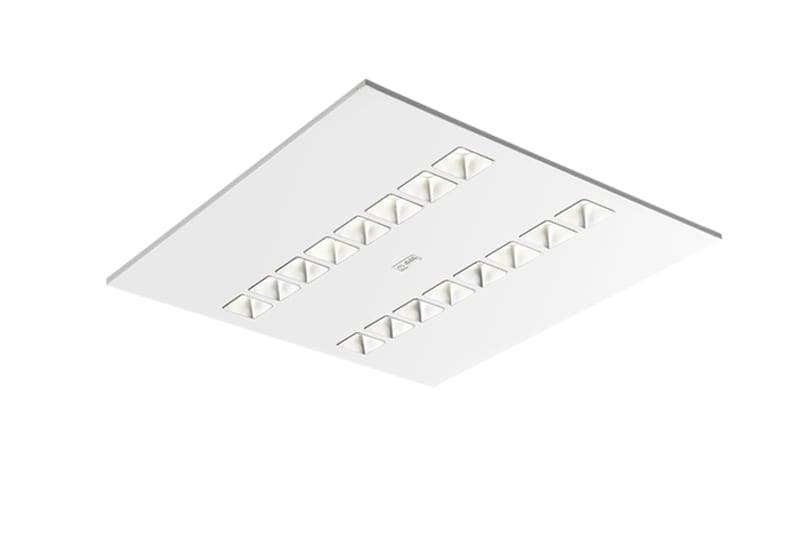

C77-R600X600 WH4000 WZ830MPW-SEN LI 2XSM

Glamox C77103330 C77-R600x600 WH 4000 WZ 830 MPW-SEN LI 2xSM.

Manufacturer part number (MPN)

C77103330 EAN / GTIN: 7054131033300 Sales unit: pcs Product shape: Rectangular LMS Wireless solution: ZigBee DALI 2 certified: Yes minimum ambient temperature (ºC): -25 Maximum ambient temperature (°C): 45 IK classification: 08 IP classification: 40 from underneath \ 20 from above Light source: LED Lumen out (lm): 4.032 Lumen per Watt (lm/W): 130 Lamp colour temp (K): 3000 CRI Colour rendering index: >80 MacAdam step: 3 Energy class light source: D Type of LED Driver: WZ: Wireless Zigbee Number of Driver: 1 L80 Median useful life LED Ta25 (hr): 100000 Driver lifetime at Ta=25, 10% failure rate (h): 100.000 Driver lifetime at Ta=45, 10% failure rate (h): 50.000 Luminous flux decline (LLMF) 50.000h Ta25: 0.96 Voltage from (V): 220 Maximum voltage (V): 240 minimum frequency (Hz): 50 Maximum frequency (Hz): 60 Total consumption (W): 31 Number of luminaires on a 10A MCB type B: 14 Number of luminaires on a 10A MCB type C: 23 Number of luminaires on a 16A MCB type B: 24 Number of luminaires on a 16A MCB type C: 38 Sensor type: PIR+Daylight harvesting (CLS) Pre-set functionality daylight sensor: CLS Light sensor max lux: 999 Light sensor min lux: 0 Detection angle crosswise (°): 62 Detection angle lengthwise (°): 84 Sensor cover cross presence: 45 Sensor cover length presence: 62 Max mounting height / detection range (metre): 3 Sensor max hold time: Programmable Sensor min hold time: 5 sec Optic: SM - Silver matt reflector UGR (70/50/20 & 4H-8H crosswise): 19 Optic main category: Reflector Main body material: Steel Body colour: WH - White Main body colour name: Traffic white Main body colour RAL code: RAL 9016 Length (mm): 595 Width (mm): 595 Height (mm): 32 Net weight (kg): 4.03 Termination: 3x2x2.5mm2 Push In Plug type: Linect Repairable/Changeable Parts: LED module,Internal driver,External driver,Optic,Sensor Packaging material: Recycled cardboard Product mounting: Ceiling recessed Item gross weight (kg): 4.38

• EAN 7054131033300
• SAP 1200790616
• Code 83957592
