RLX D 240WAC1D OBH 3QEAABK

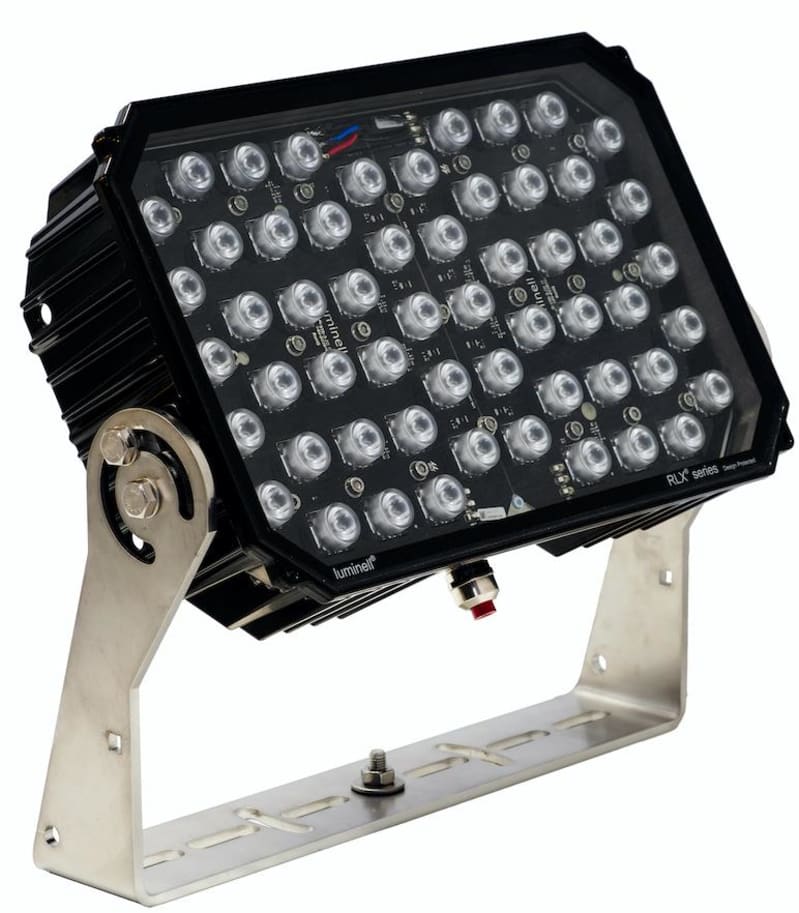

Glamox LN1002652 Luminell RLX D Floodlight 240W 230VAC Oval beam H, 14kg, dimmable, prepared for Luminell gel kit.

Manufacturer part number (MPN)

LN1002652 EAN / GTIN: 7072720003121 HS code: 8543.70 Sales unit: pcs EPD (Environmental Product Declaration): Yes Remarks: 3 blinds: 1xM20-Nickel plated brass, 2xM25-Nickel plated brass EMC Category: EMC1 : EMC B – IEC 60533 Bridge and Open deck minimum Voltage -10% (VAC): 100 Maximum voltage +10% (VAC): 277 minimum frequency -5% (Hz): 50 Maximum frequency +5% (Hz): 60 Main Feed DC (V) Min: 100 Main Feed DC (V) Max: 300 Total consumption (W): 240 Inrush current (A): 200 Number of luminaires on a 10A MCB type B: 4 Number of luminaires on a 10A MCB type C: 7 Number of luminaires on a 16A MCB type B: 6 Number of luminaires on a 16A MCB type C: 10 Power factor: 0.98 Certification: 5 year warranty,DNV,UL,UL 1598 Wet Locations,UL1598/1598A Marine Listed Marine Approved: Yes minimum ambient temperature (ºC): -40 Maximum ambient temperature (°C): 55 IP classification: 66/67 Corrosion class: C5-M Light source: LED Lumen out (lm): 25.744 Number of lamps: 1 Lumen per Watt (lm/W): 107 Lamp colour temp (K): 5000 CRI Colour rendering index: >70 MacAdam step: 3 Light source included: Yes Dimmable: Yes Beam angle (°): 45x12 Optic: OBH - Oval Beam horizontal material of diffuser: Glass Type of LED Driver: HFDa: Dimming Analogue 1-10V Number of Driver: 1 L70 Median useful life LED Ta45 (hr): 100000 Main body material: Seawater-resistant aluminium Surface treatment: Anodized Body colour: BL - Black Main body colour name: Graphite black Main body colour surface: Powder coated Main body colour RAL code: RAL 9011 Mounting bracket material: Stainless steel AISI 316 Length (mm): 444 Width (mm): 143 Height (mm): 397 Net weight (kg): 14.20 Termination: 4x6+2x16+8x2.5mm2 Spring Cage Maximum core diameter: 6 mm2 minimum core diameter: 0.5 mm2 Cable gland: M20-Nickel plated brass Number of cable glands: 1 Blind plugs: M20-Nickel plated brass,M25-Nickel plated brass Number of blind plugs: 3 Max cable diameter (mm): 13 Min cable diameter (mm): 7 Total Recyclable material %: 58.69 Actual Recycled material - EN15804 %: 15.98 Item gross weight (kg): 15.43 Min storage temp: -40 Max storage temp: 55

HS Code

8543.70

• EAN 7072720003121
• SAP 1200575725
• Code 82939881
