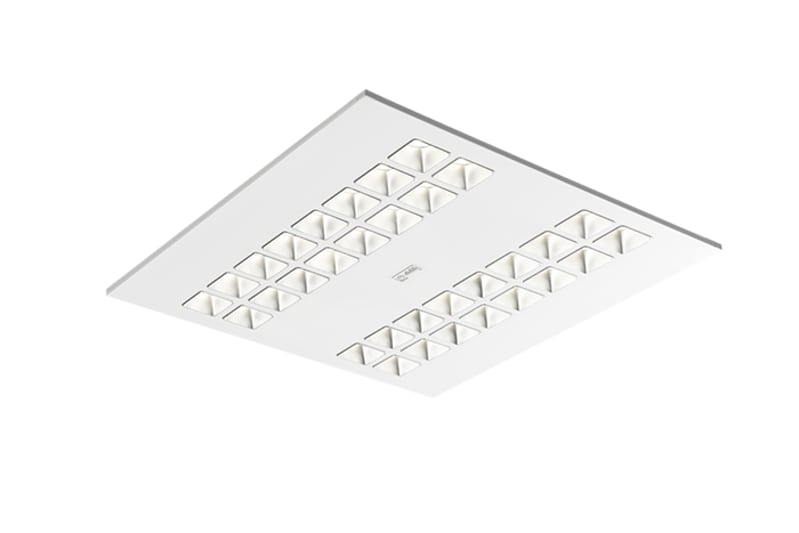

C77-R600X600 WH 5000 WZ 830 LI 4XSM

Glamox C77103315 C77-R600x600 WH 5000 WZ 830 MPW-SEN LI 4xSM.

Manufacturer part number (MPN)

C77103315 EAN / GTIN: 7054131033157 Sales unit: pcs Product shape: Rectangular LMS Wireless solution: ZigBee DALI 2 certified: Yes minimum TA (ºC): -25 Maximum TA (ºC): 40 IK classification: 08 IP classification: 40 from underneath \ 20 from above Light source: LED Lumen Out (lm): 4.871 Lumen Per Watt (lm/W): 131 Lamp colour temp (K): 3000 Colour Rendering Index: >80 MacAdam step: 3 Energy Class Light Source: D Type of LED Driver: WZ: Wireless Zigbee Number of Driver: 1 LED Lifetime L80B50 Ta25 (h): 100000 Driver lifetime at Ta=25, 10% failure rate (h): 100.000 Driver lifetime at Ta=45, 10% failure rate (h): 50.000 Luminous flux decline (LLMF) 50.000h Ta25: 0.96 Main Feed AC (V) Min: 220 Main Feed AC (V) Max: 240 Main Feed Frequency Min: 50 Main Feed Frequency Max: 60 Total Consumption (W): 35 Number Of Luminaire MCB 10B: 12 Number Of Luminaire MCB 10C: 21 Number Of Luminaire MCB 16C: 35 Sensor Type: PIR+Daylight harvesting (CLS) Pre-set functionality daylight sensor: CLS Light Sensor Max Lux: 999 Light Sensor Min Lux: 0 Sensor Cover Cross (°): 62 Sensor Cover Length (°): 84 Sensor Cover Cross Presence: 45 Max mounting height: 3 Max Hold Time: Programmable Min Hold Time: 5 sec Optic Name: SM - Silver matt reflector UGR (70/50/20 & 4H-8H crosswise): 17 Optic main category: Reflector Body material: Steel Body Colour: WH - White Main Body Colour Name: Traffic white Main Body Colour RAL code: RAL 9016 Length (mm): 595 Width (mm): 595 Height (mm): 32 Item Net Weight (kg): 4.18 Termination: 3x2x2.5mm2 Push In Plug Type: Linect Repairable/Changeable Parts: LED module,Internal driver,External driver,Optic,Sensor Packaging material: Recycled cardboard Product Mounting: Ceiling recessed Item Gross Weight (kg): 4.54

• EAN 7054131033157
• SAP 1200790613
• Code 83957596
