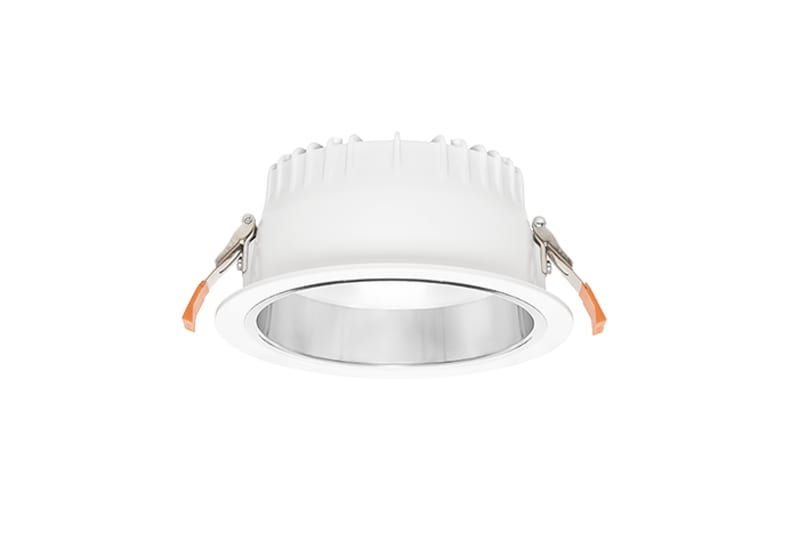

Glamox D50-175 WH 2500 lm HF 3000 K CRI>80 Wide-Beam Recessed LED Downlight CG2144052

Glamox CG2144052 is a round recessed LED downlight from the D50-175 range for commercial and institutional interiors such as offices, schools and retail. It delivers 2,500 lm at 3000 K with CRI>80, 139 lm/W efficacy and a wide-beam optic through a frosted diffuser and silver aluminium reflector. Non-dimmable HF driver, integral LED not exchangeable, protection IP44 from below and IP20 from above, IK06. Supplied per piece.

Manufacturer part number (MPN)

CG2144052 EAN / GTIN: 5903531440527 HS code: 8543.70 Sales unit: pcs Product shape: Round EPD (Environmental Product Declaration): Yes Certification: HACCP+ minimum TA (ºC): 0 Maximum TA (ºC): 25 IK classification: 06 IP classification: 44 from underneath \ 20 from above Light source: LED Lumen Out (lm): 2.500 Number Of Light Source: 1 Lumen Per Watt (lm/W): 139 Lamp colour temp (K): 3000 Colour Rendering Index: >80 Light Distribution Up %: 0 Light Distribution Down %: 100 MacAdam step: 3 Energy Class Light Source: C Light Source Included: Yes Dimmable: No Type of LED Driver: HF: Non dimmable Number of Driver: 1 LED Lifetime L70B50 Ta25 (h): >100000 LED Lifetime L80B50 Ta25 (h): 100000 LED Lifetime L90B50 Ta25 (h): 50000 Driver lifetime at Ta=25, 10% failure rate (h): 50.000 Luminous flux decline (LLMF) 50.000h Ta25: 0.90 Main Feed AC (V) Min: 220 Main Feed AC (V) Max: 240 Main Feed Frequency Min: 50 Main Feed Frequency Max: 60 Total Consumption (W): 18 IEC Protection Class: II Number Of Luminaire MCB 10B: 25 Number Of Luminaire MCB 10C: 41 Number Of Luminaire MCB 16B: 40 Number Of Luminaire MCB 16C: 74 Number Of Luminaire MCB 20C: 91 Number Of Luminaire MCB 25C: 114 Optic Name: WB - Wide beam UGR (70/50/20 & 4H-8H crosswise): 23 Diffuser material Design: Frosted Reflector Colour: Silver Reflector material: Aluminium Optic main category: Reflector Main Body material Production Method: Die-casted Body Colour: WH - White Main Body Colour Name: Traffic white Main Body Colour RAL code: RAL 9016 Height (mm): 90 Diameter (mm): 190 Cut out (mm): 175 Item Net Weight (kg): 0.83 minimum Height Above Ceiling: 150 Cut out diameter: 175 Cable Cross section (mm²): 1 Cable End / Plug Name: Schuko Cable Length (m): 2.50 Cable material: PVC No of Leads: 2 Cradle To Gate A1-A3 (Kg C02-eq): 14.95 Total Recyclable material %: 58.28 Actual Recycled material - EN15804 %: 80.65 Repairable/Changeable Parts: LED module,External driver,Optic,Sensor Packaging material: Plastic,Recycled cardboard,Paper Product Mounting: Ceiling recessed Item Gross Weight (kg): 0.90

HS Code

8543.70

• EAN 5903531440527
• SAP 1200713188
• Code 83819181
