Glamox

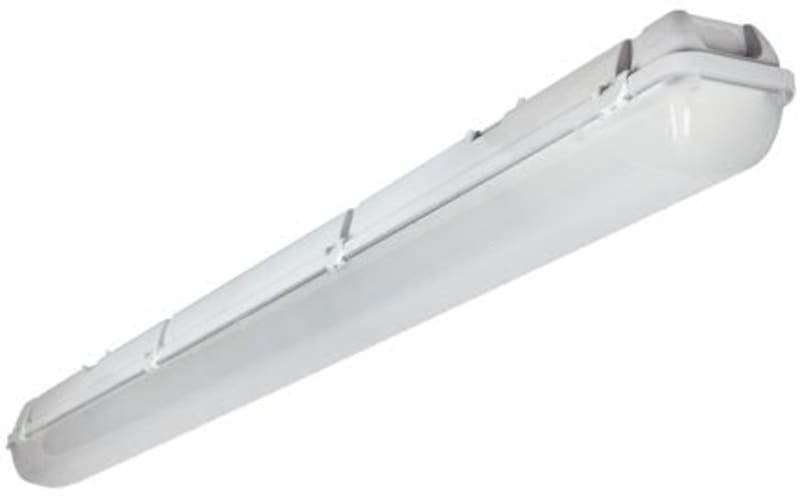

I40-1200 LED4400 HF840 TWPC
Part numberI40L42224EAN / GTIN4741145201766HS code9405.41
Lighting & Electrical Accessories
Ceiling & Wall Luminaires
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Glamox I40L42224 I40-1200 LED 4400 HF 840 TWPC.
Technical Specifications
- Manufacturer part number (MPN)
- I40L42224 EAN / GTIN: 4741145201766 Sales unit: pcs Product shape: Linear EPD (Environmental Product Declaration): Yes Certification: ENEC Leakage Current (mA): 0 Main Feed AC (V) Min: 220 Main Feed AC (V) Max: 240 Main Feed Frequency Min: 50 Main Feed Frequency Max: 60 Total Consumption (W): 29 IEC Protection Class: II Number Of Luminaire MCB 10B: 20 Number Of Luminaire MCB 10C: 35 Number Of Luminaire MCB 16B: 33 Number Of Luminaire MCB 16C: 56 minimum TA (ºC): -20 Maximum TA (ºC): 40 IK classification: 08 IP classification: 66 Light source: LED Lumen Out (lm): 4.755 Lumen Per Watt (lm/W): 164 Lamp colour temp (K): 4000 Colour Rendering Index: >80 MacAdam step: 3 Energy Class Light Source: C Type of LED Driver: HF: Non dimmable Number of Driver: 1 LED Lifetime L80B50 Ta25 (h): >100000 LED Lifetime L80B50 Max Ta (h): 100000 Luminous flux decline (LLMF) 50.000h Ta25: 0.90 Optic Name: OP/PC - Opal diffuser in polycarbonate UGR (70/50/20 & 4H-8H crosswise): 25 Diffuser material: Polycarbonate Diffuser material Design: Opal Optic main category: Diffuser Body Colour: GR - Grey Main Body Colour Name: Grey Length (mm): 1.277 Width (mm): 101 Height (mm): 101 Item Net Weight (kg): 2.04 Termination: 5x2x2.5mm2 Push In Through Wiring: 5x2.5 Number of Glands: 2 Cradle To Gate A1-A3 (Kg C02-eq): 30.82 Total Recyclable material %: 28.84 Actual Recycled material - EN15804 %: 11.59 Repairable/Changeable Parts: LED module,Internal driver,Optic,Sensor Packaging material: Plastic,Cardboard,Recycled cardboard Product Mounting: Ceiling surface Item Gross Weight (kg): 2.22 Country of origin: Norway
Standards & Compliance
- HS Code
- 9405.41
Cross References
- EAN 4741145201766
- SAP 1200109078
- Code 81965725
Product Documentation
Document preview: I40-1200 LED4400 HF840 TWPC (I40L42224) — Specification sheet
More from Glamox
Glamox
MIR LED KIT 6500HF 840
MIR078942
Glamox
I40-600 LED2200H 840 TW PC
I40L22224
Glamox
Glamox Heating 3001 TPA15 1500W HV 9010
765152030
Glamox
C70-P 5800 DALI 830 CSD MP
C70226591
Glamox
MAXS67 1200 LED 4500 850 IC EB3 Emergency LIGHTING.
MAX101182
Glamox
I10-1500 LED 12000 HF 840 MB
I10093713
Glamox
MIRZ67-1500 G2 7500 HF 840 TW M20 FR/PC
MIR102177
Glamox
I40-1500 8500 HF 840 TW PC
I40L60002
Catalogue entry last verified: 2026-09-30. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy I40L42224?
- I40L42224 can be ordered from cballast.com as a Glamox catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this Glamox product?
- The manufacturer part number is I40L42224.
- What is the HS code for I40L42224?
- The customs tariff (HS) code for I40L42224 is 9405.41.
- Who manufactures I40L42224?
- I40L42224 is a Glamox product in the Lighting & Electrical Accessories range.
- Is a datasheet available for I40L42224?
- Yes — the I40L42224 datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for I40L42224?
- The minimum order quantity is 1.
- Is I40L42224 available?
- Yes — I40L42224 is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
