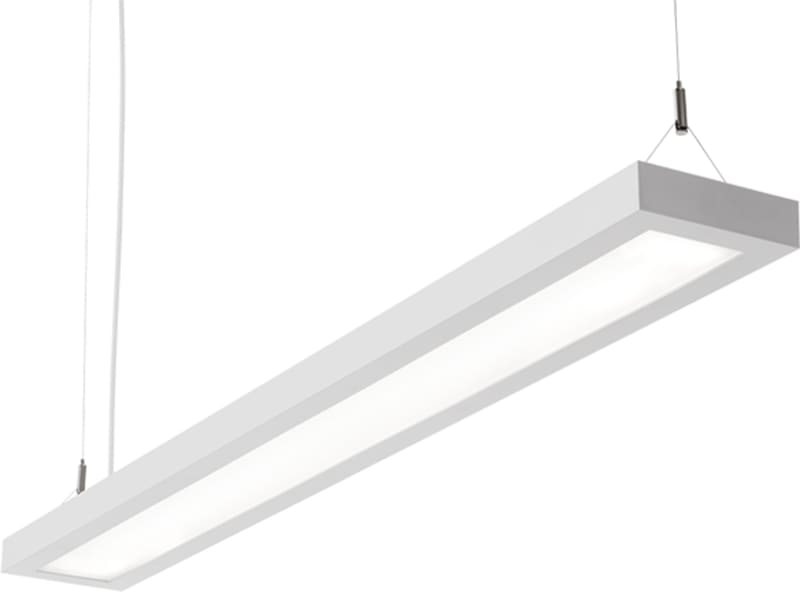

C70-P 5800 DALI 830 CSD MP

Glamox C70226591 C70-P1280 40/60 LED 5800 DALI 830 CSD PRE CP2 MP.

Manufacturer part number (MPN)

C70226591

EAN / GTIN

7332402265910

Sales unit

pcs

Product shape

Rectangular

EPD (Environmental Product Declaration)

Yes

User Control

CSD

Type of User Interface

Cord Switch

User Control Short Text

CSD=Cord Switch Dimmable

Certification

ENEC

Leakage Current (mA)

0.23

Main Feed AC (V) Min

220

Main Feed AC (V) Max

240

Main Feed Frequency Min

50

Main Feed Frequency Max

60

Total Consumption (W)

45

Number Of Luminaire MCB 10B

12

Number Of Luminaire MCB 10C

19

Number Of Luminaire MCB 16C

31

Maximum TA (ºC)

30

IP classification

20

Light source

LED

Lumen Out (lm)

5.663

Lumen Per Watt (lm/W)

126

Lamp colour temp (K)

3000

Colour Rendering Index

>80

Light Distribution Up %

40

Light Distribution Down %

60

MacAdam step

3

Energy Class Light Source

D

Type of LED Driver

DIM: Dimming/CSD

Number of Driver

1

LED Lifetime L80B50 Ta25 (h)

100000

LED Lifetime L90B50 Ta25 (h)

50000

Driver lifetime at Ta=25, 10% failure rate (h)

100.000

Luminous flux decline (LLMF) 50.000h Ta25

0.90

Optic Name

MP - Micro prismatic diffuser

UGR (70/50/20 & 4H-8H crosswise)

18

Diffuser Material

Acrylic

Diffuser Material Design

Prismatic

Optic main category

Diffuser

Body Material

Steel

Body Colour

WH - White

Main Body Colour Name

White

Detail Material

Polycarbonate

Length (mm)

1.280

Width (mm)

154

Height (mm)

40

Item Net Weight (kg)

4.16

Cable Cross section (mm²)

0.75

Cable End / Plug Name

Schuko

Cable Length (m)

2

Cable Material

PVC

No of Leads

3

Cable diameter variation max (mm)

7

Mounting Accessories

PRE-P

Product Mounting

Pendant

Cradle To Gate A1-A3 (Kg C02-eq)

41.03

Total Recyclable Material %

60.34

Actual Recycled Material - EN15804 %

31.37

Repairable/Changeable Parts

LED module,Internal driver,Optic,Sensor

Packaging Material

Plastic,Cardboard,Recycled cardboard

Item Gross Weight (kg)

4.52

Lamp type

LED not exchangeable

Housing material

Plastic

Housing colour

White

Material cover

Plastic, structured

Type of grid

None

Voltage type

AC

Type of control gear

LED operating device current-controlled

No dim function

No

Light distributor

Diffuser lens/optic/panel

Reflector

None

Light distribution

Symmetric

Colour consistency (McAdam ellipse)

SDCM3

Light outlet

Direct/indirect

Energy efficiency class of the built-in lamp

A++, A+, A (LED)

Rated lifetime L70/B50 at 25 °C

100000 h

Degree of protection (IP)

IP20

Impact strength

IK00

Protection class according to IEC 61140

I

Max. system power

45 W

Rated luminous flux according to IEC 62722-2-1

5663 lm

Colour of light

White

Colour rendering index CRI

80-89

Unified Glare Ratio (UGR)

18

Colour of light adjustable

No

Luminous flux adjustable

No

Beam angle adjustable

No

Height/depth

40 mm

With suspension

Yes

Type of wiring

Ending

Number of poles

3

Conductor cross section

0.75 mm²

Country of origin

Norway

HS Code

9405.41

• EAN 7332402265910
• SAP 1200109095
• Code 81965717
