Glamox

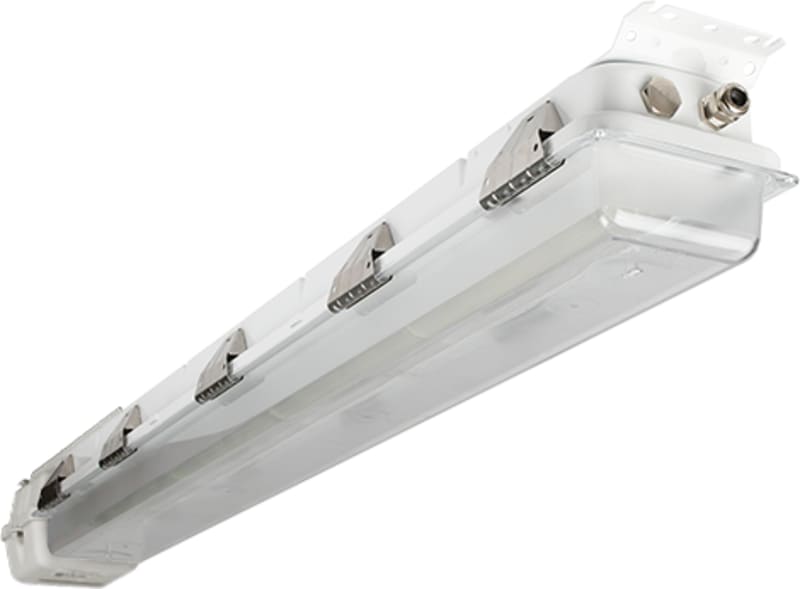

MAXS67 1200 LED 4500 850 IC EB3 Emergency LIGHTING.
Part numberMAX101182EAN / GTIN7054131011827HS code8543.70
Hazardous Area Equipment
ATEX Lighting
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Glamox MAX101182 Ex LED luminaire for Zone 1 with high quality and long service life. 3 t. emergency lighting.
Technical Specifications
- Manufacturer part number (MPN)
- MAX101182
- EAN / GTIN
- 7054131011827
- HS code
- 8543.70
- Sales unit
- pcs
- Lifecycle status
- Phased out
- Mounting method
- Ceiling mounting
- Adjustable
- No
- Lamp type
- LED not exchangeable
- With light source
- Yes
- Lamp holder
- None
- Housing material
- Stainless steel
- Material cover
- Plastic, transparent
- Voltage type
- AC
- Nominal voltage
- 230 V
- With control gear
- No
- Light distributor
- Diffuser lens/optic/panel
- Beam angle
- 41-80° - Wide beam
- Energy efficiency class of the built-in lamp
- A++, A+, A (LED)
- Rated lifetime L70/B50 at 25 °C
- 110000 h
- Degree of protection (IP)
- IP66
- Impact strength
- IK10
- Protection class according to IEC 61140
- I
- For Ex-zone gas
- 1, 2
- For Ex-zone dust
- 21, 22
- Rated ambient temperature according to IEC 62722-2-1
- -20–55 °C
- Max. system power
- 47 W
- Rated luminous flux according to IEC 62722-2-1
- 4100 lm
- Colour of light
- White
- Colour temperature
- 5000 K
- Width
- 165 mm
- Height/depth
- 115 mm
- Length
- 1468 mm
- Type of wiring
- Loop-through wiring included
- Number of poles
- 6
- Conductor cross section
- 6 mm²
- Connection type
- Screwed terminal
- Country of origin
- Norway
Standards & Compliance
- HS Code
- 8543.70
Cross References
- EAN 7054131011827
- SAP 1200057142
- Code 81907709
Product Documentation
Document preview: MAXS67 1200 LED 4500 850 IC EB3 Emergency LIGHTING. (MAX101182) — Specification sheet
