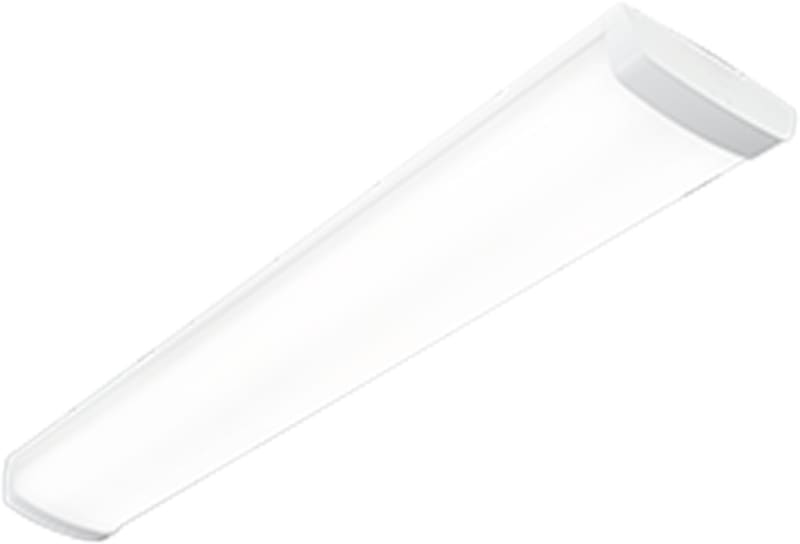

I60 4600 HF 830 OP (I60087209)

Glamox I60087209 i60 1200 LED 4600 HF 830 OP.

Manufacturer part number (MPN)

I60087209 EAN / GTIN: 7054130872092 Sales unit: pcs Product shape: Linear EPD (Environmental Product Declaration): Yes Leakage Current (mA): 0.30 Main Feed AC (V) Min: 220 Main Feed AC (V) Max: 240 Main Feed Frequency Min: 50 Main Feed Frequency Max: 60 Main Feed DC (V) Min: 186 Main Feed DC (V) Max: 250 Total Consumption (W): 37 Number Of Luminaire MCB 10B: 15 Number Of Luminaire MCB 10C: 24 Number Of Luminaire MCB 16C: 38 minimum TA (ºC): -25 Maximum TA (ºC): 45 IK classification: 07 IP classification: 44 Light source: LED Lumen Out (lm): 4.706 Lumen Per Watt (lm/W): 138 Lamp colour temp (K): 3000 Colour Rendering Index: >80 Light Distribution Up %: 5 Light Distribution Down %: 95 MacAdam step: 3 Energy Class Light Source: C Type of LED Driver: HF: Non dimmable Number of Driver: 1 LED Lifetime L80B50 Ta25 (h): >100000 LED Lifetime L80B50 Max Ta (h): 100000 Driver lifetime at Ta=25, 10% failure rate (h): 100.000 Driver lifetime at Ta=45, 10% failure rate (h): 50.000 Luminous flux decline (LLMF) 50.000h Ta25: 0.90 UGR (70/50/20 & 4H-8H crosswise): 24 Diffuser material: Polycarbonate Diffuser material Design: Opal Optic main category: Diffuser Body material: Steel Treatment housing: Galvanised Body Colour: WH - White Main Body Colour Name: White Length (mm): 1.222 Width (mm): 165 Height (mm): 57 Item Net Weight (kg): 3.09 Termination: 5x2x2.5mm2 Push In Cradle To Gate A1-A3 (Kg C02-eq): 36.58 Total Recyclable material %: 48.89 Actual Recycled material - EN15804 %: 47.44 Repairable/Changeable Parts: Internal driver,Optic,Sensor,End caps Packaging material: Cardboard,Recycled cardboard Product Mounting: Ceiling surface,Wall surface Item Gross Weight (kg): 3.36 Country of origin: Norway

HS Code

9405.41

• EAN 7054130872092
• SAP 1200109092
• Code 81965919
