Glamox

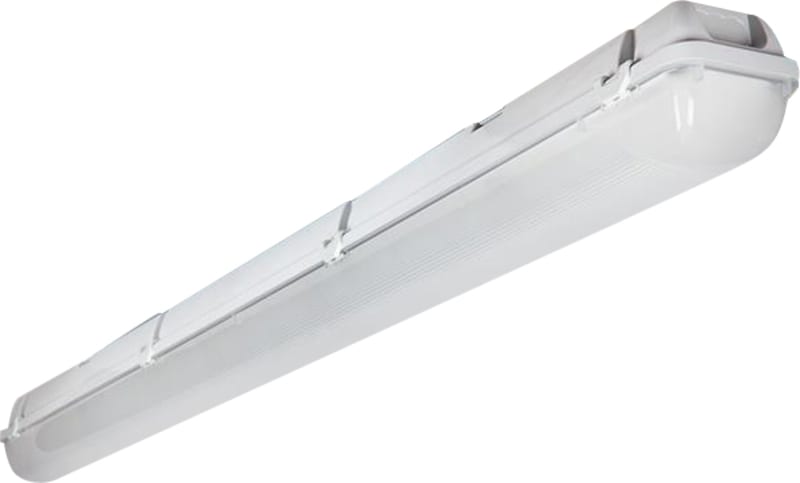

I40-1500 8500 HF 840 TW PC
Part numberI40L60002EAN / GTIN4741145286848HS code9405.41
Lighting & Electrical Accessories
Ceiling & Wall Luminaires
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Glamox I40L60002 I40-1500 LED 8500 HF 840 TW PC.
Technical Specifications
- Manufacturer part number (MPN)
- I40L60002 EAN / GTIN: 4741145286848 Sales unit: pcs Product shape: Linear Certification: ENEC minimum TA (ºC): -20 Maximum TA (ºC): 30 IK classification: 08 IP classification: 66 Light source: LED Lumen Out (lm): 9.088 Lumen Per Watt (lm/W): 169 Lamp colour temp (K): 4000 Colour Rendering Index: >80 MacAdam step: 3 Energy Class Light Source: C Type of LED Driver: HF: Non dimmable Number of Driver: 1 LED Lifetime L80B50 Ta25 (h): >100000 LED Lifetime L80B50 Max Ta (h): 100000 Luminous flux decline (LLMF) 50.000h Ta25: 0.90 Main Feed AC (V) Min: 220 Main Feed AC (V) Max: 240 Main Feed Frequency Min: 50 Main Feed Frequency Max: 60 Main Feed DC (V) Min: 198 Main Feed DC (V) Max: 250 Total Consumption (W): 53.80 IEC Protection Class: II Number Of Luminaire MCB 10B: 15 Number Of Luminaire MCB 10C: 25 Number Of Luminaire MCB 16B: 24 Number Of Luminaire MCB 16C: 40 Optic Name: OP/PC - Opal diffuser in polycarbonate UGR (70/50/20 & 4H-8H crosswise): 27 Diffuser material: Polycarbonate Diffuser material Design: Opal Optic main category: Diffuser Body Colour: GR - Grey Main Body Colour Name: Grey Length (mm): 1.573 Width (mm): 101 Height (mm): 101 Item Net Weight (kg): 2.43 Termination: 5x2x2.5mm2 Push In Through Wiring: 5x2.5 Number of Glands: 2 Repairable/Changeable Parts: LED module,Internal driver,Optic,Sensor Packaging material: Plastic,Cardboard,Recycled cardboard Product Mounting: Ceiling surface Item Gross Weight (kg): 2.64 Country of origin: Norway
Standards & Compliance
- HS Code
- 9405.41
Cross References
- EAN 4741145286848
- SAP 1200215988
- Code 82135141
Product Documentation
Document preview: I40-1500 8500 HF 840 TW PC (I40L60002) — Specification sheet
