Glamox

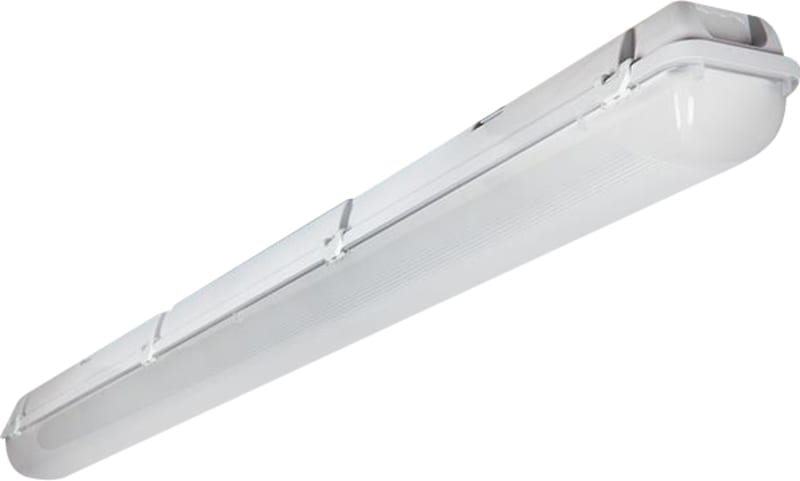

I41-1500 7500 HF 840 TW PMMA
Part numberI41311200EAN / GTIN4741145287654HS code8543.70
Lighting & Electrical Accessories
Ceiling & Wall Luminaires
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Glamox I41311200 En LED luminaire designed for landbruksindustrien.
Technical Specifications
- Manufacturer part number (MPN)
- I41311200 EAN / GTIN: 4741145287654 HS code: 8543.70 Sales unit: pcs Product shape: Linear Leakage Current (mA): 0 Main Feed AC (V) Min: 220 Main Feed AC (V) Max: 240 Main Feed Frequency Min: 50 Main Feed Frequency Max: 60 Main Feed DC (V) Min: 198 Main Feed DC (V) Max: 250 Total Consumption (W): 49 Number Of Luminaire MCB 10B: 15 Number Of Luminaire MCB 10C: 25 Number Of Luminaire MCB 16B: 24 Number Of Luminaire MCB 16C: 40 minimum TA (ºC): -20 Maximum TA (ºC): 35 IK classification: 03 IP classification: 66 Light source: LED Lumen Out (lm): 7.500 Lumen Per Watt (lm/W): 153 Lamp colour temp (K): 4000 Colour Rendering Index: >80 MacAdam step: 3 Energy Class Light Source: B Type of LED Driver: HF: Non dimmable Number of Driver: 1 LED Lifetime L80B50 Ta25 (h): >100000 LED Lifetime L70B50 Max Ta (h): 100000 Luminous flux decline (LLMF) 50.000h Ta25: 0.90 Optic Name: OP - Opal diffuser in acrylic UGR (70/50/20 & 4H-8H crosswise): 26 Diffuser material: Acrylic Diffuser material Design: Frosted Optic main category: Diffuser Body material: Polyester Body Colour: GR - Grey Main Body Colour Name: Grey Length (mm): 1.573 Width (mm): 101 Height (mm): 101 Item Net Weight (kg): 2.61 Termination: 5x2x2.5mm2 Push In Through Wiring: 5x2.5 Number of Glands: 2 Repairable/Changeable Parts: LED module,Internal driver,Optic,Sensor Packaging material: Plastic,Cardboard,Recycled cardboard Product Mounting: Ceiling surface Item Gross Weight (kg): 2.84
Standards & Compliance
- HS Code
- 8543.70
Cross References
- EAN 4741145287654
- SAP 1200506123
- Code 82631807
Product Documentation
Document preview: I41-1500 7500 HF 840 TW PMMA (I41311200) — Specification sheet
More from Glamox
Glamox
Glamox Heating 3001 TPA20 2000W HV 9010
765202030
Glamox
C77-R600X600 WH 4000 HF 830 LI 4XSM
C77103056
Glamox
E20-S G2 LED M/NM E1/ST
E20660102
Glamox
I41-1500 5500 HF 840 TW PMMA
I41311100
Glamox
FR GRX3-E LED 1700/2500 OP Norac B500
3307446
Glamox
A40-W1200 LED 2100 HF 830
A40832262
Glamox
C77-R600X600 WH 4000 HF 840 LI 4XSM
C77103057
Glamox
A40-W600 LED 1000 HF 830
A40812262
Catalogue entry last verified: 2026-09-30. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy I41311200?
- I41311200 can be ordered from cballast.com as a Glamox catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this Glamox product?
- The manufacturer part number is I41311200.
- What is the HS code for I41311200?
- The customs tariff (HS) code for I41311200 is 8543.70.
- Who manufactures I41311200?
- I41311200 is a Glamox product in the Lighting & Electrical Accessories range.
- Is a datasheet available for I41311200?
- Yes — the I41311200 datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for I41311200?
- The minimum order quantity is 1.
- Is I41311200 available?
- Yes — I41311200 is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
