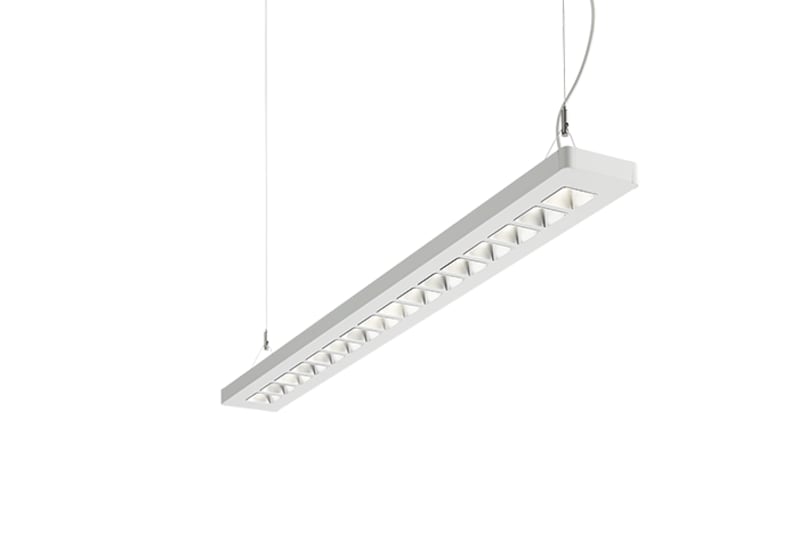

C77P125X1200 W 4060 7K D 830 MPW C2.5 SM

Glamox C77099734 Nedhengt luminaire for office, skole ol with optikk.

Manufacturer part number (MPN)

C77099734 EAN / GTIN: 7054130997344 HS code: 8543.70 Sales unit: pcs Product shape: Rectangular User Control: App Type of user interface: Screen User Control Short Text: App based control Certification: ENEC DALI 2 certified: Yes minimum ambient temperature (ºC): -25 Maximum ambient temperature (°C): 35 IK classification: 02 IP classification: 20 Light source: LED Lumen out (lm): 6.577 Lumen per Watt (lm/W): 117 Lamp colour temp (K): 3000 CRI Colour rendering index: >80 Light distribution up %: 40 Light distribution down %: 60 MacAdam step: 3 Energy class light source: D minimum dim level (%): 1 Type of LED Driver: WZ: Wireless Zigbee Number of Driver: 1 L80 Median useful life LED Ta25 (hr): 100000 Driver lifetime at Ta=25, 10% failure rate (h): 100.000 Driver lifetime at Ta=45, 10% failure rate (h): 50.000 Luminous flux decline (LLMF) 50.000h Ta25: 0.96 Voltage from (V): 220 Maximum voltage (V): 240 minimum frequency (Hz): 50 Maximum frequency (Hz): 60 Total consumption (W): 57.21 Number of luminaires on a 10A MCB type B: 12 Number of luminaires on a 10A MCB type C: 21 Number of luminaires on a 16A MCB type C: 35 Sensor type: PIR+Daylight harvesting (CLS) Pre-set functionality daylight sensor: CLS Light sensor max lux: 999 Light sensor min lux: 0 Detection angle crosswise (°): 62 Detection angle lengthwise (°): 84 Sensor cover cross presence: 45 Sensor cover length presence: 62 Max mounting height / detection range (metre): 3 Sensor max hold time: Programmable Sensor min hold time: 5 sec Optic: SM - Silver matt reflector UGR (70/50/20 & 4H-8H crosswise): 16 Colour of reflector: Silver Matt Optic main category: Reflector Main body material: Steel Body colour: WH - White Main body colour name: Traffic white Main body colour RAL code: RAL 9016 Length (mm): 1.179 Width (mm): 125 Height (mm): 32 Net weight (kg): 2.70 Termination: 3x2x2.5mm2 Push In Cable Cross section (mm²): 0.75 Cable End / Plug Name: Open End Cable length (m): 2.50 Cable material: PVC No of leads: 3 Cable diameter variation max (mm): 7 Repairable/Changeable Parts: LED module,Internal driver,Optic,Sensor Packaging material: Recycled cardboard Product mounting: Pendant Item gross weight (kg): 2.94

HS Code

8543.70

• EAN 7054130997344
• SAP 1200713184
• Code 83819223
