Glamox
RLXCXZ1.21 40WAC1D Wide 3HCBABK
Part numberLN1002266EAN / GTIN7072720000359HS code8543.70
Lighting & Electrical Accessories
Floodlights
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description

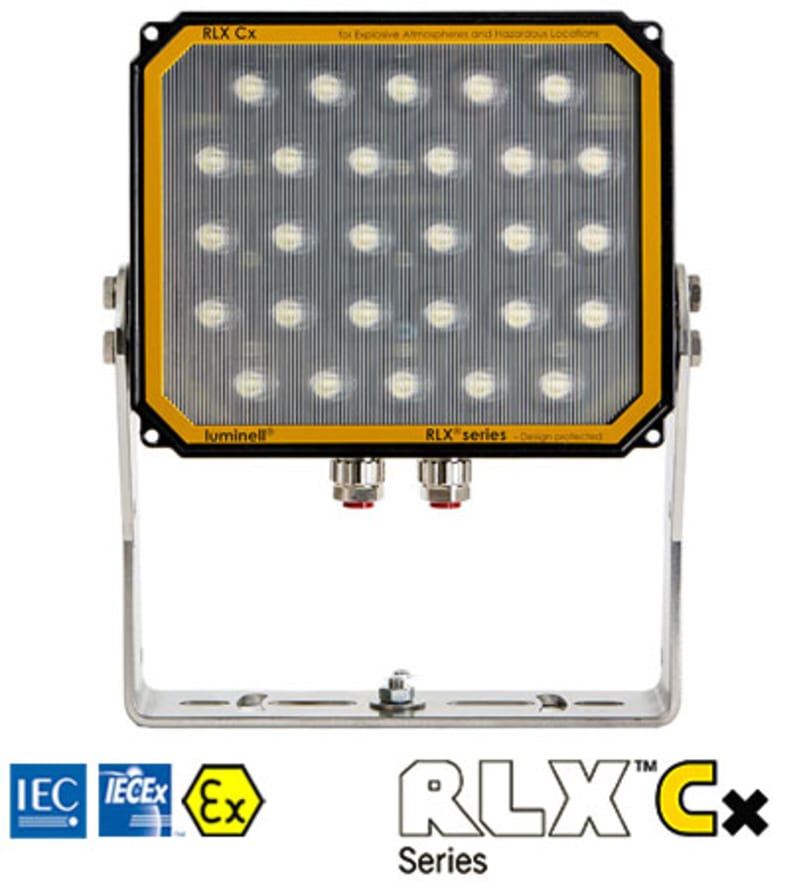

Glamox LN1002266 RLX Cx Floodlight Ex Zone 1.21, 40W, Wide beam, 9,7kg, dimmable, 2xM25, 2xM20.
Technical Specifications
- Manufacturer part number (MPN)
- LN1002266 EAN / GTIN: 7072720000359 HS code: 8543.70 Sales unit: pcs EMC Category: EMC1 : EMC B – IEC 60533 Bridge and Open deck minimum Voltage -10% (VAC): 100 Maximum voltage +10% (VAC): 277 minimum frequency -5% (Hz): 50 Maximum frequency +5% (Hz): 60 Main Feed DC (V) Min: 100 Main Feed DC (V) Max: 300 Total consumption (W): 40 Inrush current (A): 50 Number of luminaires on a 10A MCB type B: 7 Number of luminaires on a 10A MCB type C: 11 Number of luminaires on a 16A MCB type B: 12 Number of luminaires on a 16A MCB type C: 20 Power factor: 0.90 Certification: ATEX,Ex Zone 1,Ex Zone 2,Ex Zone 21,Ex Zone 22,IECEx,INMETRO Marine Approved: Yes Ignition Class: T6 85° Atex code: Ex II 2G II 2D Class Ex Gas: IIC Class Ex Dust: IIIC Max surface temp Dust: 85 Class III: No EX zone: Ex zone 1,Ex zone 2,Ex zone 21,Ex zone 22 minimum ambient temperature (ºC): -55 Maximum ambient temperature (°C): 55 IP classification: 66/67 Corrosion class: C5-M Light source: LED Lumen out (lm): 4.639 Lumen per Watt (lm/W): 116 Lamp colour temp (K): 5000 CRI Colour rendering index: >70 Light source included: Yes Dimmable: Yes Beam angle (°): 80x60 Type of LED Driver: HFDa: Dimming Analogue 1-10V L70 Median useful life LED Ta45 (hr): 100000 Main body material: Seawater-resistant aluminium Surface treatment: Anodized Body colour: BL - Black Main body colour name: Graphite black Main body colour surface: Powder coated Main body colour RAL code: RAL 9011 Mounting bracket material: Stainless steel AISI 316 Length (mm): 306 Width (mm): 144 Height (mm): 367 Net weight (kg): 9.60 Termination: 4x6+2x16+8x2.5mm2 Spring Cage Cable gland: M25-Nickel plated brass Number of cable glands: 2 Blind plugs: M20-Nickel plated brass Number of blind plugs: 2 Max cable diameter (mm): 10 Min cable diameter (mm): 18 Item gross weight (kg): 10.43
Standards & Compliance
- HS Code
- 8543.70
Cross References
- EAN 7072720000359
- SAP 1200575760
- Code 82939864
Product Documentation
Document preview: RLXCXZ1.21 40WAC1D Wide 3HCBABK (LN1002266) — Specification sheet
