Glamox
RLXC 80WDC2D MB60 2ABAABK
Part numberLN1001822EAN / GTIN7072720000717HS code8543.70
Lighting & Electrical Accessories
Floodlights
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description

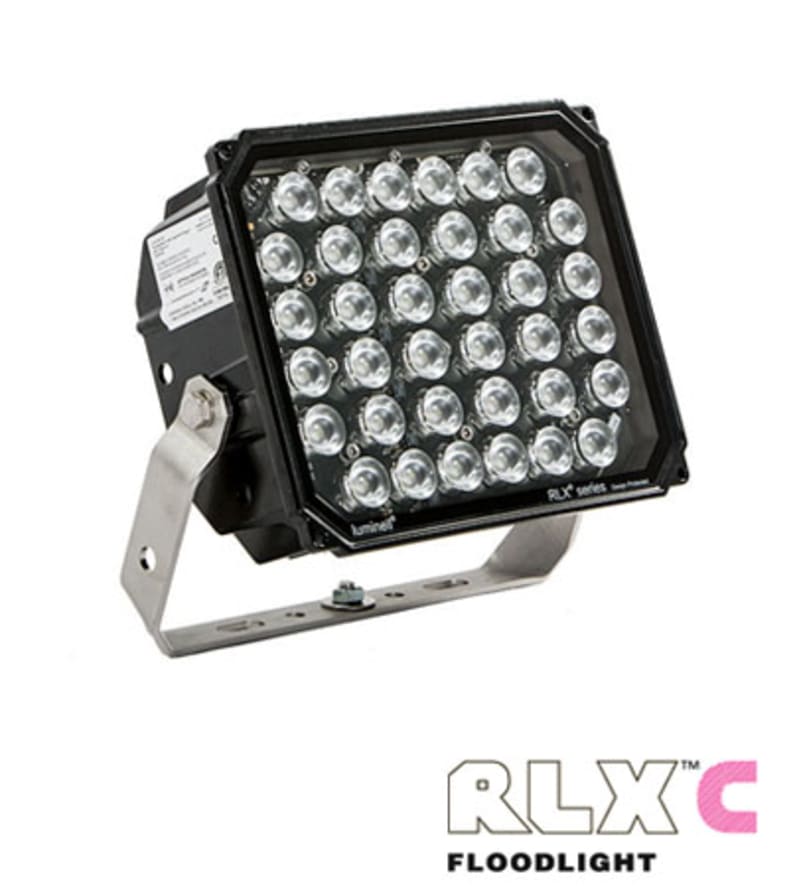

Glamox LN1001822 RLX C Floodlight 80W 24VDC dimmable Medium beam 60.
Technical Specifications
- Manufacturer part number (MPN)
- LN1001822 EAN / GTIN: 7072720000717 HS code: 8543.70 Sales unit: pcs EMC Category: EMC1 : EMC B – IEC 60533 Bridge and Open deck Main Feed DC (V) Min: 19 Main Feed DC (V) Max: 30 Total consumption (W): 80 Certification: DNV Marine Approved: Yes minimum ambient temperature (ºC): -40 Maximum ambient temperature (°C): 55 IP classification: 66/67 Corrosion class: C5-M Light source: LED Lumen out (lm): 10.776 Lumen per Watt (lm/W): 135 Lamp colour temp (K): 5000 CRI Colour rendering index: >70 MacAdam step: 3 Light source included: Yes Dimmable: Yes Type of LED Driver: HFDa: Dimming Analogue 1-10V L70 Median useful life LED Ta45 (hr): 100000 Optic: MB60 - Medium Beam 60° Main body material: Seawater-resistant aluminium Surface treatment: Anodized Body colour: BL - Black Main body colour name: Graphite black Main body colour surface: Powder coated Main body colour RAL code: RAL 9011 Mounting bracket material: Stainless steel AISI 316 Length (mm): 293 Width (mm): 113 Height (mm): 262 Net weight (kg): 5.52 Termination: 2x2x2.5mm2 Push In Cable gland: M20-Nickel plated brass Number of cable glands: 1 Blind plugs: M20-Nickel plated brass Number of blind plugs: 1 Max cable diameter (mm): 13 Min cable diameter (mm): 7 Item gross weight (kg): 6
Standards & Compliance
- HS Code
- 8543.70
Cross References
- EAN 7072720000717
- SAP 1200575737
- Code 82939774
Product Documentation
Document preview: RLXC 80WDC2D MB60 2ABAABK (LN1001822) — Specification sheet
