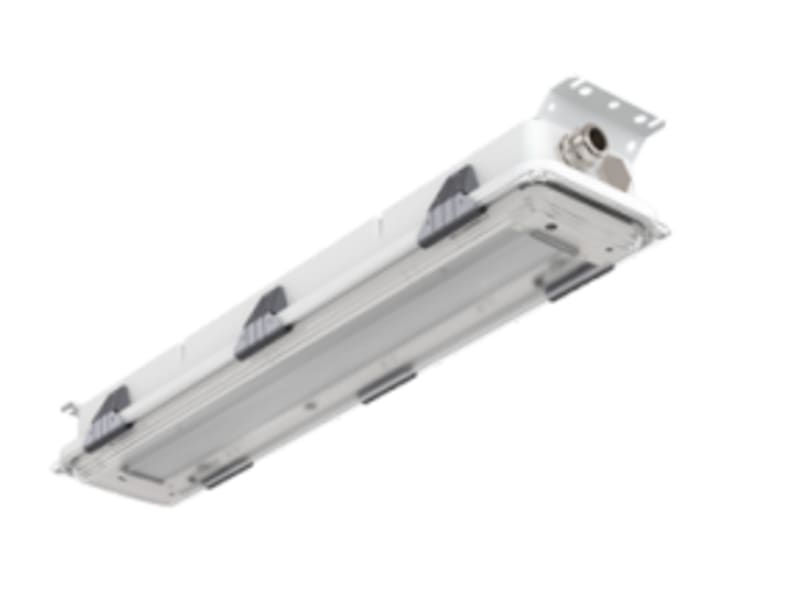

MAXS67-600 G2 2500HF860 End+HNUT400 BN25

Glamox MAX103554 Ex LED luminaire for zone 1 with high quality and long service life. MAXS67-600 G2 2500 HF 860 END+HNUT400 TW BN25 FR/PC 220-254V.

Manufacturer part number (MPN)

MAX103554 EAN / GTIN: 7054131035540 HS code: 8543.70 Sales unit: pcs Product shape: Linear EMC Category: EMC1 : EMC B – IEC 60533 Bridge and Open deck Leakage current (mA): 0.45 minimum Voltage -10% (VAC): 220 Maximum voltage +10% (VAC): 254 minimum frequency -5% (Hz): 50 Maximum frequency +5% (Hz): 60 Main Feed DC (V) Min: 220 Main Feed DC (V) Max: 250 Total consumption (W): 21 Inrush current (A): 22 Number of luminaires on a 10A MCB type B: 15 Number of luminaires on a 10A MCB type C: 25 Number of luminaires on a 16A MCB type B: 24 Number of luminaires on a 16A MCB type C: 40 Certification: ATEX,IECEx Marine Approved: Yes Ignition Class: T4135° Atex code: II 2GD Class Ex Gas: Ex eb mb IIC Gb Class Ex Dust: Ex tb IIIC Db Max surface temp Dust: 81 EX zone: Ex zone 1,Ex zone 2,Ex zone 21,Ex zone 22 minimum ambient temperature (ºC): -40 Maximum ambient temperature (°C): 55 IK classification: 10 IP classification: 66/67 Corrosion class: CX-VH Light source: LED Lumen out (lm): 2.803 Number of lamps: 1 Lumen per Watt (lm/W): 134 Lamp colour temp (K): 6000 CRI Colour rendering index: >80 Light distribution up %: 1 Light distribution down %: 99 MacAdam step: 3 Energy class light source: D Light source included: Yes Type of LED Driver: HF: Non dimmable Number of Driver: 1 L70 Median useful life LED MaxTa (hr): 100000 Luminous flux decline (LLMF) 50000h Ta25: 0.90 Optic: FR/PC - Frosted diffuser in polycarbonate material of diffuser: Polycarbonate Optic main category: Diffuser Main body material: Stainless Steel 316L Body colour: WH - White Main body colour name: White Mounting bracket type: M8 Length (mm): 724 Width (mm): 158 Height (mm): 95 CC Min: 400 CC max: 704 Net weight (kg): 4.80 Termination: 6x6.0mm2 Screw Terminal Type of through wiring: 6x2.5 Cable gland: M25-Nickel plated brass Number of cable glands: 2 Blind plugs: M25-Nickel plated brass Number of blind plugs: 2 Max cable diameter (mm): 18 Min cable diameter (mm): 10 Repairable/Changeable Parts: Internal driver,LED module,Optic Packaging material: Recycled cardboard Product mounting: Ceiling surface,Wall surface Item gross weight (kg): 5.22

HS Code

8543.70

• EAN 7054131035540
• SAP 1200739148
• Code 83932802
