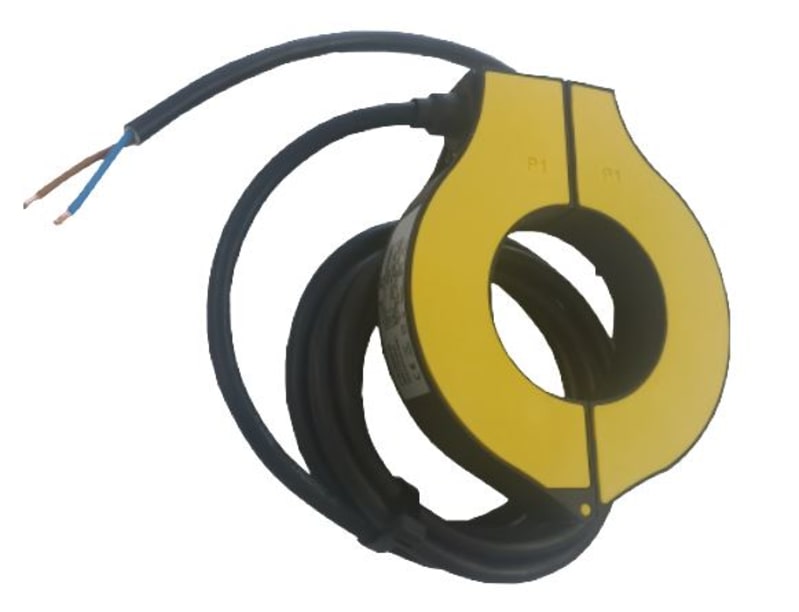

TP-LOOP80 Split-Core Current Transformer 800/5 A Class 0.5 Ø80 mm
Pricing
Request a quote
We reply within 24 hours
Product Description
TP-LOOP80 SL13510800 is a split-core current transformer with an 800:5 A ratio, accuracy class 0.5, and a 3 VA rated secondary burden. The Ø80 mm window with FS 10 overcurrent limiting fits around installed busbars or cables without disturbing the circuit. It ships with a 3 m secondary lead of 2.5 mm2 and is used in metering and monitoring retrofits on switchboards.
Technical Specifications
- Manufacturer part number (MPN)
- SL13510800
- EAN / GTIN
- 7070738012517
- Sales unit
- pcs
- Model
- Pipe stick current converter
- Rated primary current
- 800 A
- Rated secondary current
- 5 A
- Rated secondary apparent power
- 3 VA
- Accuracy class
- 0.5
- Overcurrent limiting factor
- FS 10
- With contact protection
- Yes
- Height opening
- 80 mm
- Width opening
- 80 mm
- Opening diameter
- 80 mm
- Snap mounting
- Yes
- With copper rail
- No
- Number of primary inputs
- 1
- Country of origin
- Spain
Standards & Compliance
- HS Code
- 8504.31
Cross References
- EAN 7070738012517
- SAP 1200477128
- Code 82557776
