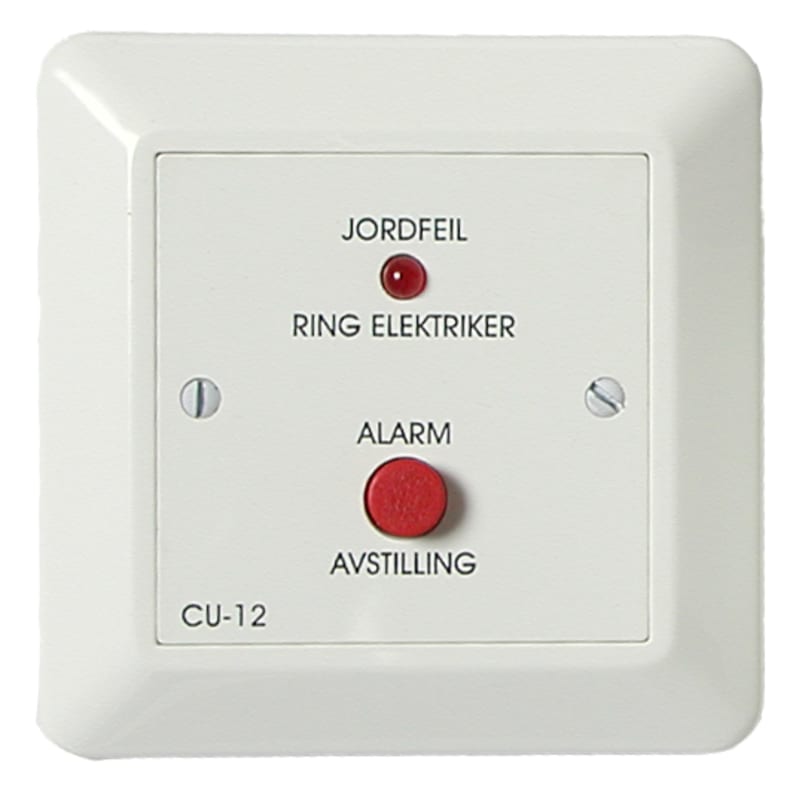

Function CU-12 Earth Fault Indicator Panel — 12 V DC, Red, IP20, for SECAP-25 Relay

The CU-12 is the remote earth fault indicator panel for the SECAP-25 directional earth fault relay. The SECAP-25 provides a 12 V output specifically to drive a remote annunciator, and this panel is that annunciator: it gives a visible red indication at the board front or door when the relay detects an earth fault within its own installation, so the condition is seen by whoever is standing in front of the installation and not only by a control system reading the alarm contact. It is a 12 V DC unit with a single red flat round lens, screw terminals and IP20 protection. This is the part required to add local indication to a SECAP25F or SECAP25J, which are supplied without a panel; the SECAP25FP and SECAP25JP already include it. Manufactured in Spain and supplied under the Function brand. Supplied by cBallast on quote-to-invoice terms; lead time and freight are quoted per RFQ against the destination Incoterm.

Manufacturer part number (MPN)

1661680

Sales unit

pcs

El-nummer (NO)

1661680

ETIM class

SC000272

Voltage type

DC

Colour lens

Red

Number of indicator lights

1

Rated operating voltage Ue

12 V

Type of electric connection

Screw connection

Degree of protection (IP)

IP20

With light source

No

With front ring

No

Construction type lens

Round

Type of lens

Flat

Country of origin

Spain

Device type

Remote earth fault indicator panel

Used with

SECAP-25 directional earth fault relay (12 V annunciator output)

Supply

12 V DC

Indication

Single red lens

Model

CU-12

HS Code

8536.20

• 7070587100434
• El-nr 1661680
• CU-12
