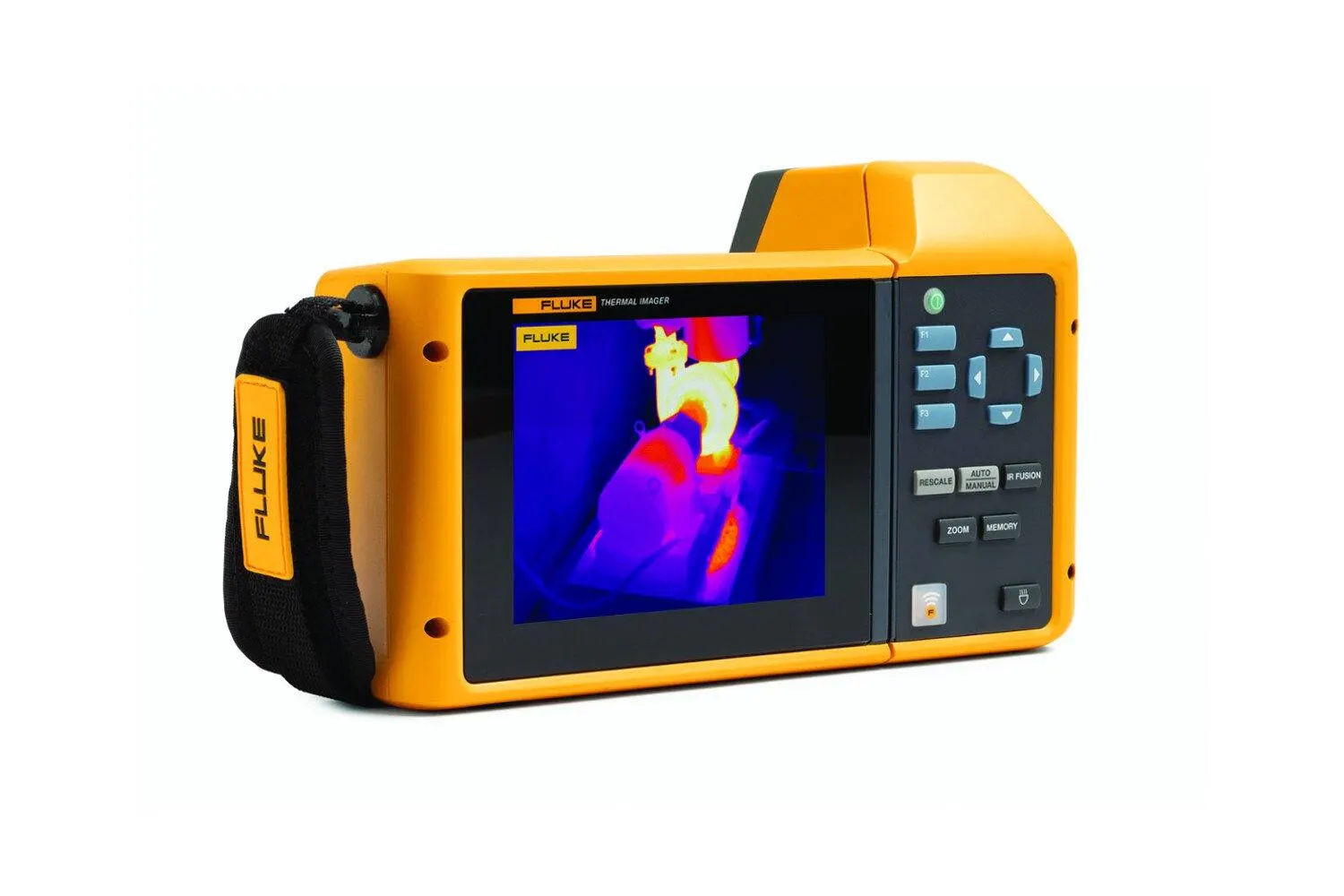

Fluke TIX580 Infrared Camera

Get stunning 640 x 480 resolution thermal images and surprising affordability.

Manufacturer part number (MPN)

4842073 Brand: Fluke Category: Tools IFOV with standard lens (spatial resolution): 0.93 mRad, D:S 1065:1 Detector resolution: 640 x 480 (307,200 pixels) SuperResolution: Yes, on camera and in software. Captures and combines 4x the data to create a 1280 x 960 image MultiSharp™ Focus: Yes, focused near and far, throughout the field of view LaserSharp® Auto Focus: Yes, for consistently in-focus images. Every. Single. Time. Laser distance meter: Yes, calculates distance to the target for precisely focused images and displays distance on screen Advanced manual focus: Yes Touchscreen display (capacitive): 5.7 inch (14.4 cm) landscape 640 x 480 LCD Rugged, ergonomic design: 240 ° rotatable (articulating) lens digital zoom: 2x, 4x, and 8x Pre-calibrated Lenses: wide angle, 2x telephoto, 4x telephoto and 25 micron/macro Temperature measurement range (not calibrated below -10 °C): -20 °C to 1000 °C (-4 °F to 1832 °F) Accuracy: ±2 °C or 2% (at 25 °C nominal, whichever is greater) Thermal sensitivity (NETD)*: ≤ 0.05 °C at 30 °C target temp (50 mK) On-screen emissivity correction: Yes (both value and table) On-screen reflected background temperature compensation: Yes On-screen transmission correction: Yes Live line marker: Yes Fluke Connect® app compatible: Yes, connect your camera to your smartphone, and images taken automatically upload to the Fluke Connect app for saving and sharing Fluke Connect Assets optional software: Yes, assign images to assets and create work orders. Easily compare measurement types - whether mechanical, electrical or infrared images - in one location. Fluke Connect Instant Upload: Yes, connect your camera to your building's WiFi network, and images taken automatically upload to the Fluke Connect system for viewing on your smartphone or PC Fluke Connect tool compatible: Yes, connects wirelessly to select Fluke Connect enabled tools and displays measurements on camera screen. Five simultaneous connections supported. Fluke Connect SmartView desktop software: Yes AutoBlend™ mode: Continuously variable Picture-In-Picture (PIP): 100%, 75%, 50%, 25% IR Built-in digital camera (visible light): 5 MP Standard lens IFOV (spatial resolution): 0.93 mRad, D:S 1065:1 Standard lens Field of view: 34 °H x 24 °V Standard lens minimum focus distance: 15 cm (approx. 6 in) Standard lens IR-Fusion® technology: Picture-in-picture and full screen Optional 2x telephoto smart lens IFOV: 0.33 mRad. D:S is 2145.1 Optional 2x telephoto smart lens Field of view: 12 °H x 8.5 °V Optional 2x telephoto smart lens minimum focus distance: 45 cm (approx. 18 in) Optional 2x telephoto smart lens IR-Fusion® technology: Picture-in-picture and full screen Optional wide-angle smart lens IFOV: 1.85 mRad, D:S is 525:1 Optional wide-angle smart lens Field of view: 48 °H x 34 °V Optional wide-angle smart lens minimum focus distance: 15 cm (approx. 6 in) Optional wide-angle smart lens IR-Fusion® technology: Full screen Touchscreen adjustable level/span: Yes. Span and level can be easily and quickly set by simply touching the screen Fast auto toggle between manual and auto modes: Yes Fast auto-rescale in manual mode: Yes minimum span (in manual mode): 2.0 °C (3.6 °F) minimum span (in auto mode): 3.0 °C (5.4 °F) Extensive memory options: Removable 4 GB micro SD memory card, 4 GB internal flash memory, save to USB flash drive capability, upload to Fluke Cloud for permanent storage. Image file formats: Non-radiometric (.bmp, .jpeg), or fully radiometric (.is2); no analysis software required for non-radiometric (.bmp, .jpg) files Memory review: Thumbnail and fullscreen review Software: Fluke Connect SmartView software - full analysis and reporting software and Fluke Connect system Export file formats with Fluke Connect software: Bitmap (.bmp), GIF, JPEG, PNG, TIFF Voice annotation: 60 seconds maximum recording time per image; reviewable playback on camera IR-PhotoNotes™: Yes (5 images) Advanced text annotation: Yes. Including standard shortcuts as well as user programmable options Video recording: Standard and radiometric File formats video: Non-radiometric (MPEG - encoded .AVI) and fully-radiometric (.IS3) Remote display viewing: Yes, see the live stream of the camera display on your PC, smartphone, or TV monitor. Via USB, WiFi hotspot, or WiFi network to Fluke Connect SmartView software on a PC; via WiFi hotspot to the Fluke Connect app on a smartphone; or via HDMI to a TV monitor Remote control operation: Yes, through Fluke Connect SmartView desktop software or Fluke Connect mobile app Auto capture (temperature and interval): Yes MATLAB® and LabVIEW® tool boxes: Integrate camera data, infrared video and images into these software platforms to support R&D analysis Batteries (field-replaceable, rechargeable): Two lithium ion smart battery packs with five-segment LED display to show charge level Battery life: 2-3 hours per battery (Actual life varies depending on settings and usage) Battery charge time: 2.5 hours to full charge Battery charging system: Two-bay battery charger or in-imager charging. Optional 12 V automotive charging adapter AC operation: AC operation with included power supply (100 V AC to 240 V AC, 50/60 Hz) Power saving: User selectable sleep and power off modes Standard palettes: 8: Ironbow, Blue-Red, High Contrast, Amber, Amber Inverted, Hot Metal, Grayscale, Grayscale Inverted Ultra Contrast™ palettes: 8: Ironbow Ultra, Blue-Red Ultra, High Contrast Ultra, Amber Ultra, Amber Inverted Ultra, Hot Metal Ultra, Grayscale Ultra, Grayscale Inverted Ultra Frame rate: 60 Hz or 9 Hz versions Laser pointer: Yes LED light (torch): Yes Color alarms (temperature alarms): High temperature, low temperature, and isotherms (within range) Center-point temperature measurement: Yes Spot temperature: Hot and cold spot markers User-definable spot markers: 3 user-definable spot markers Center box: Expandable-contractible measurement box with MIN-MAX-AVG temp display Infrared spectral band: 7.5 μm to 14 μm (long wave) Operating temperature: -10 °C to +50 °C (14 °F to 122 °F) Storage temperature: -20 °C to +50 °C (-4 °F to 122 °F) Relative humidity: 10% to 95% non-condensing Safety: IEC 61010-1: Overvoltage category II, Pollution Degree 2 Electromagnetic compatibility: IEC 61326-1: Basic EM environment. CISPR 11: Group 1, Class A Australian RCM: IEC 61326-1 US FCC: CFR 47, Part 15 Subpart B Vibration: 0.03 g2/Hz (3.8 g), 2.5 g IEC 60068-2-6 Shock: 25 g, IEC 60068-2-29 Drop: 25 g, IEC 68-2-29/Engineered to withstand 1 meter (3.3 feet) drop with standard lens Size (H x W x L): 27.3 x 15.9 x 9.7 cm (10.8 x 6.3 x 3.8 in) Weight (battery included): 1.54 kg (3.4 lb) Enclosure rating: IEC 60529: IP54 (protected against dust, limited ingress; protection against water spray from all directions) Warranty: Two-years (standard), extended warranties are available Recommended calibration cycle: Two-years (assumes normal operation and normal aging) Supported languages: Czech, Dutch, English, Finnish, French, German, Hungarian, Italian, Japanese, Korean, Polish, Portuguese, Russian, Simplified Chinese, Spanish, Swedish, Traditional Chinese, and Turkish
