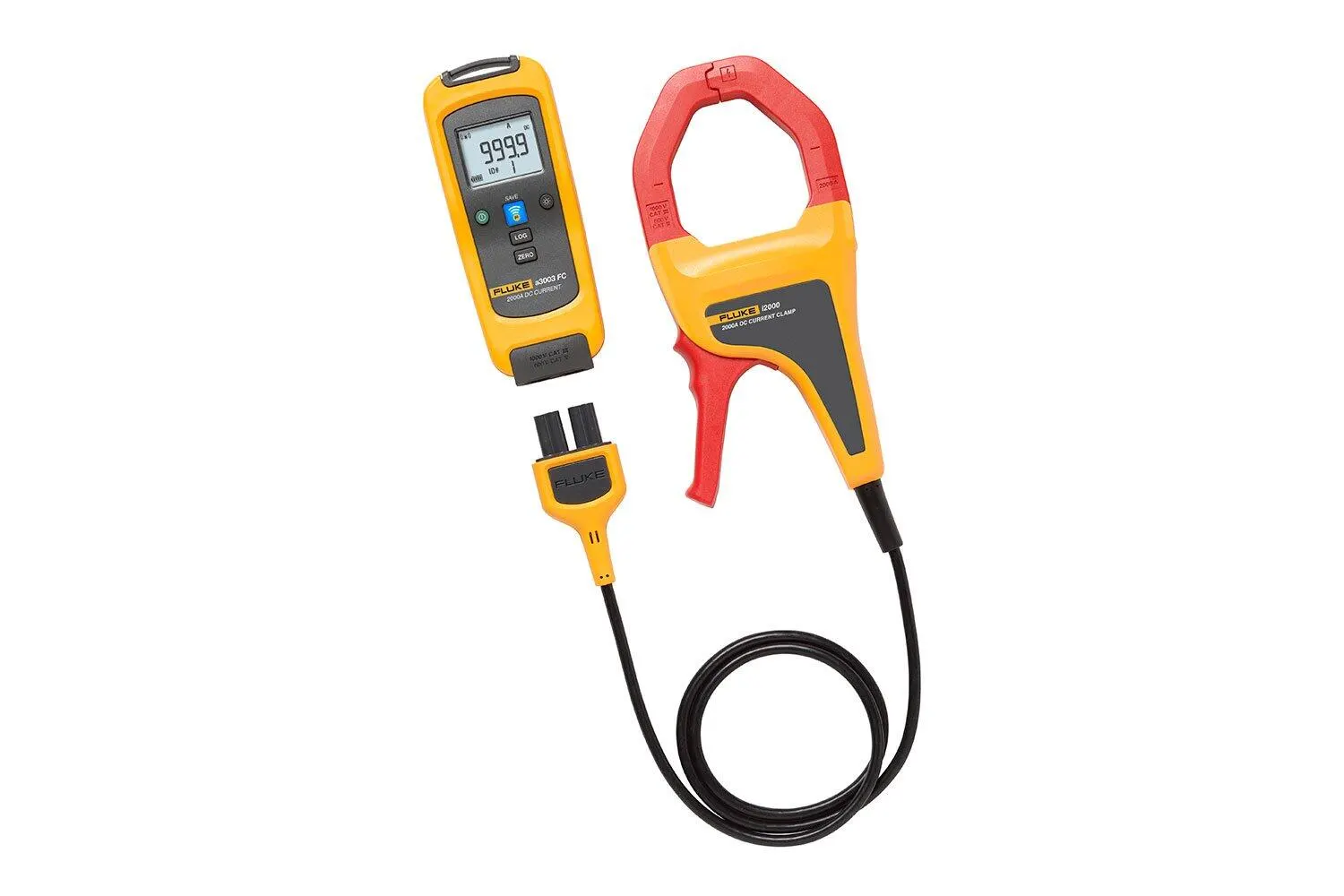

Fluke A3003 FC Wireless 2000 A DC Current Clamp Meter

The a3003 FC wirelessly relays measurements from current clamp accessories to other Fluke Connect® enabled master units.

Manufacturer part number (MPN)

4629295 Brand: Fluke Category: Tools Range: 1.0A to 999.9 A DC 1000 A to 2000 A DC Resolution: 0.1 A 1 A Accuracy: 2% ± 5 digits 2.5% ± 5 digits LCD w/backlight: 3 ½ digits Log rate/Interval: 1 sec minimum/adjustable by PC or front pannel Battery type: 2 AA NEDA 15 A IEC LR6 Battery life: 120 hours Memory: Record up to 65,000 readings RF communications: 2.4 GHz ISM Band RF communication range: Open air, unobstructed: Up to 20 m Obstructed, sheetrock wall: Up to 6.5 m Obstructed, concrete wall or steel electrical enclosure: Up to 3.5 m Operating temperature: -10°C to +50°C Storage temperature: -40°C to +60°C Temperature coefficient: Add 0.1 X (specified accuracy) /°C ( 28°C) Operative humidity: 90% at 35°C 75% at 40°C 45% at 50°C Altitude: Operating 2,000 m Storage 12,000 m EMC: EN 61326-1:2013 Safety compliance: IEC 61010-1 600 V CAT IV / 1000 V CAT III 3rd edition Certifications: CSA C-US CE FCC: T68-FBLE IC: 6627A-FBLE Ingress Protection (IP) rating: IP42 Jaw opening: 64 mm Size (HxWxD): 16.5 mm x 6.35 cm x 1.4 cm (6.5 in x 2.5 in x 1.4 in) Weight: .65 kg (1.75 lb)

HS Code

9030.33

• OEM-URL https://www.fluke.com/en-us/product/electrical-testing/clamp-meters/fluke-a3003-fc
