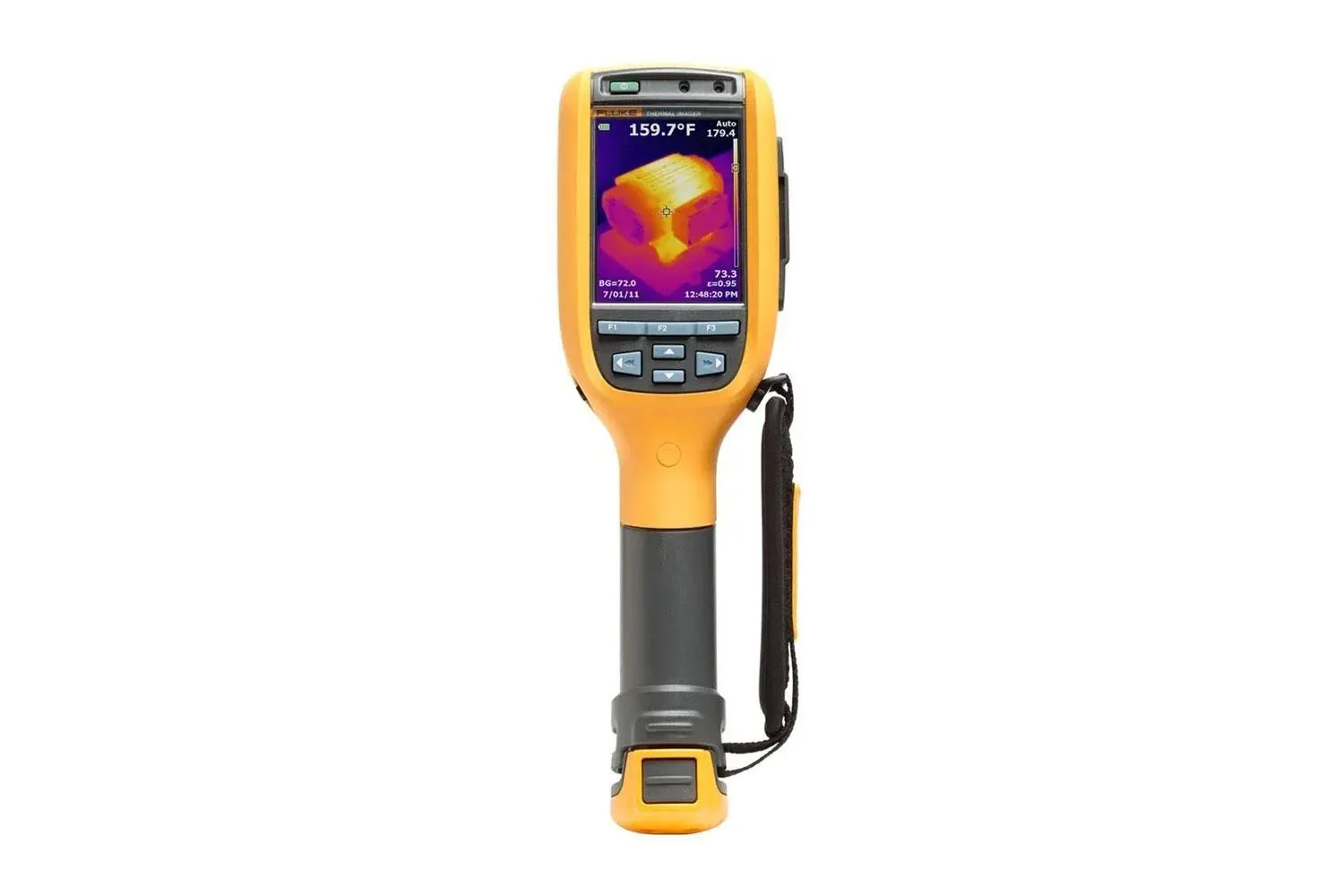

Fluke TI100 General Use Infrared Camera

The Fluke Ti100 is an affordable, entry level, general use infrared camera offering 160 x 120 resolution for both industrial and building applications.

Manufacturer part number (MPN)

3810290 Brand: Fluke Category: Tools IFOV (spatial resolution): 3.39 mRad Detector resolution: 160x120 (19,200 pixels) Field of view: 22.5 °H x 31 °V minimum focus distance: 122 cm (48 in) Focus system: Focus free (fixed focus) Wireless connectivity: Fluke Connect™ app compatible with included wireless SD Card1 Display: 3.5 inch diagonal (portrait format) Design: Rugged, lightweight, ergonomic design for one-handed use Thermal sensitivity (NETD): ≤ 0.10 °C at 30 °C target temp (100 mK) Temperature measurement range: -20 °C to +250 °C (-4 °F to +482 °F) Built-in digital camera (visible light): None - IR only Frame rate: 9 Hz Extensive memory options: Removable 4 Gb SD memory card and 8 Gb wireless SD card (where available); direct download via USB-to-PC connection File formats image: Non-radiometric (.bmp) or (.jpeg) or fully-radiometric (.is2) No analysis software required for non-radiometric (.bmp, .jpg) files SmartView® software: SmartView® software, Fluke Connect™1, and SmartView® Mobile App—full analysis and reporting software Batteries (field-replaceable, rechargeable): One lithium ion smart battery pack with five-segment LED display to show charge level AC battery charging system: In-imager charging. Optional two-bay battery charger or optional 12 V automotive charging adapter Accuracy: ± 2 °C or 2 % (at 25 °C nominal, whichever is greater) On-screen emissivity correction: Yes (both value and table) On-screen reflected background temperature compensation: Yes Color palettes: 4 standard: Ironbow, Blue-Red, Amber, Grayscale Drop: Engineered to withstand 2 meter (6.5 feet) drop Size (H x W x L): 28.4 cm x 8.6 cm x 13.5 cm (11.2 in x 3.4 in x 5.3 in) Weight (battery included): 0.73 kg (1.6 lb) Enclosure rating: IP54 (protected against dust, limited ingress; protection against water spray from all directions) Warranty: Two-years (standard), extended warranties are available

• OEM-URL https://www.fluke.com/en-us/product/thermal-cameras/ti100
