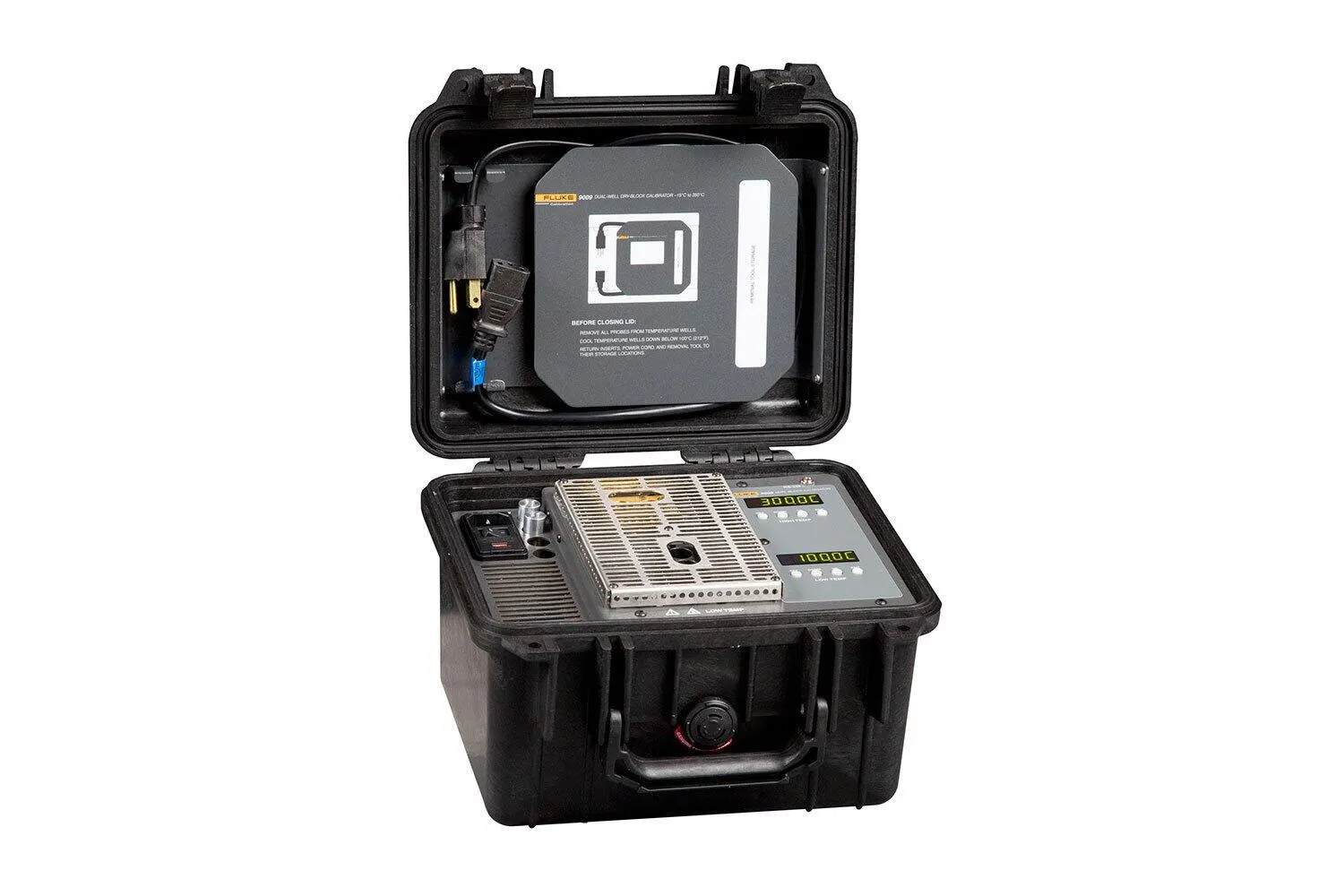

Fluke Calibration 9009 Dual-Well Dry-Well

The Fluke Calibration 9009 dry-well offers two independently controlled temperature blocks (-15°C to 350°C) in a portable design for in-field calibrations.

Manufacturer part number (MPN)

1657764

Brand

Fluke

Category

Tools

Block Display Accuracy

Stability

Cold ±0.2 °C

±0.05 °C

Hot ±0.6 °C

±0.05 °C

Hot block

Cold block

Range 50°C to 350°C (122°F to 662°F)

–15°C to 110°C (5°F to 230°F) (–8°C [18°F] with hot block at 350°C [662°F])

Accuracy ±0.6°C

±0.2°C

Stability

±0.05°C

Well-to-well uniformity

±0.1°C

Display resolution

0.1°

Heating times 30 minutes from 25°C to 350°C

15 minutes from 25°C to 110°C

Cooling times 40 minutes from 350°C to 100°C

16 minutes from 25°C to –15°C

Stabilization times

8 minutes

Well depth

4 in (102 mm)

Removable inserts

Two 6.4 mm (1/4 in) and two 4.8 mm (3/16 in) inserts included; see ordering information for other available inserts

Computer interface

RS-232 included

Power

115 V AC (±10 %), 3 A, or 230 V AC (±10 %), 2 A, specify, 50/60 Hz, 280 W

Size (H x W x D)

178 x 267 x 248 mm (7 x 10.5 x 9.75 in)

Weight

4.5 kg (10 lb)

Data at 50°C, 100°C, 150°C, 200°C, 250°C, 300°C, and 350°C

Data at –8°C, 0°C, 25°C, 50°C, 75°C, 100°C, and 110°C

HS Code

9031.80
