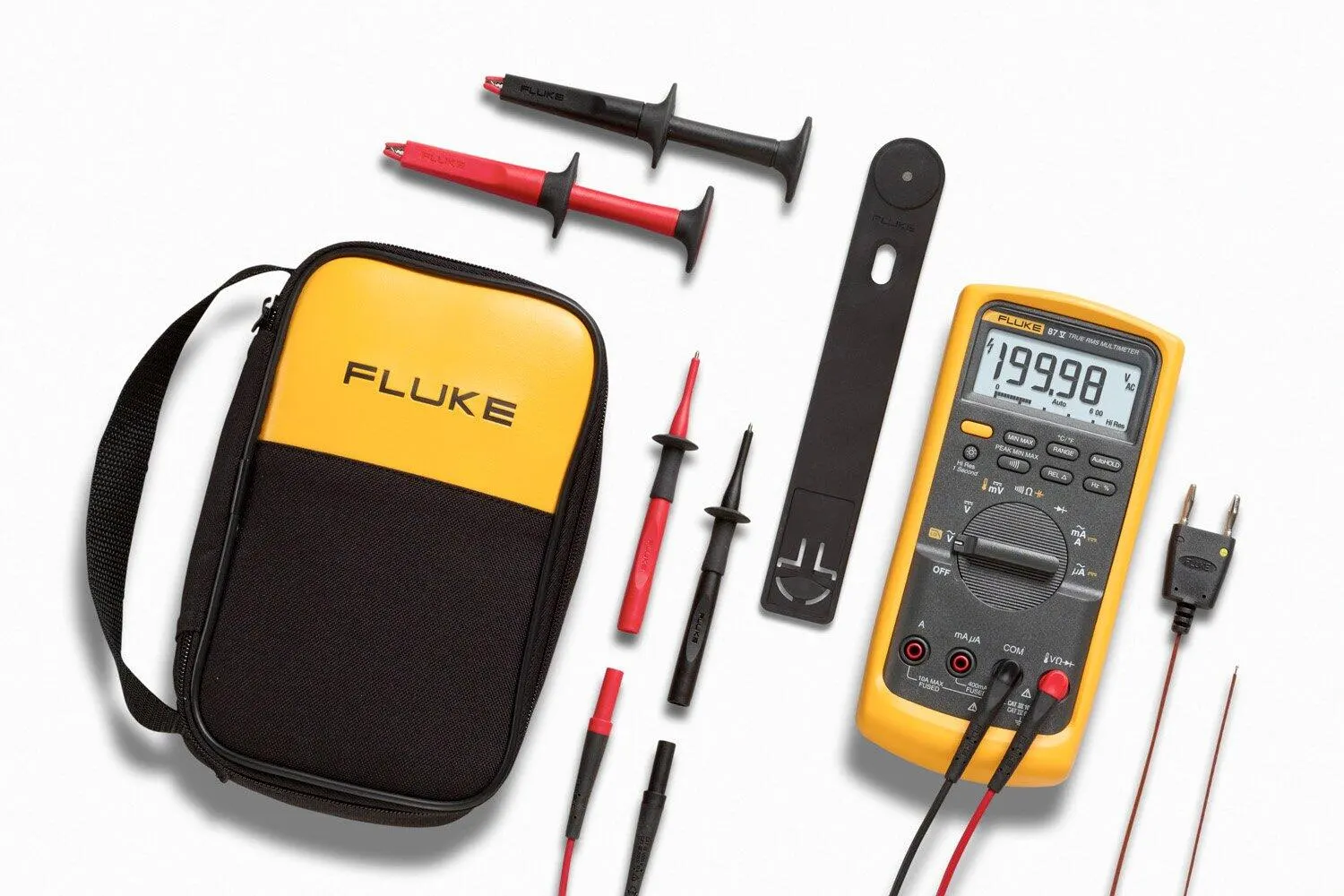

Fluke 87V/E2 Industrial Electrician Combo Kit

Combo kit with the Fluke 87V Industrial Multimeter, heavy duty test leads, alligator clips and test probes, hanging strap, case.

Manufacturer part number (MPN)

2670150

Brand

Fluke

Category

Tools

Voltage DC Maximum Voltage

1000 V

Voltage DC Accuracy

±(0.05% + 1)

Voltage DC Maximum Resolution

10 µV

Voltage AC Maximum Voltage

1000 V

Voltage AC Accuracy

±(0.7% + 2) True RMS

Voltage AC AC Bandwidth

20 kHz with low pass filter; 3 db @ 1 kHz

Voltage AC Maximum Resolution

0.1 mV

Current DC Maximum Amps

10 A (20 A for 30 seconds maximum)

Current DC Amps Accuracy

±(0.2% + 2)

Current DC Maximum Resolution

0.01 µA

Current AC Maximum Amps

10 A (20 A for 30 seconds maximum)

Current AC Amps Accuracy

±(1.0% + 2) True RMS

Current AC Maximum Resolution

0.1 µA

Resistance Maximum Resistance

50 MΩ

Resistance Accuracy

±(0.2% + 1)

Resistance Maximum Resolution

0.1Ω

Capacitance Maximum Capacitance

9,999 µF

Capacitance Accuracy

±(1% + 2)

Capacitance Maximum Resolution

0.01 nF

Frequency Maximum Frequency

200 kHz

Frequency Accuracy

±(0.005% + 1)

Frequency Maximum Resolution

0.01 Hz

Duty Cycle Maximum Duty Cycle

99.9%

Duty Cycle Accuracy

±(0.2% per khz +0.1%)

Duty Cycle Maximum Resolution

0.1%

Temperature Measurement

-200.0°C - 1090°C -328.0°F - 1994.0°F excluding probe

80 BK Temperature Probe

-40.0°C - 260°C -40.0°F - 500°F, 2.2°C or 2% whichever is greater

Conductance Maximum Conductance

60.00 nS

Conductance Accuracy

±(1.0% + 10)

Conductance Maximum Resolution

0.01 nS

Diode Range

3 V

Diode Resolution

1 mV

Diode Accuracy

±(2% + 1)

Duty Cycle Range Accuracy

Within ±(02% per kHz +0.1%)

Operating Temperature

-20°C to +55°C

Storage Temperature

-40°C to +60°C

Humidity (Without Condensation)

0% - 90% (0°C - 35°C) 0% - 70% (35°C - 55°C)

Operating Altitude

2000 m

Overvoltage category

EN 61010-1 to 1000 V CAT III, 600V CAT IV

Agency Approvals

UL, CSA, TÜV, VDE listed

Size

201 x 98 x 52 mm (with holster)

Weight

355 g 624 g - with holster

Display Digital

6000 counts updates 4/sec. 19,999 counts in high-resolution mode

Display Analog

32 segments, updates 40/sec.

Display Frequency

19,999 counts, updates 3/sec at > 10 Hz

Warranty

Lifetime

Battery Life Alkaline

~400 hours typical, without backlight

Shock

1 Meter drop per IEC 61010-1:2001

Vibration

Per MIL-PRF-28800 for a Class 2 instrument
