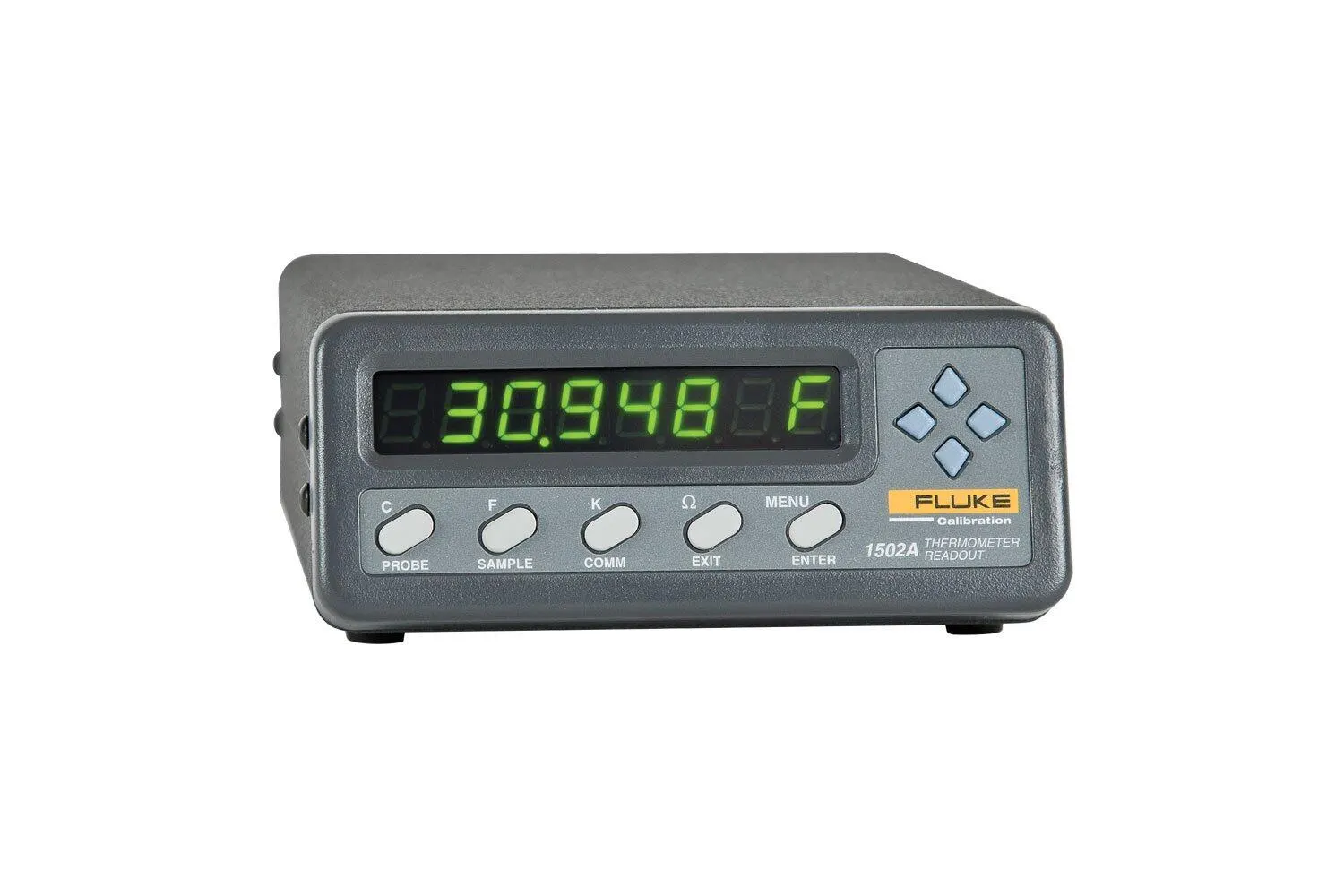

Fluke Calibration 1502A/1504 Thermometer Readout

The Fluke Calibration 1502A/1504 offers high-accuracy temperature measurement for reference and field calibration.

Manufacturer part number (MPN)

1648927

Brand

Fluke

Category

Tools

Specifications 1502A

1504

Temperature Range† −200 °C to 962 °C (−328 °F to 1764 °F)

Any thermistor range

Resistance Range 0 Ω to 400 Ω, auto-ranging

0 Ω to 1 MΩ, auto-ranging

Operating Temperature Range 16 °C to 30 °C

13 °C to 33 °C

Temperature Resolution 0.001 °C

0.0001 °C

Excitation Current 0.5 and 1 mA, user selectable, 2 Hz

2 and 10 µA, automatically selected

Measurement Period

1 second

Digital Filter

Exponential, 0 to 60 seconds time constant (user selectable)

Probe Connection

4-wire with shield, 5-pin DIN connector

Communications

RS-232 serial standard IEEE-488 (GPIB) optional

Display

8-digit, 7-segment, yellow-green LED; 0.5-inch-high characters

Power

115 VAC (±10 %), 50/60 Hz, 1 A, nominal 230 VAC (±10 %), 50/60 Hz, 1 A, nominal, specify

Size (HxWxD)

61 x 143 x 181mm (2.4 x 5.6 x 7.1 in)

Weight

1.0 kg (2.2 lb.)

Calibration

ISO 17025-accredited calibration provided

HS Code

9025.19
