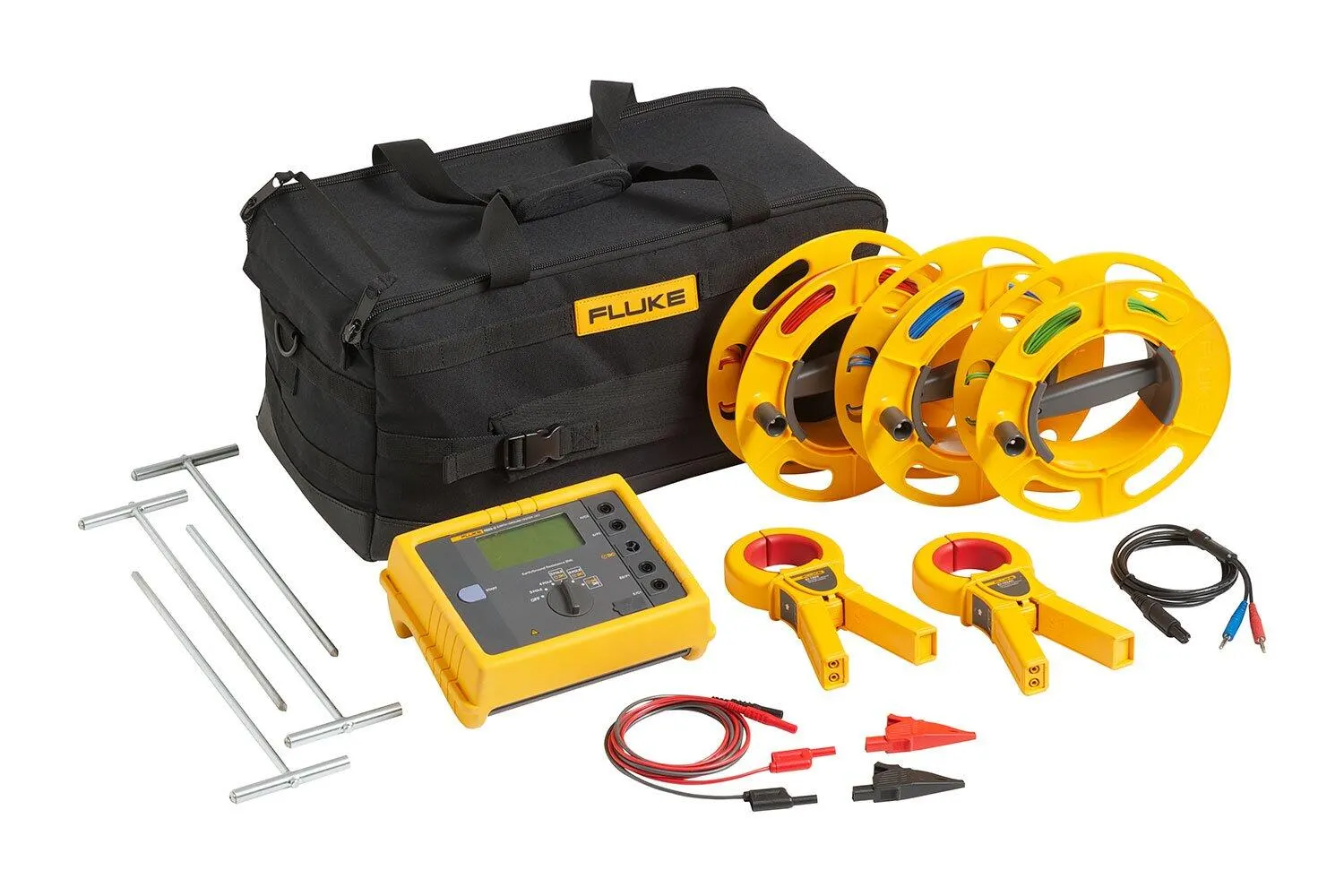

Fluke 1623-2 GEO Earth Ground Tester Kit

The Fluke 1623-2 Earth Ground Tester Kit offers fast, accurate earth ground tests using all 4 test methods. World class accessories speed set up and test time.

Manufacturer part number (MPN)

4325170

Brand

Fluke

Category

Tools

User interface

Instant measurement through TURN and START one button concept. The only operating elements are rotary switch and START button

Robust, water and dust resistant

Instrument is designed for tough environmental conditions (rubber protective cover, IP56)

Memory

Internal memory storage up to 1500 records accessible via USB port

Operating temperature

-10°C to 50°C (14°F to 122°F)

Storage temperature

-30°C to 60°C (-22°F to 140°F)

Temperature coefficient

±0.1% of reading/°C 28°C

Intrinsic error

Refers to the reference temperature range and is guaranteed for 1 year

Operating error

Refers to the operating temperature range and is guaranteed for 1 year

Climatic class

C1 (IEC 654-1), -5°C to +45°C (23° to +115° F), 5% to 95% RH

Protective type

IP56 for case, IP40 for battery door according to EN60529

Safety

Protection by double and/or reinforced insulation. max. 50 V to earth. IEC61010-1: Pollution degree 2

EMC (emission immunity)

IEC61326-1: Portable

Quality system

Developed, designed and manufactured according to DIN ISO 9001

External voltage

V ext, max = 24 V (DC, AC < 400 Hz), measurement inhibited for higher values

V ext rejection

> 120 dB (162⁄3, 50, 60, 400 Hz)

Measuring time

Typical 6 seconds

Max. overload

250 V rms (pertains to misuse)

Auxiliary power

6 x 1.5 V Alkaline (type AA LR6)

Battery life span

Typical > 3,000 measurements

Dimensions (W x H x D)

250 x 133 x 187 mm (9.75 x 5.25 x 7.35 in)

Weight

1.1 kg (2.43 lb) including batteries 7.6 kg (16.8 lb) incl. accessories and batteries in carrying case

Switch position

RA 3-pole

Resolution

0.001 Ω to 10 Ω

Measuring range

0.020 Ω to 19.99 kΩ

Accuracy

±(2% rdg + 3 d)

Measuring voltage

Vm = 48 V AC

Short-circuit current

> 50 mA

Measure frequency

128 Hz

Probe resistance (RS)

Max 100 kΩ

Auxiliary earth electrode resistance (RH)

Max 100 kΩ

Additional error from RH and RS

RH[kΩ]•••RS[kΩ]/RA[Ω]•••0.2%

Probe resistance (RS + RES)

Max 100 kΩ

Noise current (IEXT)

Max. IEXT = 10 A (AC) (RA < 20 Ω)

HS Code

9030.33
