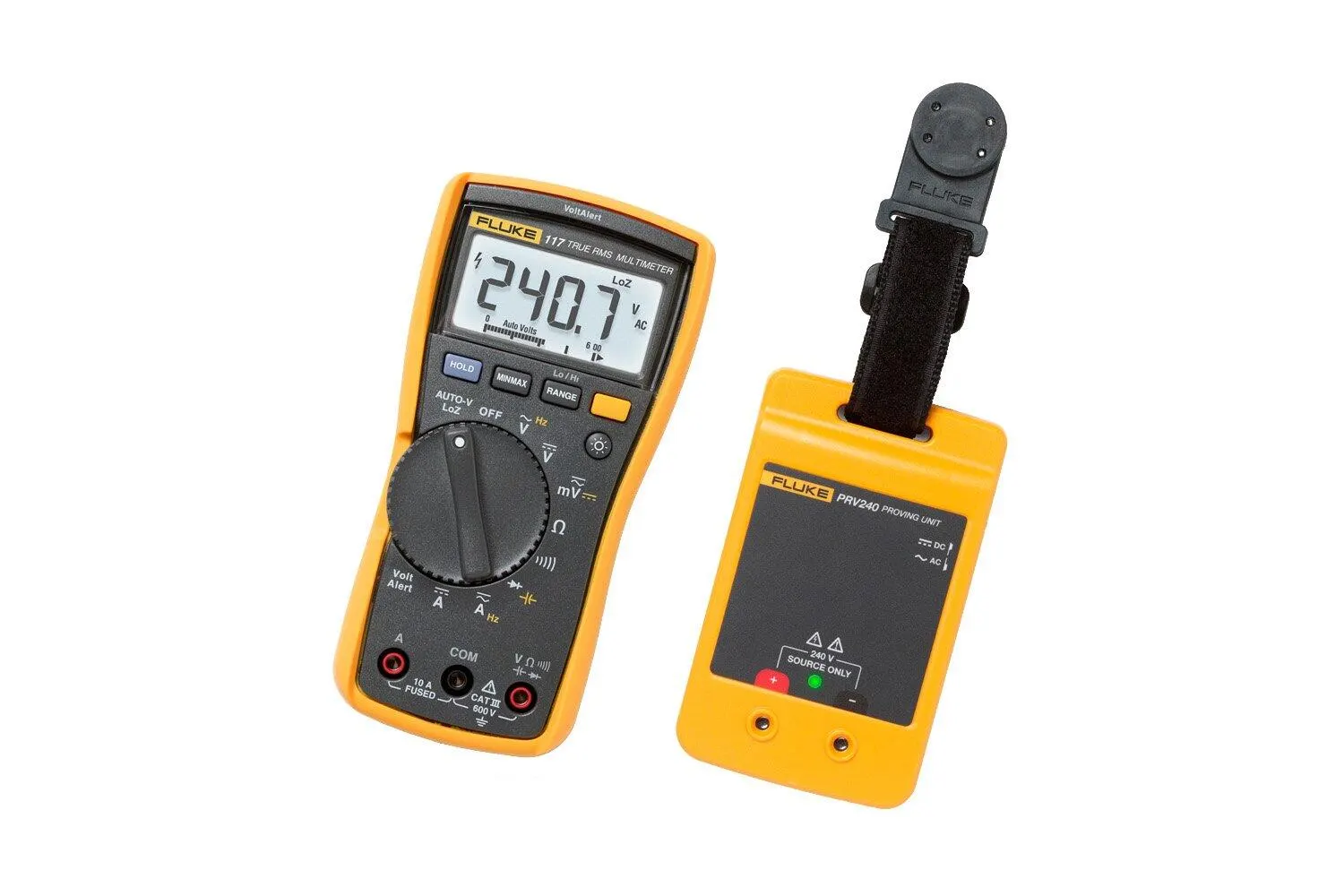

Fluke 117 Multimeter and PRV240 Proving Unit Kit

Includes Electrician’s Multimeter with Non-Contact Voltage and Fluke PRV240 Proving Unit

Manufacturer part number (MPN)

4636971 Brand: Fluke Category: Tools Maximum voltage between any terminal and earth ground: 600 V Safety: IEC 61010-1: Pollution Degree 2 IEC 61010-2-033: CAT III 600V Fuse for A input: 11 A, 1000 V FAST Fuse (Fluke PN 803293) Display: digital: 6,000 counts, updates 4 per second Bar graph: 33 segments, updates 32 per second Operating temperature: -10°C to +50°C Storage temperature: -40°C to +60°C Battery type: 9 volt Alkaline, IEC 6LR61 Battery life: 400 hours typical, without backlight DC millivolts Range/resolution: 600.0 mV / 0.1 mV DC millivolts Accuracy: ±([% of reading] + [counts]): 0.5% + 2 DC volts Range/resolution: 6.000 V / 0.001 V 60.00 V / 0.01 V 600.00 V / 0.1 V DC volts Accuracy: ±([% of reading] + [counts]): 0.5% + 2 Auto volts Range/resolution: 600.0 V / 0.1 V Auto volts Accuracy: 2.0% + 3 (DC, 45 Hz to 500 Hz) 4.0% + 3 (500 Hz to 1 kHz) AC millivolts¹ True RMS Range/resolution: 600.0 mV / 0.1 mV AC millivolts¹ True RMS Accuracy: 1.0% + 3 (DC, 45 Hz to 500 Hz) 2.0% + 3 (500 Hz to 1 kHz) AC volts¹ True RMS Range/resolution: 6.000 V / 0.001 V 60.00 V / 0.01 V 600.0 V / 0.1 V AC volts¹ True RMS Accuracy: 1.0% + 3 (DC, 45 Hz to 500 Hz) 2.0% + 3 (500 Hz to 1 kHz) Continuity Range/resolution: 600 Ω / 1 Ω Continuity Accuracy: Beeper on 250 Ω detects opens or shorts of 500 μs or longer. Ohms Range/resolution: Ohms Range/resolution 600.0 Ω / 0.1 Ω 6.000 kΩ / 0.001 kΩ 60.00 kΩ / 0.01 kΩ 600.0 kΩ / 0.1 kΩ 6.000 MΩ / 0.001 MΩ Ohms Accuracy: 0.9% + 1 Diode test Accuracy: 0.9% + 2 Capacitance Range/resolution: 1000 nF / 1 nF 10.00 μF / 0.01 μF 100.0 μF / 0.1 μF 9999 μF / 1 μF 100 μF to 1000 μF Capacitance Accuracy: 1.9% + 2 Lo-Z capacitance Range: 1 nF to 500 μF Lo-Z capacitance Accuracy: 10% + 2 typical AC amps True RMS (45 Hz to 500 Hz) Range/resolution: 6.000 A / 0.001 A 10.00 A / 0.01 A AC amps True RMS (45 Hz to 500 Hz) Accuracy: 1.5% + 3 20 A continuous overload for 30 seconds max DC amps Range/resolution: 6.000 A / 0.001 A 10.00 A / 0.01 A DC amps Accuracy: 1.0% + 3 20 A continuous overload for 30 seconds max Hz (V or A input)² Range/resolution: 99.99 Hz / 0.01 Hz 999.9 Hz / 0.1 Hz 9.999 kHz / 0.001 Hz 50.00 kHz / 0.01 Hz Hz (V or A input)² Accuracy: 0.1% + 2 Size: 167 x 84 x 46 mm (6.57 x 3.31 x 1.82 in) Weight: 550 g Warranty: 3 years Output voltage 240 V ac rms or dc: ± 10 % ≥ 1 MΩ LoZ >3 kΩ load: 60 V ac typical 50 V ac rms minimum LED power indicator: Turns on when output voltage is present Battery 4 AA Alkaline batteries NEDA: 24 A IEC LR03 Operating humidity: 0 % to 90 % (0 °C to 35 °C) 0 % to 70 % (35 °C to 55 °C) Operating altitude: 2000 m Dimensions: 11.7 cm x 7.4 cm x 2.8 cm (4.6 in x 2.9 in x 1.1 in), Pollution Degree 2 Electromagnetic Compatibility (EMC) IEC 61326-1: Portable EM environment; CISPR 11, Group 1, Class A Electromagnetic Compatibility (EMC) US (FCC): 47 CFR 15 subpart B, this product is considered an exempt device per clause 15.103 Electromagnetic Compatibility (EMC) Korea (KCC): Class A Equipment (Industrial Broadcasting & Communication Equipment)

HS Code

9030.33
