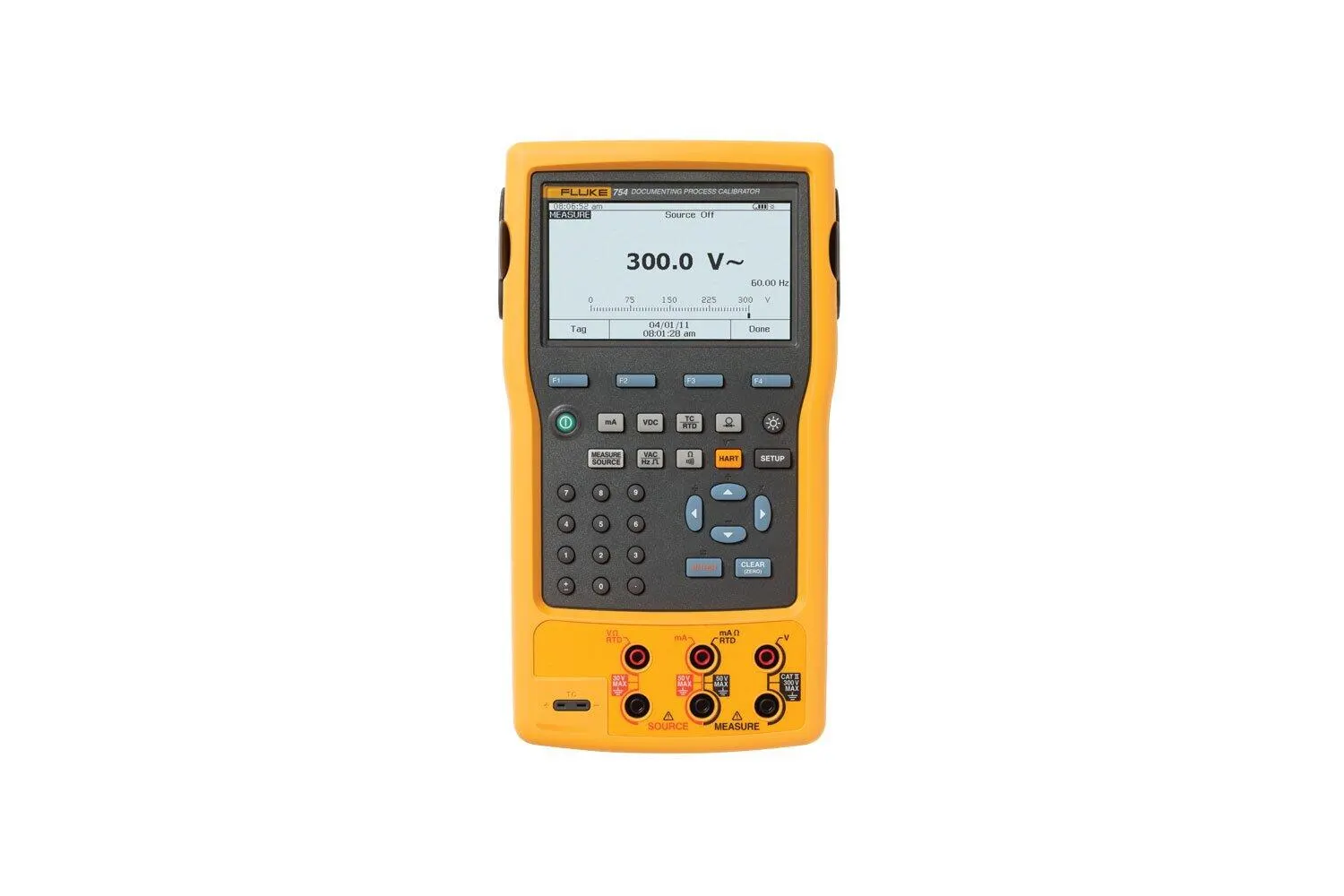

Fluke 754 Documenting Process Calibrator-HART

Calibrate, maintain, and troubleshoot HART and other instrumentation with the Fluke Calibration 754. Automate procedures and document results efficiently.

Manufacturer part number (MPN)

3405771 Brand: Fluke Category: Tools Voltage DC Range/ Resolution: 1 Year 100.000 mV 0.02% + 0.005 mV: 0.03% + 0.005 mV 3.00000 V 0.02% + 0.00005 V: 0.03% + 0.00005 V 30.0000 V 0.02% + 0.0005 V: 0.03% + 0.0005 V 300.00 V 0.05% + 0.05 V: 0.07% + 0.05 V Voltage AC 3.000 V (40 Hz to 500 Hz) / 0.001 V: 0.5% + 0.002 V 30.00 V (40 Hz to 500 Hz) / 0.01 V 0.5% + 0.02 V: 1.0% + 0.04 V 300.0 V (40 Hz to 500 Hz) / 0.1 V 0.5% + 0.2 V: 1.0% + 0.2 V Current DC 30.000 mA: 0.01% + 5 uA 110.00 mA 0.01% + 20 uA: 0.015% + 30 uA Resistance 10.000 Ω: 0.05% + 50 mΩ 100.00 Ω 0.05% + 50 mΩ: 0.07% + 70 mΩ 1.0000 kΩ 0.05% + 500 mΩ: 0.07% + 0.5 Ω 10.000 kΩ 0.1% + 10 Ω: 0.15% + 15 Ω Voltage DC 100.000 mV: 0.01% + 0.005 mV 1.00000 V 0.01% + 0.00005 V: 0.015% + 0.0005 V 15.0000 V 0.01% + 0.0005 V: 0.015% + 0.0005 V Current DC 22.000 mA (source): 0.01% + 0.003 mA Current sink (simulate) 0.02% + 0.007 mA: 0.04% + 0.007 mA 100.00 Ω 0.01% + 20 mΩ: 0.015% + 30 mΩ 1.0000 kΩ 0.02% + 0.2 Ω: 0.03% + 0.3 Ω 10.000 kΩ 0.02% + 3 Ω: 0.03% + 5 Ω Data log functions Measure functions: Voltage, current, resistance, frequency, temperature, pressure Data log functions Reading rate: 1, 2, 5, 10, 20, 30, or 60 readings/minute Data log functions Maximum record length: 8000 readings (7980 for 30 or 60 readings/minute) Ramp functions Source functions: Voltage, current, resistance, frequency, temperature Ramp functions Rate: 4 steps/second Ramp functions Trip detect: Continuity or voltage (continuity detection not available when sourcing current) Loop power function Voltage: Selectable, 26 V Loop power function Accuracy: 10%, 18 V minimum at 22 mA Loop power function Maximum current: 25 mA, short circuit protected Loop power function Maximum input voltage: 50 V DC Step functions Source functions: Voltage, current, resistance, frequency, temperature Step functions Manual step: Selectable step, change with arrow buttons Step functions Autostep: Fully programmable for function, start delay, stepvalue, time per step, repeat Operating temperature: -10°C to +50°C Storage temperature: -20°C to +60°C Dust/water resistance: Meets IP52, IEC 529 Operating altitude: 3000 m above mean sea level (9842 ft) Agency approvals: CAN/CSA C22.2 No 1010.1-92, ASNI/ISA S82.01-1994, UL3111, and EN610-1:1993 Size: 136 x 245 x 63 mm (5.4 x 9.6 x 2.5 in) Weight: 1.2 kg (2.7 lb) Batteries: Internal Battery Pack Li-ion: 7.2V,4400mAh, 30 Wh Battery life: >8 hours typical Battery replacement: Replace without opening calibrator; no tools required Side port connections: Pressure module connector Data storage capacity: 1 week of calibration procedures results 90 day specifications: The standard specification interval for the 750 Seriesare 1 and 2 years. Degrees or % of reading - Type (α) Range °C: Measure °C1 1 year: 2 year 100 Ω Pt (385) -200 to 100 100 to 800: 0.07°C 0.02% + 0.05°C 200 Ω Pt (385) -200 to 100 100 to 630: 0.07°C 0.02% + 0.05°C 500 Ω Pt (385) -200 to 100 100 to 630: 0.07°C 0.02% + 0.05°C 1000 Ω Pt (385) -200 to 100 100 to 630: 0.07°C 0.02% + 0.05°C 100 Ω Pt (3916) -200 to 100 100 to 630: 0.07°C 0.02% + 0.05°C 100 Ω Pt (3926) -200 to 100 100 to 630: 0.08°C 0.02% + 0.06°C 10 Ω Cu (427) -100 to 260: 0.2°C 120 Ω Ni (672) -80 to 260: 0.1°C Source current Source °C: Allowable current2 1 mA 0.05°C 0.0125% + 0.04°C: 0.10°C 0.025% + 0.08°C 500 μA 0.06°C 0.017% + 0.05°C: 0.12°C 0.034% + 0.10°C 250 μA 0.06°C 0.017% + 0.05°C: 0.12°C 0.034% + 0.10°C 150 μA 0.06 C 0.017% + 0.05°C: 0.12 C 0.034% + 0.10°C 3 mA 0.2°C: 0.4°C 1 mA 0.04°C: 0.08°C Type Source °C: Measure °C E -250 to -200: 1.3 N -200 to -100: 1.0 J -210 to -100: 0.6 K -200 to -100: 0.7 T -250 to -200: 1.7 B 600 to 800: 1.3 R -20 to 0: 2.3 S -20 to 0: 2.3 C 0 to 800: 0.6 L -200 to -100: 0.6 U -200 to 0: 0.6 BP 0 to 1000: 1.0 XK -200 to 300: 0.2

HS Code

9031.80

• OEM-URL https://www.fluke.com/en-us/product/calibration-tools/multifunction-calibrators/fluke-754
