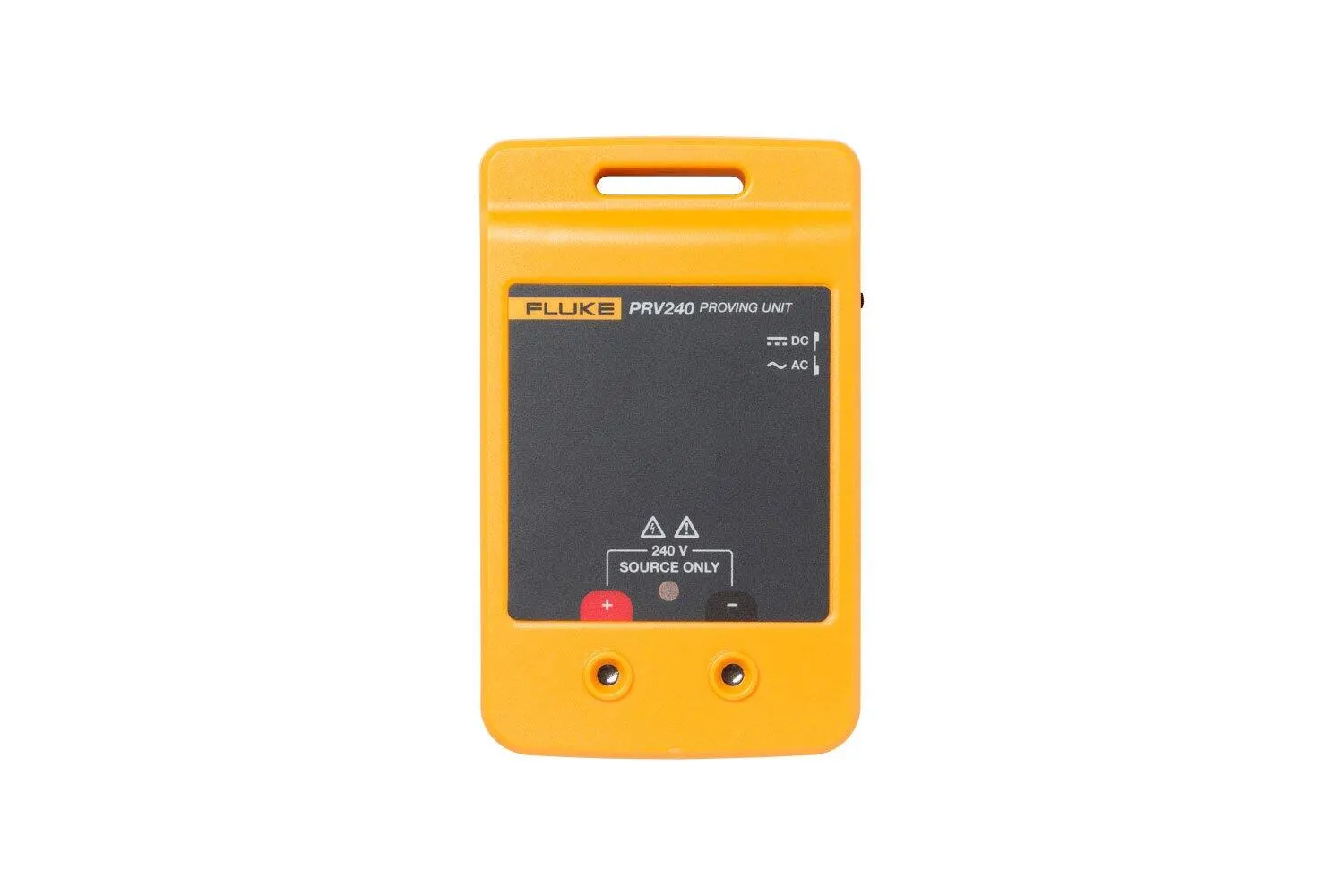

Fluke PRV240 Proving Unit

The Fluke PRV240 is pocket-size proving unit that allows you to easily and safely verify that your multimeters, clamp meters and voltage testers are functioning correctly for AC and DC voltage measurements.

Manufacturer part number (MPN)

4566209 Brand: Fluke Category: Tools Output voltage 240 V ac rms or dc: ± 10 % ≥ 1 MΩ LoZ >3 kΩ load: 60 V ac typical 50 V ac rms minimum LED power indicator: Turns on when output voltage is present Battery 4 AA Alkaline batteries NEDA: 24 A IEC LR03 Battery life: 5000 (5-second duration) test cycles with >1 MΩ load, 300 tests minimum with >3 kΩ load Operating temperature: -10 °C to +50 °C Operating humidity: 0 % to 90 % (0 °C to 35 °C) 0 % to 70 % (35 °C to 55 °C) Operating altitude: 2000 m Dimensions: 11.7 cm x 7.4 cm x 2.8 cm (4.6 in x 2.9 in x 1.1 in), Pollution Degree 2 Weight: 0.23 kg (8 oz) includes batteries Safety: IEC61010-1, IEC61010-2-030 Warranty: One-year Electromagnetic Compatibility (EMC) IEC 61326-1: Portable EM environment; CISPR 11, Group 1, Class A Electromagnetic Compatibility (EMC) US (FCC): 47 CFR 15 subpart B, this product is considered an exempt device per clause 15.103 Electromagnetic Compatibility (EMC) Korea (KCC): Class A Equipment (Industrial Broadcasting & Communication Equipment)

• OEM-URL https://www.fluke.com/en-us/product/electrical-testing/basic-testers/prv240-proving-unit
