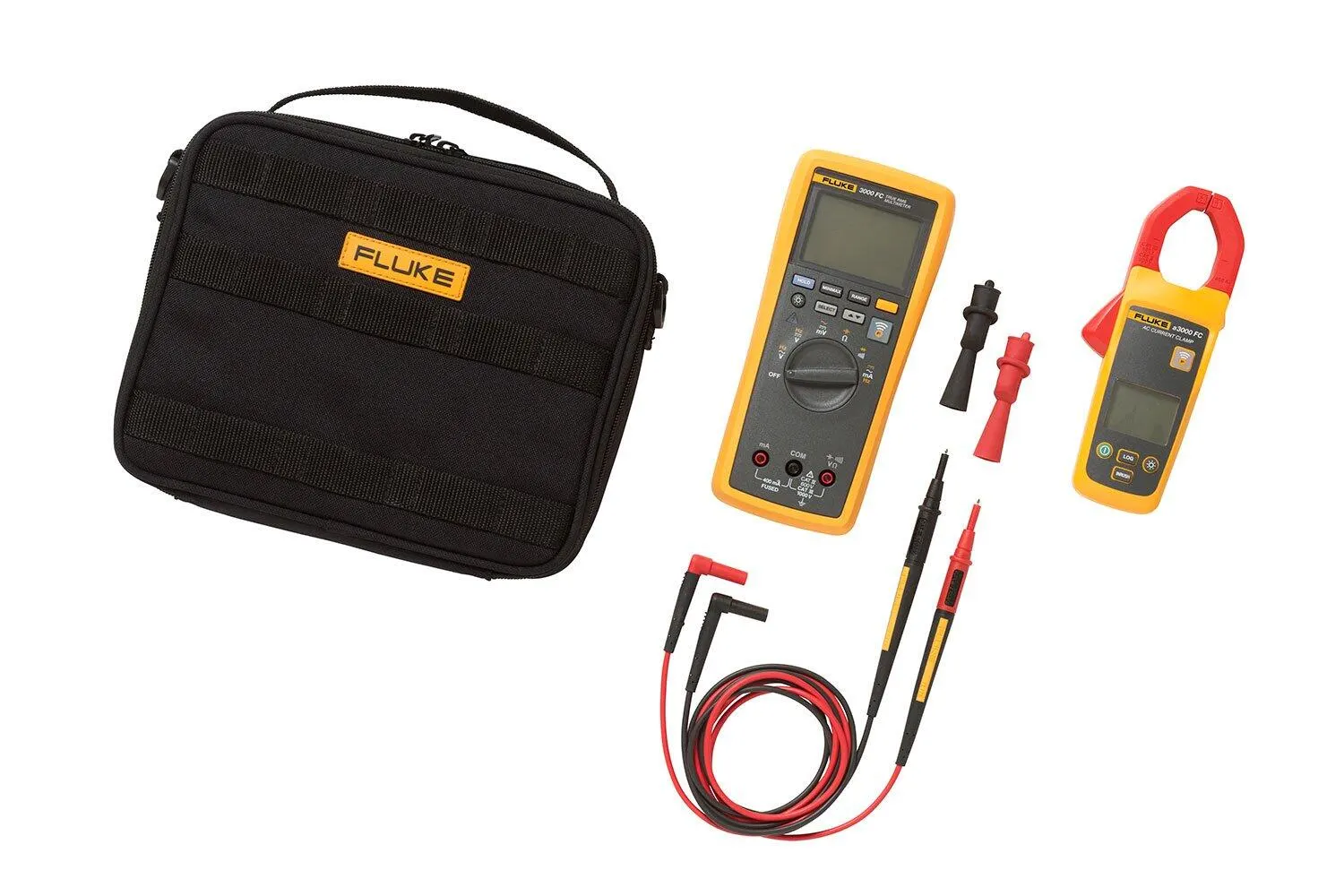

Fluke A3000 FC Wireless AC Current Clamp Kit

Fluke Connect Wireless test tools show real-time measurements from remote modules up to 20 meters away. Simultaneous readings on a single screen.

Manufacturer part number (MPN)

4465618 Brand: Fluke Category: Tools Accuracy2 3 4 45 Hz to 500 Hz: 1.0% + 3 Accuracy2 3 4 500 Hz to 1 kHz: 2.0% + 3 mV Range / resolution: 600.0 mV / 0.1 mV mV Accuracy: 0.09% + 2 V Range / resolution: 6.000 V / 0.001 V 60.00 V / 0.01 V 600.0 V / 0.1 V 1000 V / 1 V V Accuracy: 0.09% + 2 0.15% + 2 ))) Range / resolution: 600 Ω / 1 Ω ))) Accuracy: Meter beeps at < 25 Ω, beeper detects opens or shorts of 250 μs or longer. Diode test Range / resolution: 2.000 V / 0.001 V Diode test Accuracy: 1% + 2 µF Range / resolution: 1000 nF / 1 nF 10.00 μF / 0.01 μF 100.0 μF / 0.1 μF 9999 μF1 / 1 μF µF Accuracy: 1.2% + 2 10% typical mA AC (45 Hz to 1 kHz) Range1 / resolution: 60.00 mA / 0.01 mA 400.0 mA3/ 0.1 mA mA AC (45 Hz to 1 kHz) Accuracy: 1.5% + 3 mA DC2 Range1 / resolution: 60.00 mA / 0.01 mA 400.0 mA3/ 0.1 mA mA DC2 Accuracy: 0.5% + 3 Accuracy1: 0.1% + 1 Overload protection: 1100 Vrms Input impedance (nominal): > 10 MΩ < 100 pF Common mode rejection ratio (1 kΩ unbalance): > 120 dB at DC, 50 Hz or 60 Hz Normal mode rejection: > 60 dB at 50 Hz or 60 Hz Full scale voltage to 6 MΩ Full scale voltage 50 MΩ: < 0.7 VDC < 0.9 VDC Typical short circuit current: < 350 mA Overload: 600 mA overload for 2 minutes maximum, 10 minutes rest minimum DC functions: ±12 counts for changes > 350 mS in duration. AC functions: ±40 counts for changes > 900 mS in duration. Maximum voltage between any terminal and earth ground: 1000 VDC or AC rms Ω fuse protection from A inputs: 0.44 A (44/100 A, 440 mA), 1000 V FAST Fuse, Fluke specified part only Display (LCD) Update rate: 4/sec Display (LCD) Volts, amps, ohms: 6000 counts Display (LCD) Frequency: 10,000 counts Capacitance: 1,000 counts Battery type: Three AA Alkaline batteries, NEDA 15A IEC LR6 Battery life: 250 hours minimum RF communications: 2.4 GHZ ISM Band RF communication range Open air, unobstructed: Up to 20 m RF communication range Obstructed, sheetrock wall: Up to 6.5 m Obstructed, concrete wall, or steel electrical enclosure: Up to 3.5 m Temperature Operating: -10°C to 50°C Temperature Storage: -40°C to 60°C Temperature coefficient: 0.1 x (specified accuracy) / °C ( 28°C) Relative humidity: 0% to 90% (0°C to 35°C) 0% to 75% (35°C to 40°C) 0% to 45% (40°C to 50°C) Altitude Operating: 2,000 m Altitude Storage: 12,000 m Electromagnetic compatibility EMI, RFI, EMC, RF: EN 61326-1:2006, EN 61326-2-2:2006 ETSI EN 300 328 V1.7.1:2006, ETSI EN 300 489 V1.8.1:2008 FCC Part 15 Subpart C Sections 15.207, 15.209, 15.249 FCCID : FCC: T68-FDMMBLE IC: 6627A-FDMMBLE Safety compliance: ANSI/ISA 61010-1 / (82.02.01): 3rd edition CAN/CSA-C22.2 No 61010-1-12: 3rd edition UL 61010-1: 3rd edition IEC/EN 61010-1:2010 Certifications: CSA, FCC, CE Ingress Protection (IP) rating: IP54 Pollution Degree: 2 Size (H x W x L): 4.75 x 9.3 x 20.7 cm (1.87 x 3.68 x 8.14 in) Weight: 340 g (12 oz) Warranty: Three years Range: 0.5 A to 400.0 A Resolution: 0.1 A Inrush Max displayed reading: 999.9A Crest factor (50 Hz / 60 Hz): 3 at 500 A 2.5 at 600 A 1.42 at 1000 A Add 2% for C.F. > 2 LCD w/backlight: 3½ digits Log rate/interval: 1 sec minimum/adjustable by PC Memory: Record up to 65,000 readings Operating temperature: -10°C to +50°C Storage temperature: -40°C to +60°C Operating humidity: 90% at 35°C 75% at 40°C 45% at 50°C EMC: EN 61326-1:2006 Safety rating: CAT III 600 V Jaw opening: 34 mm (1.33 in) Size (H x W x D): 20.3 x 7.49 x 3.55 cm (8 x 2.95 x 1.4 in)

HS Code

9030.33

• OEM-URL https://www.fluke.com/en-us/product/electrical-testing/clamp-meters/fluke-a3000-fc-kit
