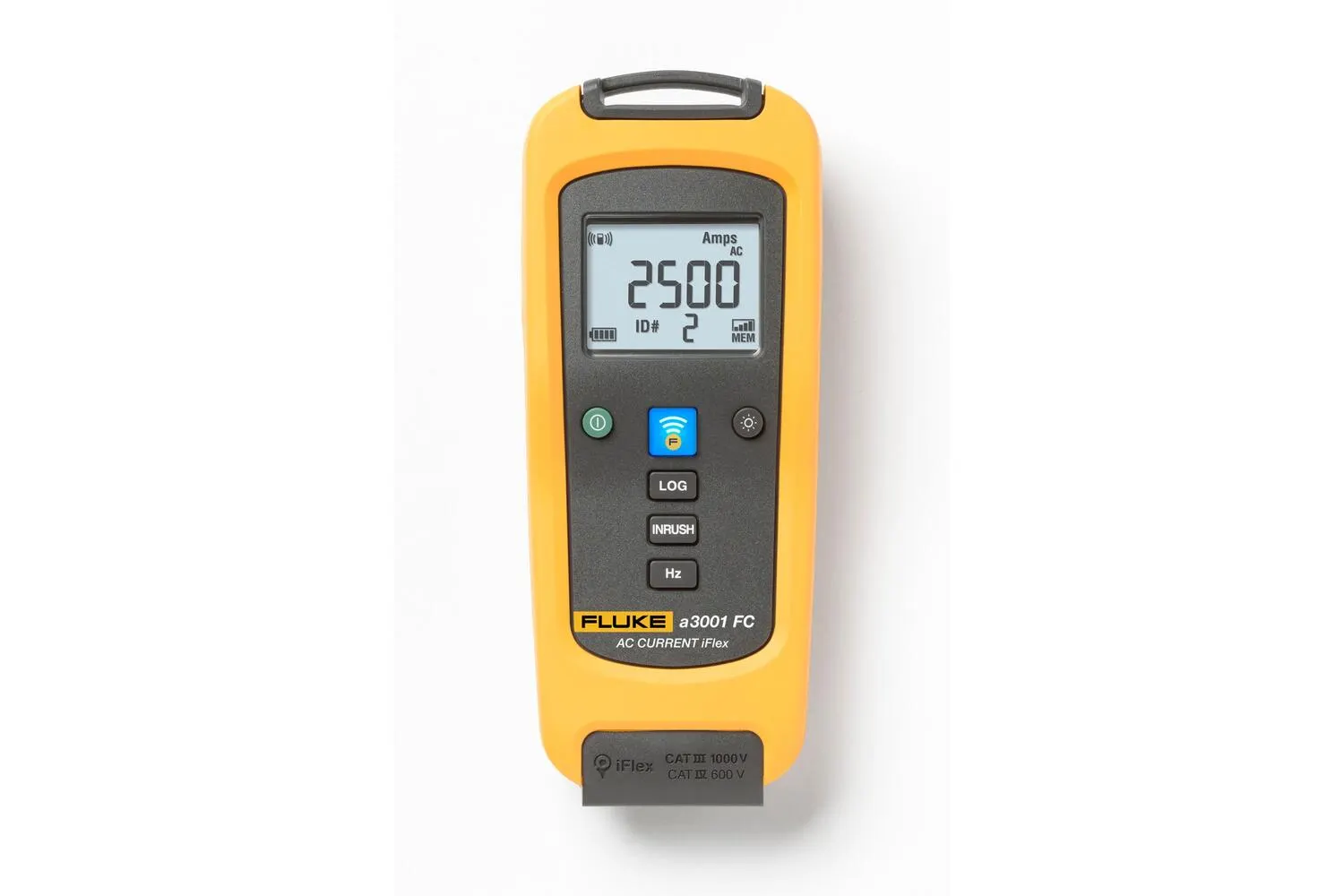

Fluke A3001 FC Wireless iFlex® AC Current Module

Connect and leave your Fluke a3001 FC Wireless iFlex® AC Current Module current meter logging data so you can easily take 3-phase measurements in 1/3 of the time.

Manufacturer part number (MPN)

4459439 Brand: Fluke Category: Tools Range: 0.5 A to 2500 A AC Resolution: 0.1 A Accuracy: 3% ± 5 digits (5 Hz to 500 Hz) Crest factor (50 Hz/60 Hz): 3.0 at 1100 A 2.5 at 1400 A 1.42 at 2500 A Add 2% for C.F. > 2 LCD w/backlight: 3½ digits Log rate/interval: 1 sec minimum/adjustable by PC or front panel Battery type: 2 AA, NEDA 15 A, IEC LR6 Battery life: 400 hours Memory: Record up to 65,000 readings RF communications: 2.4 GHZ ISM Band RF communication range Open air, unobstructed: Up to 20 m RF communication range Obstructed, sheetrock wall: Up to 6.5 m Obstructed, concrete wall or steel electrical enclosure: Up to 3.5 m Operating temperature: -10°C to +50°C Storage temperature: -40°C to +60°C Temperature coefficient: Add 0.1 X (specified accuracy) / °C ( 28°C) Operating humidity: 90% at 35°C 75% at 40°C 45% at 50°C Altitude Operating: 2,000 m Altitude Storage: 12,000 m EMC: EN 61326-1:2006 Safety compliance: IEC 61010-1, 600 V CAT IV/1000 V CAT III, 3rd edition Safety rating: CAT IV 600 V, CAT III 1000 V Certifications: CSA, CE, FCC: T68-FBLE IC: 6627A-FBLE Ingress Protection (IP) rating: IP42 Pollution Degree: 2 Jaw opening: 25.4 cm (10 in) coil Size (HxWxD): 16.5 cm x 6.35 cm x 1.4 cm (6.5 in x 2.5 in x 1.4 in) Weight: .22 kg (8 oz) Warranty: Three years

• OEM-URL https://www.fluke.com/en-us/product/electrical-testing/clamp-meters/fluke-a3001-fc
