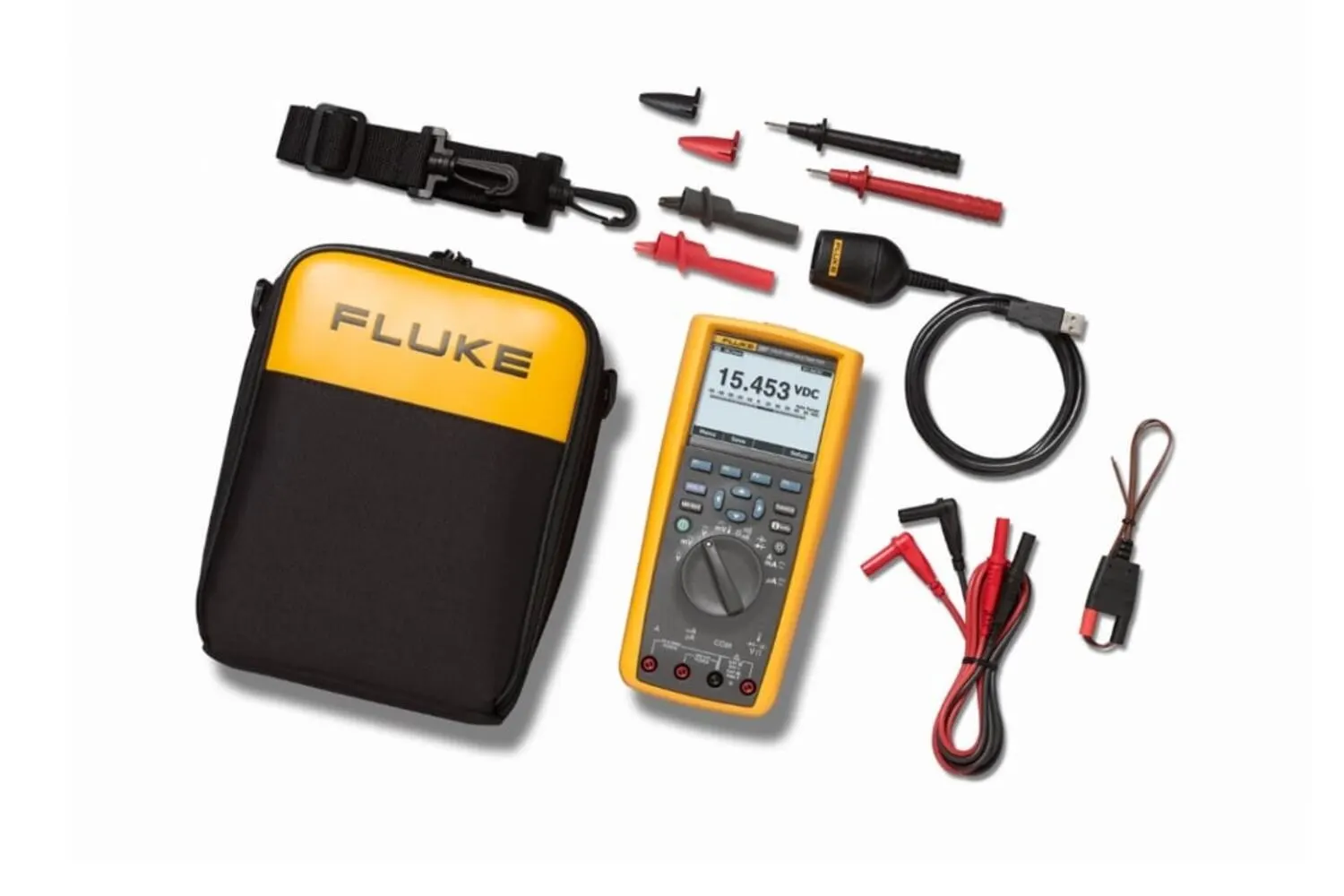

Fluke 287 FlukeView® Forms Combo Kit

The Fluke 287 electronics multimeter allows you to log and zoom in on problems. Now compatible with the Fluke Connect mobile app.

Manufacturer part number (MPN)

3340186 Brand: Fluke Category: Tools DC volts Range / resolution: 50.000 mV, 500.00 mV, 5.0000 V, 50.000 V, 500.00 V, 1000.0 V DC volts Basic accuracy: 0.025% AC volts Range / resolution: 50.000 mV, 500.00 mV, 5.0000 V, 50.000 V, 500.00 V, 1000.0 V AC volts Basic accuracy: 0.4% (True-RMS) DC current Range / resolution: 500.00 μA, 5000.0 μA, 50.000 mA, 400.00 mA, 5.0000 A, 10.000 A DC current Basic accuracy: 0.05% AC current Range / resolution: 500.00 μA, 5000.0 μA, 50.000 mA, 400.00 mA, 5.0000 A, 10.000 A AC current Basic accuracy: 0.6% (True-RMS) Temperature (excluding probe) Range / resolution: -200.0°C to 1350.0°C (-328.0°F to 2462.0°F) Temperature (excluding probe) Basic accuracy: 1.0% Resistance Range / resolution: 500.00 Ω, 5.0000 kΩ, 50.000 kΩ, 500.00 kΩ, 5.0000 MΩ, 50.00 MΩ, 500.0 MΩ Resistance Basic accuracy: 0.05% Capacitance Range / resolution: 1.000 n, 10.00 nF, 100.0 nF, 1.000 μF, 10.00 μF, 100.0 μF, 1000 μF, 10.00 mF, 100 mF Capacitance Basic accuracy: 1.0% Frequency Range / resolution: 99.999 Hz, 999.99 Hz, 9.9999 kHz, 99.999 kHz, 999.99 kHz Frequency Basic accuracy: 0.005% Connectivity: Optional infrared connector via Fluke ir3000 FC Maximum voltage between any terminal and earth ground: 1000 V Battery type: 6 AA alkaline batteries, NEDA 15A IECLR6 Battery life: 100 hours minimum, 200 hours in logging mode Temperature Operating: -20°C to 55°C Temperature Storage: -40°C to 60°C Relative humidity: 0 to 90% (0 to 37°C), 0 to 65% (37°C to 45°C), 0 to 45% (45°C to 55°C) Electromagnetic compatibility: EMC EN61326-1 Vibration: Random vibration per MIL-PRF-28800F Class 2 Shock: 1 meter drop per IEC/EN 61010-1 3rd Edition Size (H x W x L): 22.2 x 10.2 x 6 cm (8.75 x 4.03 x 2.38 in) Weight: 870.9 g (28 oz) Multiple on screen displays: Yes True-RMS AC bandwidth: 100 kHz dBV/dBm: Yes DC mV resolution: 1 μV Megohm range: Up to 500 MΩ Conductance: 50.00 nS Continuity beeper: Yes Battery/fuse access: Yes/Yes Elapse time clock: Yes Time of day clock: Yes Min-max-avg: Yes Peak: 250 μs Duty cycle: 0.01% to 99.99% Pulse width: 0.025 ms, 0.25 ms, 2.5 ms, 1250.0 ms Hold: Yes Isolated optical interface: Yes Auto/touch hold: Yes Reading memory: Yes Log to PC: Yes Interval/event logging: Yes Logging memory: Up to 10,000 readings Wireless connectivity (optional): Yes

• OEM-URL https://www.fluke.com/en-us/product/electrical-testing/digital-multimeters/fluke-287-fvf-kit
