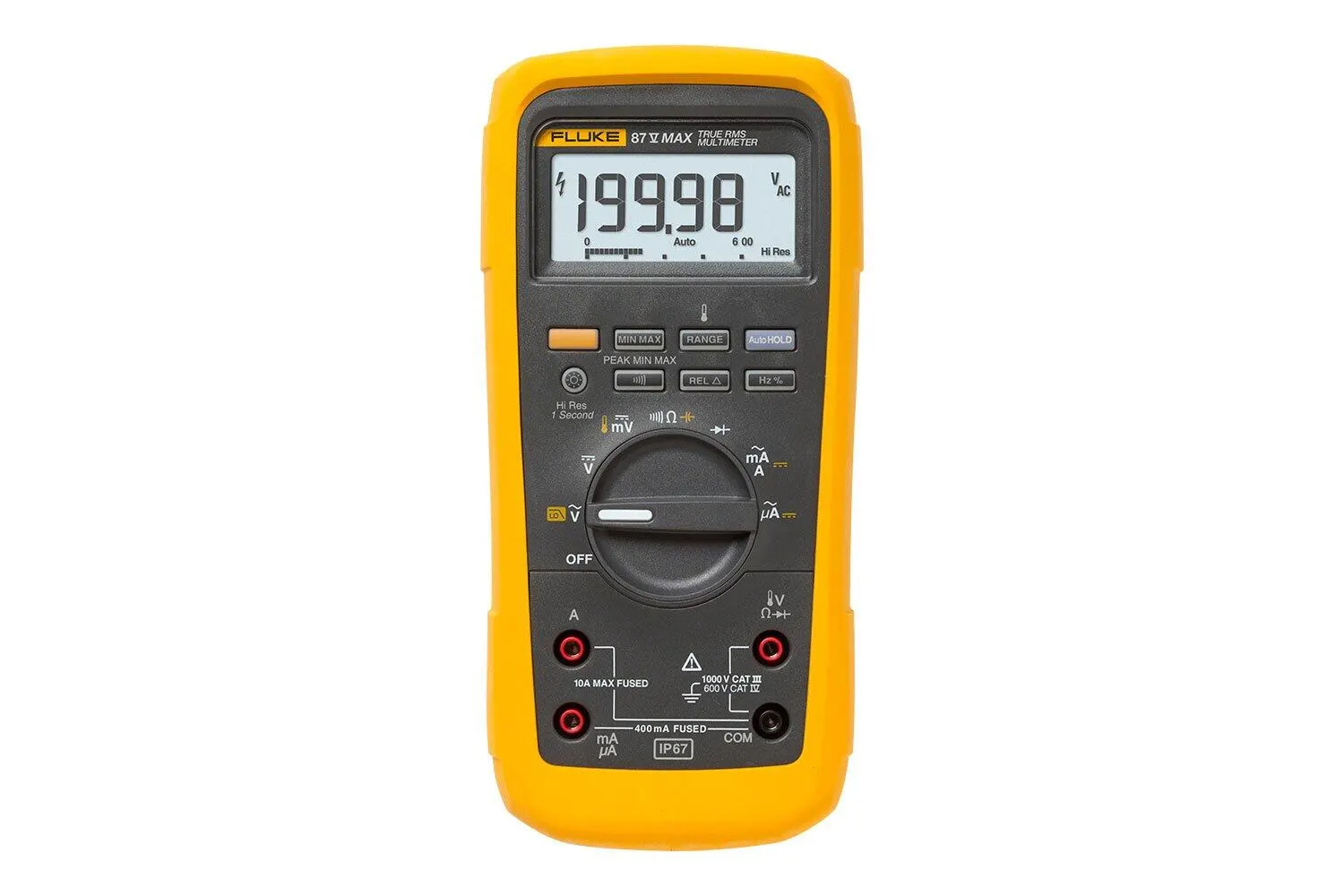

Fluke 87V MAX True-rms Digital Multimeter

The Fluke 87V MAX multimeter contains all the trusted features of the popular 87V, plus IP67 Withstands drops up to 4-meters (13 feet) with industrial strength casing and holster and more.

Manufacturer part number (MPN)

5140033

Brand

Fluke

Category

Tools

Fluke 87V MAX True-rms Digital Multimeter

Fluke 87V Industrial Multimeter

IP rating IP 67

IP 30

Battery life 800 hours

400 hours

Drop test 4 meters

3 meters

Backlit keypad Yes

No

DC Voltage Range

0.1 mV to 1000 V

DC Voltage Accuracy

±(0.05% + 1)

DC Voltage Maximum resolution

0.1 mV

AC Voltage Range

0.1 mV to 1000 V

AC Voltage Accuracy

±(0.7% + 4) true-rms

AC Voltage AC bandwidth

20 kHz with low pass filter; 3 dB @ 1 kHz

AC Voltage Maximum resolution

0.1 mV

DC Current Range

0.1 μA to 10 A (20 A for 30 seconds maximum)

DC Current Amps accuracy

±(0.2% + 2)

DC Current Maximum resolution

0.1 µA

AC Current Range

0.1 μA to 10 A (20 A for 30 seconds maximum)

AC Current Amps accuracy

±(1.0% + 2) true-rms

AC Current Maximum resolution

0.1 µA

Resistance Range

0.1 Ω to 50 MΩ

Resistance Accuracy

±(0.2% + 1)

Resistance Maximum resolution

0.1 Ω

Capacitance Range

0.01 nF to 9999 μF

Capacitance Accuracy

±(1% + 2)

Capacitance Maximum resolution

0.01 nF

Frequency Range

0.5 Hz to 199.99 kHz

Frequency Accuracy

±(0.005% + 1)

Frequency Maximum resolution

0.01 Hz

Duty cycle Maximum duty cycle

99.9%

Duty cycle Accuracy

±(0.2% per kHz + 0.1%)

Duty cycle Maximum resolution

0.1%

Temperature measurement range

–200.0 °C to 1090 °C –328.0 °F to 1994.0 °F excluding probe

80 BK temperature probe

–40.0 °C to 260 °C, ± 2.2 °C or 2% whichever is greater –40.0 °F to 500 °F, ± 4.0 °F or 2% whichever is greater

Conductance Maximum conductance

60.00 nS

Conductance Accuracy

±(1.0% + 10)

Conductance Maximum resolution

0.01 nS

Diode test Range

2 V

Diode test Resolution

0.001V

Diode test Accuracy

±(1% + 1)

Diagnostics and data storage Peak Min/Max

250 μS

Diagnostics and data storage Min/Max/Avg

Yes

Diagnostics and data storage Reading hold/Auto (Touch) Hold

Yes

Diagnostics and data storage Relative reference

Yes

Display Digital

6000 counts updates 4/second 19,999 counts in high–resolution mode

Display Analog bar graph

32 segments, updates 40/second

Display Backlight

Two level

Low pass filter (VFD measurements)

Yes

Input Alert™

Yes

Safety rating

IEC61010-1: Pollution Degree 2 IEC 61010-2-033: CAT IV 600 V, CAT III 1000 V

Agency approvals

CE, CSA

IP rating

IEC 60529: IP67

Power

Three AA batteries. 800 hours typical, without backlight

Size

6.0 x 10.1 x 21.5 cm (with holster)

Weight

698.5 g (with holster)

Warranty

Limited lifetime

Operating temperature

-15 °C to 55 °C, to -40 °C for 20 minutes when taken from 20 °C

Storage temperature

-40 °C to + 60 °C

Humidity (without condensation)

0% – 90% (0 °C – 35 °C) 0% – 70% (35 °C – 55 °C)

Operating altitude

2000 m

HS Code

9030.33

• OEM-URL https://www.fluke.com/en-us/product/electrical-testing/digital-multimeters/87v-max
