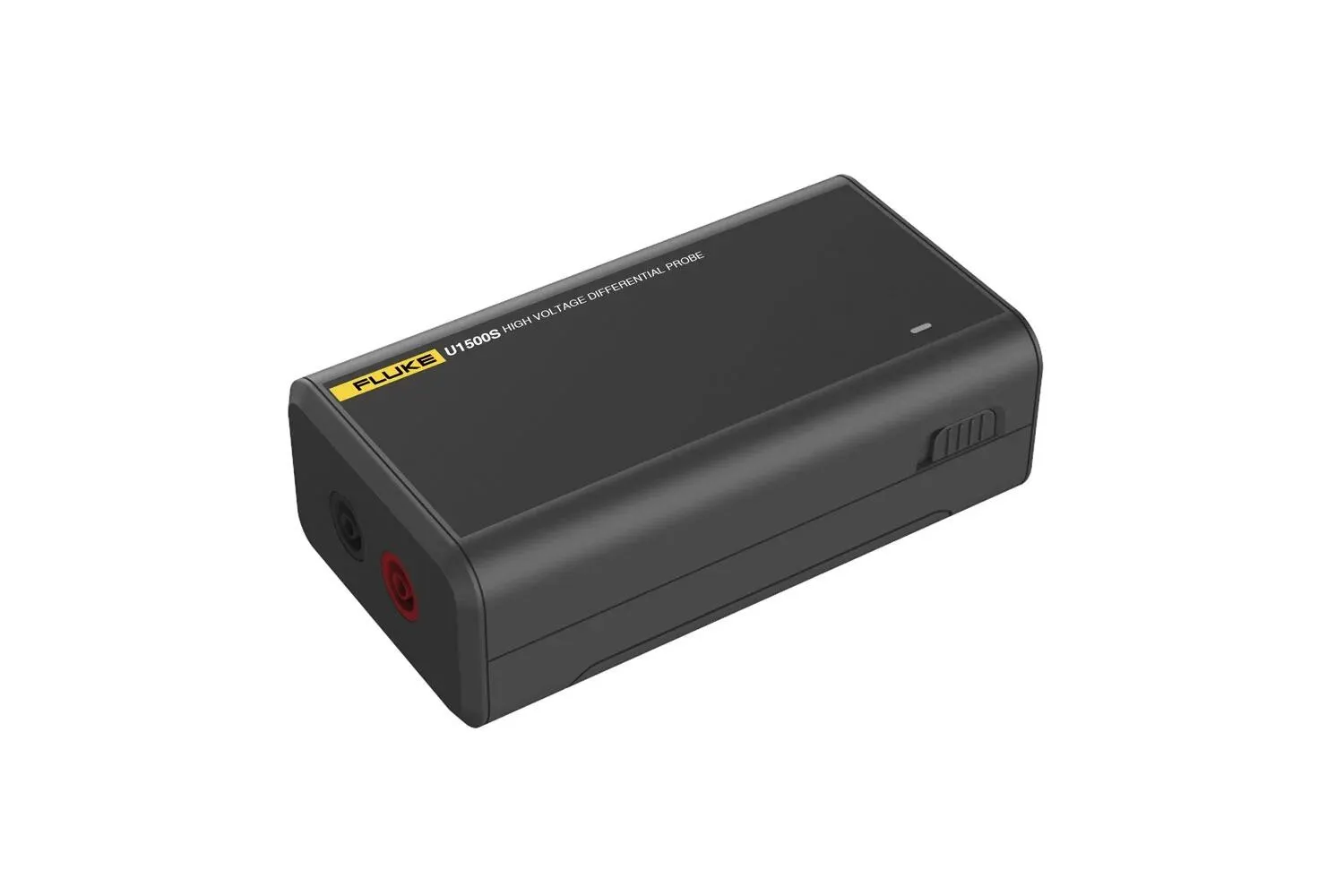

Fluke U1500S High Voltage Differential Probe

The Fluke U1500S 1,500V DC Voltage Sensor allows you to safely connect to DC bus bars at up to 1.5kV, connects to the instrument voltage input.The voltage can be scaled in the instrument to provide results in real units.

Manufacturer part number (MPN)

5132942

Brand

Fluke

Category

Tools

Modules

U1500s

Maximum Voltage

1000 V ac rms, continous, 1500 V dc (Single-range)

Dimensions

138 mm x 75 mm x 45 mm

Weight

295 g, battery included

Input teminal

4 mm banana jacks

Output terminal

BNC (female)

Accessory Cable

BNC to Banana, 1.6 m

Ingress Protection

IEC 60529: IP40 (Terminals Mated)

Battery Type

4 AA, IEC LR6

Battery Life

168 hours (typical)

Indicator

Low battery flashes red Working flashes green

Operating Temperature

-10 °C to 50 °C

Storage Temperature

-30 °C to 60 °C

Operating Humidity

Non-condensing (<10 °C) ≤ 90 % RH (at 10 °C to 30 °C) ≤ 75 % RH (at 30 °C to 40 °C) ≤ 45 % RH (at 40 °C to 50 °C)

Operating Altitude

2000 m

Storage Altitude

12 000 m

Safety General

IEC 61010-1: Pollution Degree 2

Safety Measurement

IEC 61010-2-030: CAT III 1000 V, CAT IV 600 V, DC 1500 V

Measurement Range

1000 V ac rms, 1500 V dc

Accuracy

0.1 % of reading +0.1 % of Range

Bandwidth

100 kHz (Max)

Input Impedance

2M Ω/ <10pF

Scale

4 mV/V

Common Mode Rejection Ratio

60 dB at 50 Hz

Temperature Coefficients

0.05 % / °C (28 °C)

Over-range Protection

10 % over range
