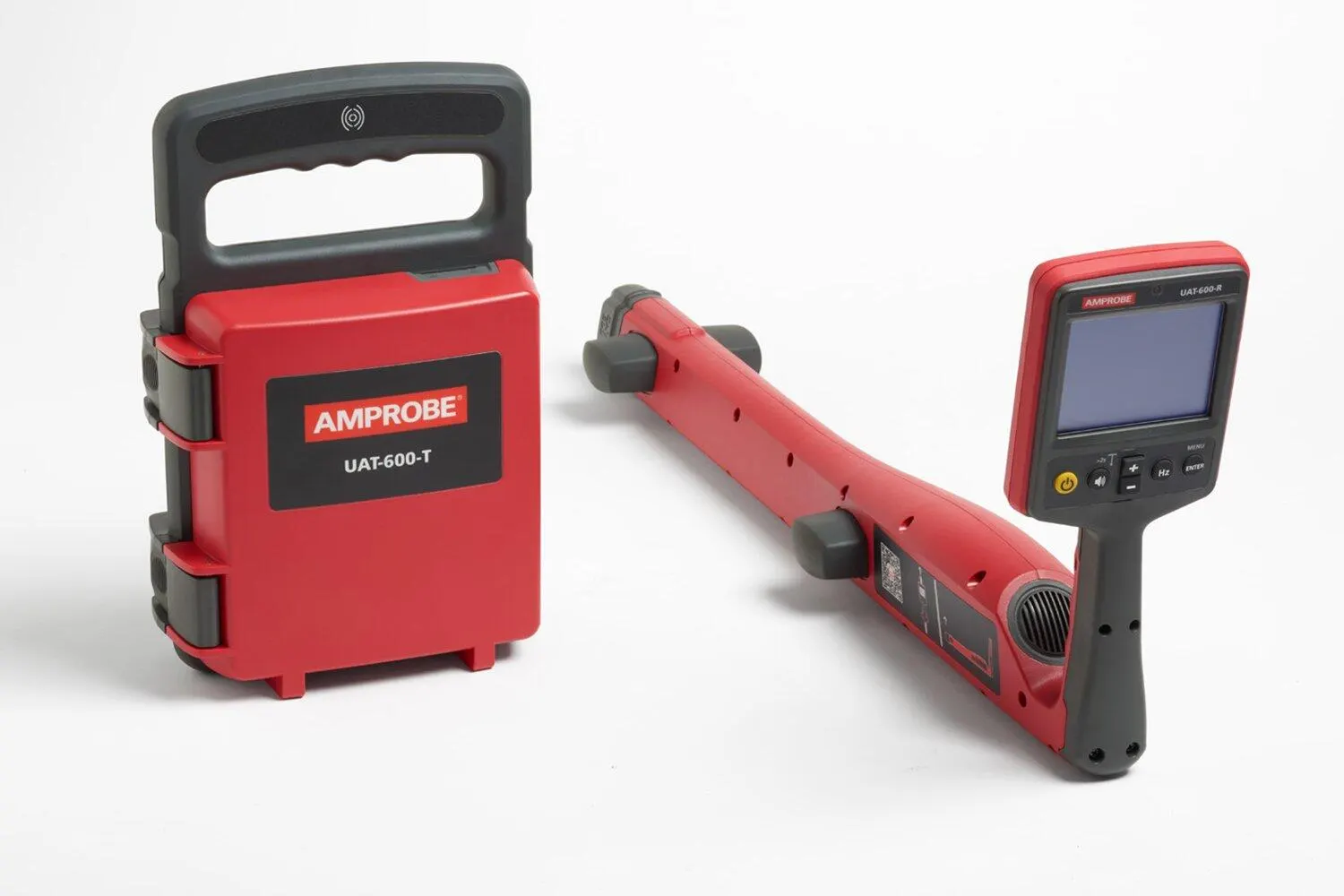

Amprobe UAT-610 Underground Utilities Locator Kit

Designed for electricians with a CAT IV 600 V rating, the UAT-610 Underground Utilities Locator detects buried cables up to 20 feet deep. This kit includes a transmitter, receiver, test lead kit, batteries and additional fuses, in a protective duffle bag.

Manufacturer part number (MPN)

4994380

Brand

Fluke

Category

Tools

Features UAT-600-R Receiver

UAT-600-T Transmitter

Measurement category

CAT IV 600 V

Operating voltage/current 0 to 600 V

0 to 600 V, 100 A max.

Display backlight Automatic

Yes

Audio indication Increasing closer to the signal

Fast beeps showing the better signal is applied

Transmitting mode power output -

Max. 3 watts

Output voltage -

Max. 50 V rms

Output current -

Max. 250 mA rms, constant current in 5 steps

Mains voltage measurement -

0 V to 600 V, 50 Hz to 60 Hz Resolution: 1 V Accuracy: pm; 10%

Resistance measurement (De-energized circuit) -

0 ohm; to 999 k ohm; Range: 0 ohm; to 999 ohm; (resolution: 5 ohm;) Range: 1 k ohm; to 999 k ohm; (resolution: 1 k ohm;) Accuracy: pm; 10%

Output hazardous voltage warning -

≥ 30 V rms

Mains hazardous voltage warning -

≥ 30 V rms

4.3 in, 320 x 240 BW outdoor LCD display with auto backlight

LCD display (LED backlight) 2.4 in x 1.3 in

Update rate Instantaneous

Current (mA): 10 ms Voltage (V): 15 ms Resistance ( ohm;): 330 ms

Operating temperature and humidity

-4 °F to 122 °F (-20 °C to 50 °C), ≤90% RH

Storage temperature and humidity

-40 °F to 140 °F (-40 °C to 60 °C), ≤90% RH

Operating altitude

< 6561 ft (< 2000 m)

Water and dust resistance

IP54

Drop proof

3.28 ft (1 m)

Power supply (6) 1.5 V AA alkaline batteries

(8) 1.5 V D cell alkaline batteries

Battery life Approx. 35 hours at 70 °F (21 °C) (Typical)

Approx. 16 hours at 70 °F (21 °C) (Typical)

Overload protection -

600 V rms Fuse FF 500 mA, 1000 V, IR 30 kA, Φ6.3×32 mm

Approx. 11.9 x 4.7 x 30.7 in (302 x 120 x 779 mm)

Approx. 14 x 9 x 4.7 in (355 x 230 x 120 mm)

Weight Approx. 4.2 lb (1.9 kg) (batteries installed)

Approx. 7.0 lb (3.2 kg) (batteries installed)
