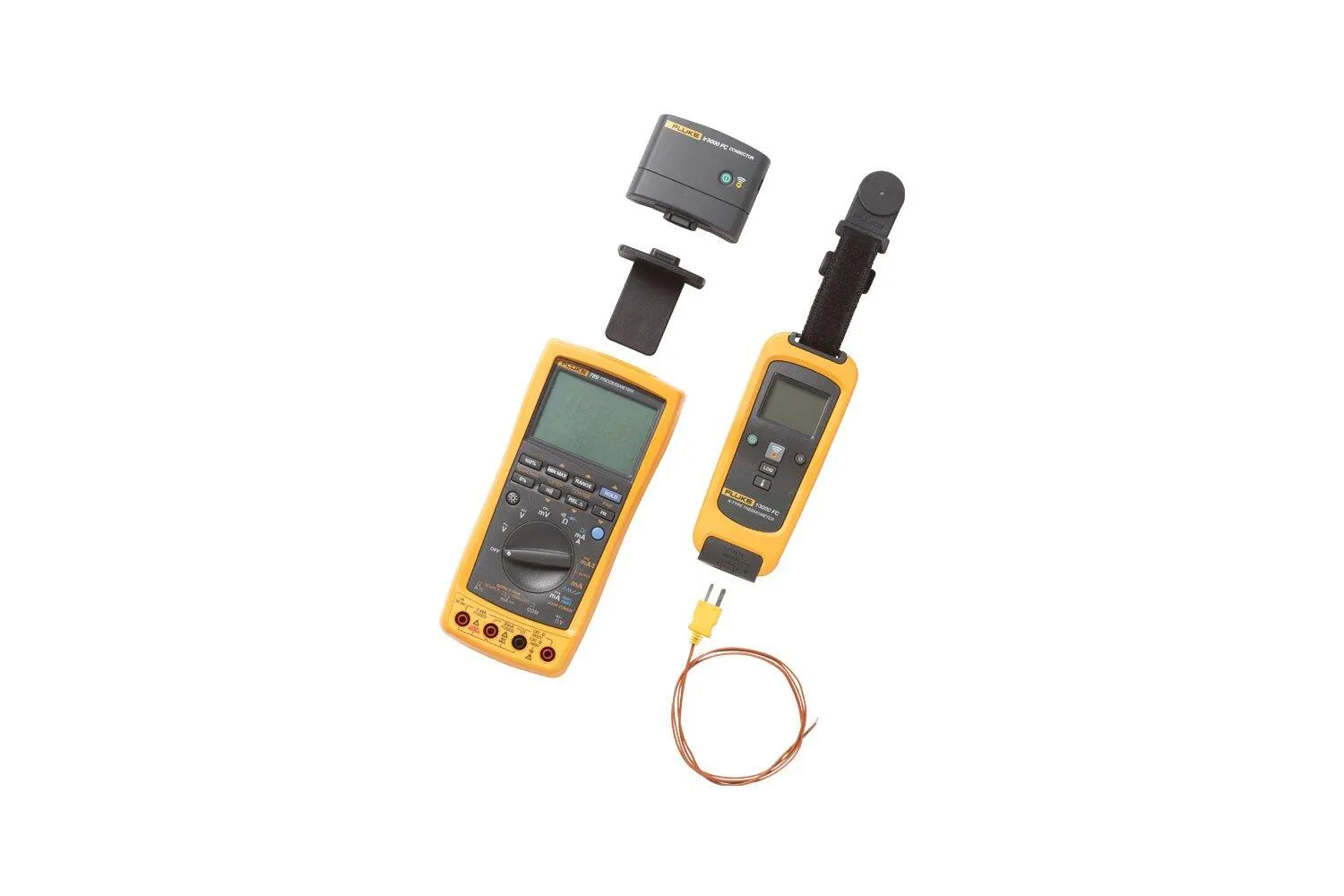

Fluke 789 FC ProcessMeter™ and Temperature Kit

The Fluke 789 ProcessMeter is the ultimate troubleshooting tool for electricians and instrumentation professionals, combining the functionality of a loop calibrator with the power of a digital multimeter.

Manufacturer part number (MPN)

4489241 Brand: Fluke Category: Tools Current measurement Range: 0-1 A AC or DC Current measurement Resolution: 1 mA Current measurement Accuracy: 0.2% + 2 LSD (DC) Current sourcing Range: 0-20 mA or 4-20 mA Current sourcing Resolution: 0.05% of span Current sourcing Drive capability: 24 V Compliance or 1200 Ω @ 20 mA Frequency: to 19.999 kHz, 0.005% + 1 LSD Continuity: Beeps for resistance < 100 Ω Voltage measurement Range: 0-1000 V AC (true-rms) or DC Voltage measurement Resolution: 0.1 mV to 1.0 V Voltage measurement Accuracy: 0.1% Rdg + 1 LSD (V DC) Resistance measurement: to 40 MΩ, 0.2% + 1 LSD Diode test: 2.0 V shoes diode voltage drop Display current and % of span: Yes Auto Step, Auto Ramp: Yes Operating temperature: -20°C to 55°C Storage temperature: -40°C to 60°C Humidity (without condensation): 95% up to 30°C 75% up to 40°C 45% up to 50°C 35% up to 55°C Temperature coefficient: 0.05 x (specified accuracy) per °C (for temperatures 28°C) Electrical safety: Designed in accordance with IEC 1010-1, ANSI/ISA S82.01-1994 and CAN/CSA C22.2 No 1010.1-92 Overvoltage category: IEC 1010-1 CAT III 1000 V IEC 1010-1 CAT IV 600 V Maximum voltage: 1000 V RMS Size (H x W x L): 50 x 100 x 203 mm (1.25 x 3.41 x 7.35 in) Weight: 610 g (1.6 lbs) Batteries: 4 AA alkaline batteries Warranty: 3 years Battery life: 140 hours typical (measurement), 10 hours typical (sourcing 20 mA) Shock and vibration: Random, 2 g, 5-500 Hz 1 meter drop test Range K-Type: -200°C to 1372°C Resolution: 0.1°C Accuracy: ±[0.5% + 0.5°C] counts Input terminals: K-type mini LCD w/backlight: 3 ½ digits Log rate/interval: 1 sec minimum/adjustable by PC Battery type: 2 AA, NEDA 15 A, IEC LR6 Memory: Record up to 65,000 readings RF communications: 2.4 GHZ ISM Band RF communication range Open air, unobstructed: Up to 20 m RF communication range Obstructed, sheetrock wall: Up to 6.5 m Obstructed, concrete wall or steel electrical enclosure: Up to 3.5 m Temperature scale: ITS-90 Operating humidity: 90% at 35°C, 75% at 40°C, 45% at 50°C Altitude Operating: 2,000 m Altitude Storage: 12,000 m EMC: EN 61326-1:2006 Safety compliance: IEC 61010-1, CAT I, 3rd edition Pollution Degree 2 Certifications: CSA, CE, FCC: T68-FBLE IC: 6627A-FBLE Ingress Protection (IP) rating: IP42 Pollution Degree: 2 Size (H x W x D): 16.5 x 6.35 x 1.4 cm (6.5 x 2.5 x 1.4 in)

• OEM-URL https://www.fluke.com/en-us/product/temperature-measurement/ir-thermometers/fluke-789-fc-t3000-kit
