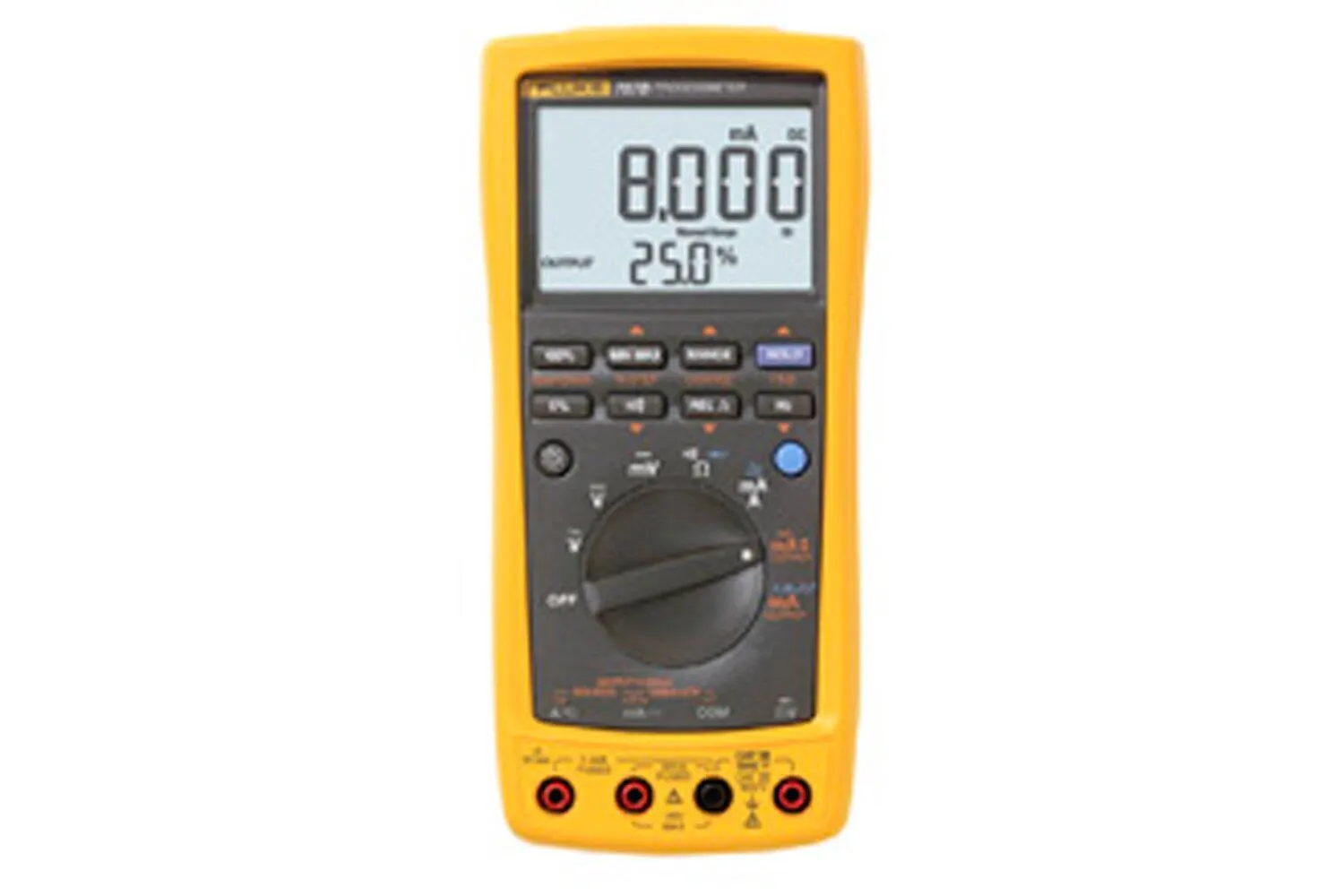

Fluke 787B ProcessMeter™

The Fluke 787B ProcessMeter™ Digital multimeter combines a DMM & mA loop calibrator into a single, cost-effective, rugged, hand-held test tool. Get details.

Manufacturer part number (MPN)

4777186

Brand

Fluke

Category

Tools

Measurement function Range and resolution

Best accuracy (% of reading + LSD)

V dc 400.0 mV, 4.000 V, 40.00 V, 400.0 V, 1000 V

0.1% + 1

V ac (true-rms) 400.0 mV, 4.000 V, 40.00 V, 400.0 V, 1000 V

0.7% + 2

mA dc 30.000 mA

.05% + 2

A dc 1.000 A (0.440 A continuous)

0.2% + 2

A ac 1.000 A (0.440 A continuous)

1% + 2

400.0 Ohms, 4.000 k, 40.00 k, 400.0 k, 4.0 M, 40 M

0.2% + 1

199.99 Hz, 1999.9 Hz, 19.999 kHz

.005% + 1

Diode test 2.000 V (shows diode voltage drop)

2% + 1

Continuity

Beeps for resistance

Output function Range and resolution

Drive capability

Current adjustment modes

Manual: Coarse, Fine, 25% and 100% step

Maximum voltage applied between any jack and earth ground

1000 V RMS

Storage temperature

-40 °C to 60 °C

Operating temperature

-20 °C to 55 °C

Temperature coefficient

0.05 x (specified accuracy) per °C (for temperatures 28 °C)

Relative humidity

95% up to 30 °C; 75% up to 40 °C; 45% up to 50 °C; 35% up to 55 °C

Vibration

Random, 2 g, 5-500 Hz

Shock

1 meter drop test

Safety

IEC61010-1, Pollution Degree 2/IEC61010-2-033, CAT IV 600 V/CAT III 1000 V

Size (HxWxL)

50 x 100 x 203 mm (1.97 x 3.94 x 8.00 in)

Weight

600 g (1.3 lbs)

Battery

Four AA alkaline batteries

Battery life

140 hours typical (measurement), 10 hours typical (sourcing 12 mA)

Warranty

Three years
