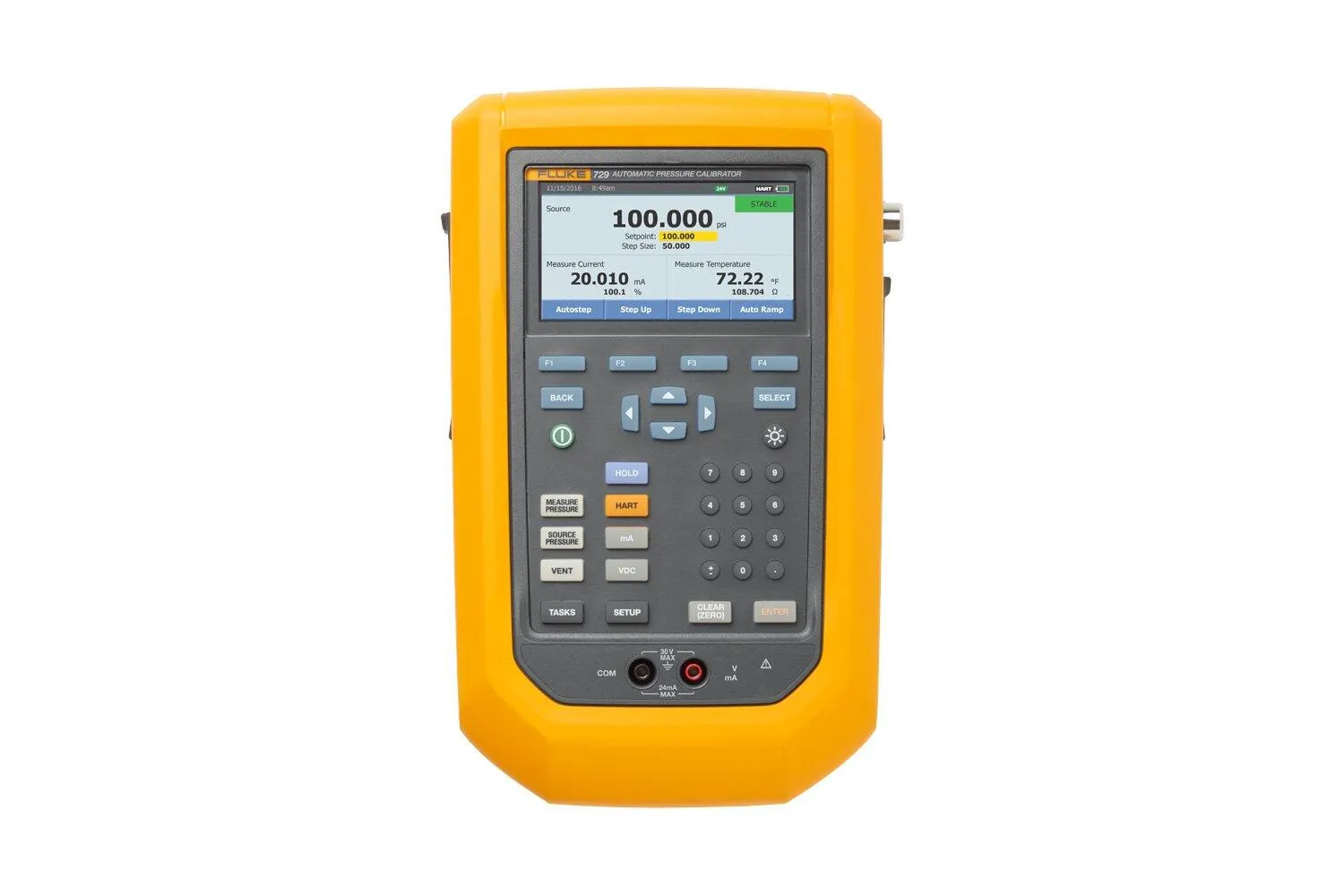

Fluke 729 Automatic Pressure Calibrator

The handheld Fluke 729 Automatic Pressure Calibrator simplifies the calibration process up to 300 psi & provides faster, more accurate results. See specs.

Manufacturer part number (MPN)

4856990

Brand

Fluke

Category

Tools

729 30G Psi range, resolution

-12.0000 to 30.0000 psi

Bar range, resolution

-0.82737 to 2.06842 bar

kPa range, resolution

-82.737 to 206.843 kPa

Comment

No wireless communication

Psi range, resolution

-12.000 to 150.000 psi

mA measure, source and simulate

0 mA to 24 mA

Volts dc measure

0 V dc to 30 V dc

mA dc source, simulate and measure

1 μA

Voltage dc measurement

1 mV

Accuracy

0.01% ±2 LSD all ranges (at 23 °C ±5 °C)

Stability

20 ppm of full scale /°C from -10 °C to +18 °C and 28 °C to +50 °C

mA simulate external voltage requirement

12 V dc to 30 V dc

Loop compliance voltage

24 V dc @ 20 mA

Temperature measurement only/100 Ω Pt(385) RTD

-50 °C to 150 °C (-58 °F to 302 °F)

Temperature resolution

0.01 °C (0.01 °F)

Temperature accuracy

±0.1 °C (0.2 °F) ±0.25 °C (±0.45 °F) combined uncertainty when using 720 RTD probe (optional accessory)

Drive capability

1200 Ω without HART resistor, 950 Ω with internal HART resistor

Size (HxWxL)

7 x 27.94 x 17.27 cm (2.75 x 11 x 6.8 in)

Weight

6.5 lbs., 2.95 kg

Ingress protection

IP54

Operating temperature

-10 °C to 50 °C for measurement, 0 °C to 50 °C for pressure control

Operating temperature with battery

-10 °C to 40 °C

Storage temperature

-40 °C to 60 °C

Operating altitude

3000 m

Storage altitude

13000 m

Radio frequency certification

FCC ID: T68-FBLE IC:6627A-FBLE

Wireless radio frequency range

2412 MHz to 2462 MHz

HS Code

9031.80

• OEM-URL https://www.fluke.com/en-us/product/calibration-tools/pressure-calibrators/fluke-729
