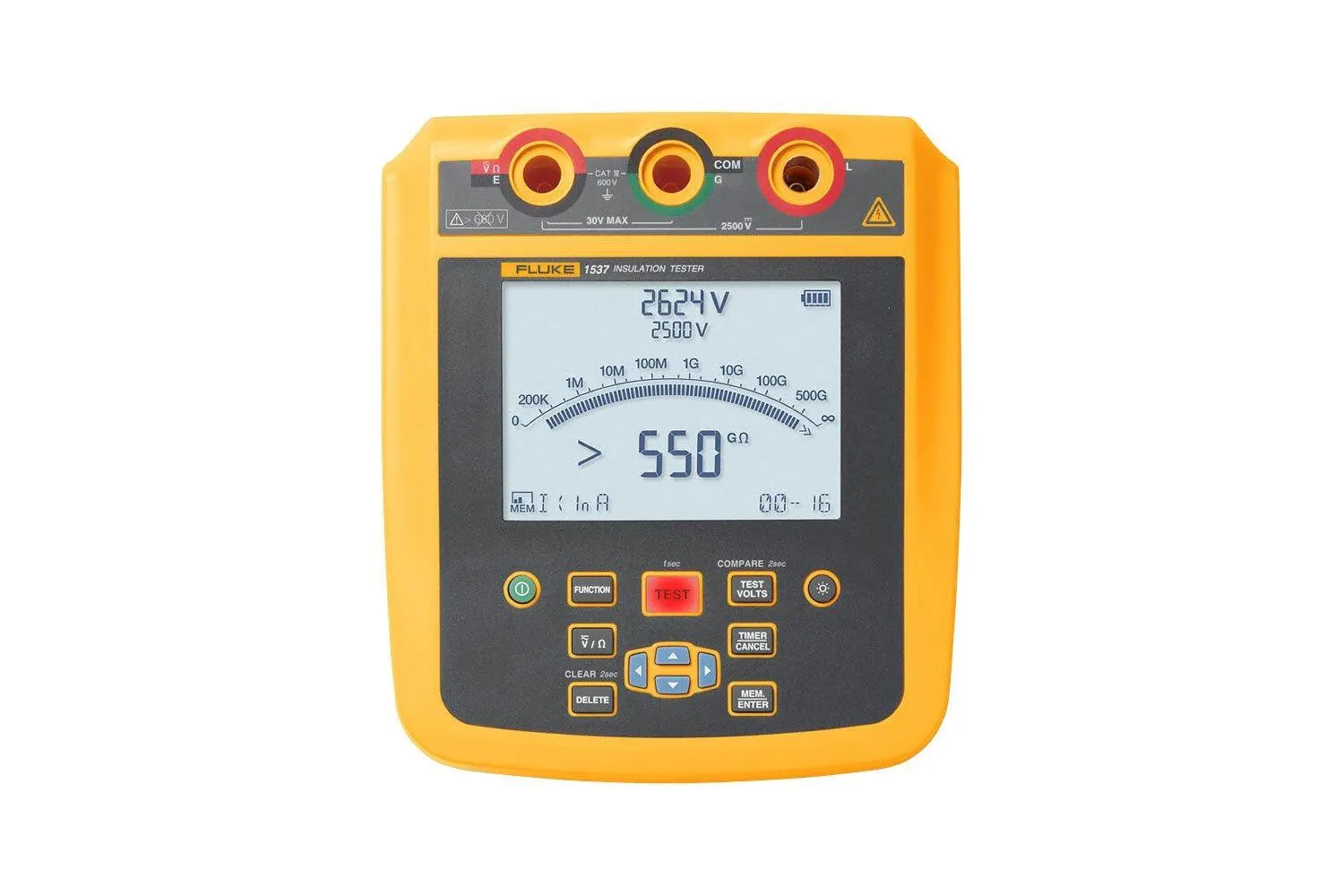

Fluke 1535 and 1537 Insulation Resistance Tester and Megohmmeters
Pricing
Request a quote
We reply within 24 hours
Product Description
The Fluke 1535 and 1537 high-voltage insulation resistance testers and megohmmeters are engineered for precision, safety, and comprehensive electrical diagnostics.
Technical Specifications
- Manufacturer part number (MPN)
- 5592405
- Brand
- Fluke
- Category
- Tools
- Display
- 73.5 mm x 104 mm
- Battery
- 8 AA alkaline cells, IEC LR6
- Dimensions (H x W x L)
- 184 mm x 211 mm x 93 mm
- Weight
- 1.3 kg
- Operating temperature
- -10 °C to +50 °C
- Storage temperature
- -20 °C to +60 °C
- Operating humidity
- Non-condensing (<10 °C) ≤80 % RH (10 °C to 30 °C) ≤50 % RH (30 °C to 50 °C)
- Operating altitude
- 2000 m
- Storage altitude
- 12000 m
- Overvoltage category
- CAT IV 600 V
- General
- IEC 61010-1, Pollution Degree 2 IEC 61557-1
- Measurement
- IEC 61010-2-030: CAT IV 600 V IEC 61010-2-034: 2500 V dc
- Insulation resistance measurement
- IEC 61557-1, IEC 61557-2
- IP Rating
- IEC 60529 IP40
- International
- IEC 61326-1: Electromagnetic environment for portable equipments IEC 61326-2-2 CISPR 11: Group 1, Class A
- Test voltage Range
- Resolution
- 250 V <200 kΩ
- Unspecified
- 200 kΩ to 500 kΩ 1 kΩ
- 5 %
- 0.50 MΩ to 5.00 MΩ .01 MΩ
- 5 %
- 5.0 MΩ to 50.0 MΩ 0.1 MΩ
- 5 %
- 50 MΩ to 500 MΩ 1 MΩ
- 5 %
- 0.50 GΩ to 5.00 GΩ 0.01 GΩ
- 5 %
- 5.0 GΩ to 50.0 GΩ 0.1 GΩ
- 20 %
- 500 V <200 kΩ
- Unspecified
- 5.0 GΩ to 10.0 GΩ 0.1 GΩ
- 5 %
- 10.0 GΩ to 50.0 GΩ 0.5 GΩ
- 20 %
- 50 GΩ to 100 GΩ 5 GΩ
- 20 %
- 1000 V <200 kΩ
- Unspecified
- 5.0 GΩ to 20.0 GΩ 0.1 GΩ
- 5 %
- 20.0 GΩ to 50.0 GΩ 0.5 GΩ
- 20 %
- 50 GΩ to 200 GΩ 5 GΩ
- 20 %
- 2500 V <200 kΩ
- Unspecified
- 0.50 MΩ to 5.00 MΩ 0.01 MΩ
- 5 %
- 50 GΩ to 500 GΩ 5 GΩ
- 20 %
- Range
- Accuracy
- Leakage current measurement 1 nA to 2 mA
- ±(20 % + 2 nA)
- Capacitance measurement 0.01 μF to 2.00 μF
- ±(15 % rdg + 0.03 μF)
- Test voltage for insulation resistance 250 V to 2500 V
- ±(3 % + 3 V)
- Warning range
- >30 V
- F1535
- >2 mA
- F1537
- >5 mA
- Function Range
- Resolution
- VAC 0 V to 600.0 V
- 0.1 V
- VDC 0 V to 600.0 V
- 0.1 V
- Resistance 0 Ω to 600.0 Ω
- 0.1 Ω
- Resistance 600 Ω to 6000 Ω
- 1 Ω
- Resistance 6.00 kΩ to 60.00k Ω
- 0.01 kΩ
