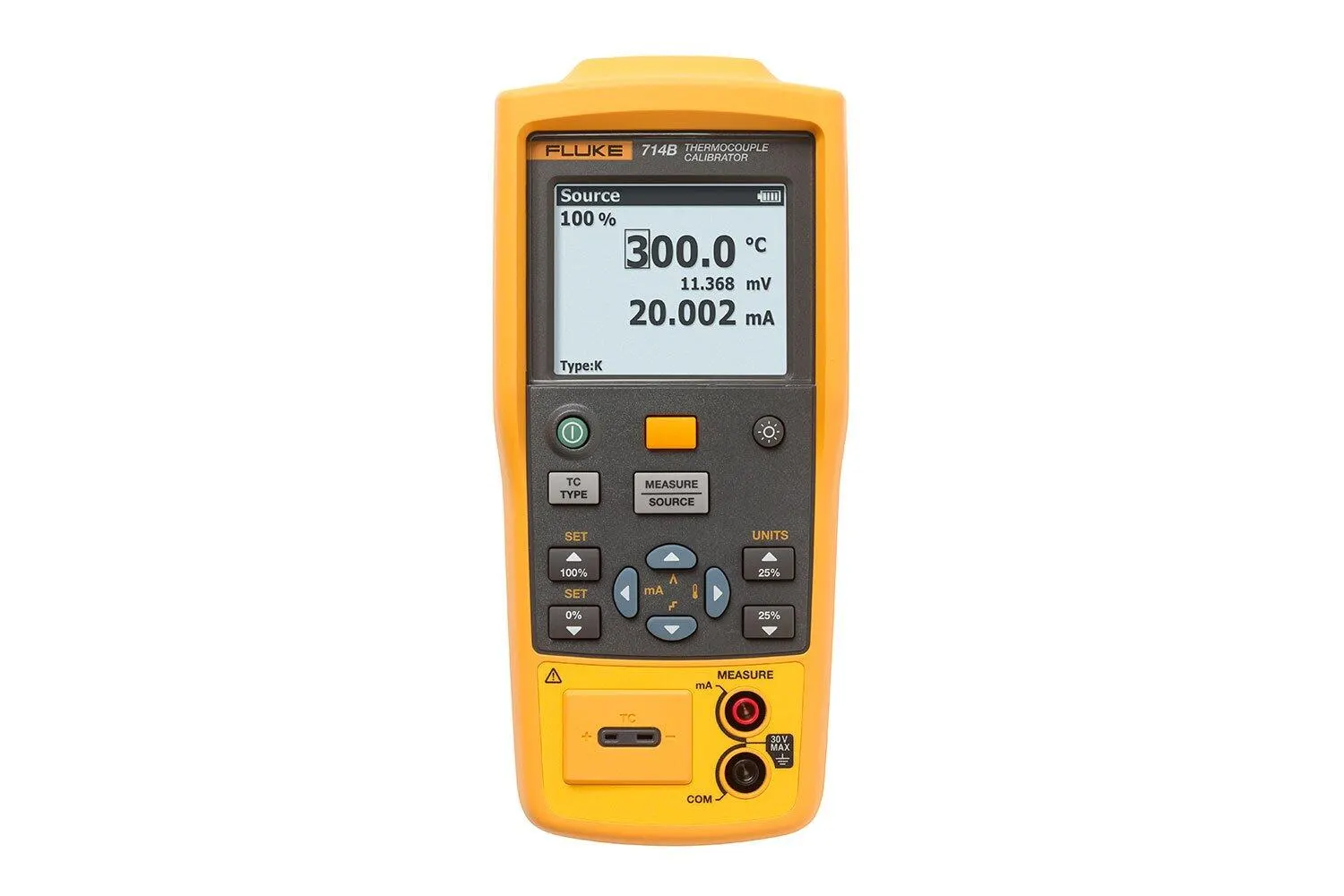

Fluke 714B Thermocouple Calibrator

The Fluke Calibration 714B thermocouple calibrator measures and simulates 9 types of thermocouples, providing durable and reliable performance for process calibration.

Manufacturer part number (MPN)

4387869

Brand

Fluke

Category

Tools

Operating temperature

-10°C to 50°C

Storage temperature

-30°C to 60°C

Operating altitude

2,000 m

Storage altitude

12,000 m

Relative humidity (% RH operating without condensation)

Non condensing 90% (10°C to 30°C) 75% (30°C to 40°C) 45% (40°C to 50°C) (Without condensation)

Vibration requirements

MIL-T-28800E, Class 2

Drop text requirements

1 m

IP Rating

IEC 60529: IP52

Electromagnetic environment

IEC 61326-1, Portable

Safety

IEC 61010-1, Max 30 V to earth, Pollution Degree 2

Power supply

4 AA NEDA 1.5A IEC LR6 batteries

Size (H x W x L)

52.5 x 84 x 188.5 mm

Weight

515 g

Resolution Range

Accuracy (% of reading + counts)

0-24 mA 0.001 mA

0.010% + 2 μA

Temperature coefficient

±(0.002% of reading + 0.002% of range) /°C ( 28°C)

-10 mV to 75 mV 0.01 mV

0.015% + 10 μA

HS Code

9031.80
