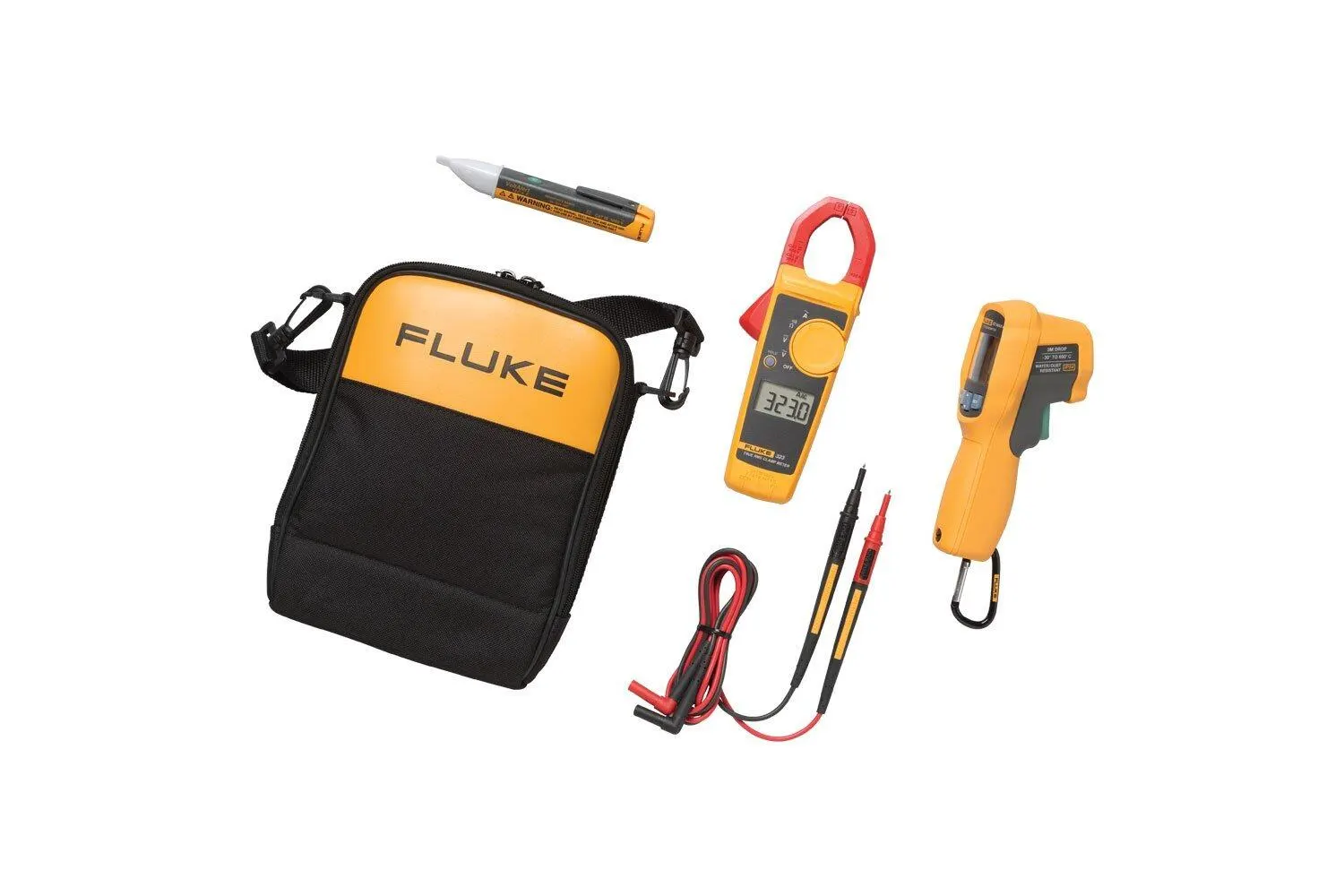

Fluke 62 MAX+/323/1AC IR Thermometer, Clamp Meter and Voltage Detector Kit

This kit helps electricians and HVAC technicians test for overheated electrical devices and use the clamp meter and voltage detector to find out more about the problem.

Manufacturer part number (MPN)

4296076

Brand

Fluke

Category

Tools

Temperature range

-30°C to 650°C (-22°F to 1202°F)

Accuracy

±1.0°C or ±1.0% of reading, whichever is greater -10°C to 0°C: ±2.0 -30°C to -10°C: ±3.0

Response time (95%)

< 300 ms (95% of reading)

Spectral response

8 to 14 microns

Emissivity

0.10 to 1.00

Optical resolution

12:1 (calculated at 90% energy)

Display resolution

0.1°C (0.2°F)

Repeatability of readings

±0.5% of reading or < ±0.5°C (1°F), whichever is greater

Power

AA battery

Battery life

8 hours with laser and backlight on

Weight

255 g (8.99 oz)

Size

175 x 85 x 75 mm (6.88 x 3.34 x 2.95 in)

Operating temperature

0°C to 50°C (32°F to 122°F)

Storage temperature

-20°C to 60°C (-4°F to 140°F), (without battery)

Operating humidity

10% to 90% RH non-condensing at 30°C (86°F)

Operating altitude

2000 meters above mean sea level

Storage altitude

12,000 meters above mean sea level

IP rating

IP 54 per IEC 60529

Drop test

3 meters

Vibration and shock

IEC 68-2-6 2.5 g, 10 to 200 Hz, IEC 68-2-27, 50 g, 11 ms

EMC

EN 61326-1:2006 EN 61326-2:2006

Standards and agency approval Compliance

EN/IEC 61010-1: 2001

Standards and agency approval Laser safety

FDA and EN 60825-1 Class II

AC current Range

400.0 A

AC current Accuracy

2% ±5 digits (45 Hz to 65 Hz) 2.5% ±5 digits (65 Hz to 400 Hz)

AC voltage Range

600.0 V

AC voltage Accuracy

1.5% ±5 digits

DC voltage Range

600.0 V

DC voltage Accuracy

1.0% ±5 digits

Resistance Range

400.0 Ω/ 4000 Ω

Resistance Accuracy

1.0% ±5 digits

Continuity

≤ 70 Ω

AC response

True-rms

Data hold

Yes

Size H x W x D (mm)

207 x 75 x 34

Size Max wire diameter

30 mm (600 MCM)

Size Weight

265 g

Category rating

CAT III 600 V CAT IV 300 V

Warranty

Two-year

Operating principle

Senses the steady state electrostatic field produced by ac voltage through insulation without requiring contact to the bare conductor. A red glow at the tip and a beeping noise (if not switched OFF) indicates the presence of voltage.

Voltage sensing ranges

Nominally, 90 VAC to 1000 VAC or 200 VAC to 1000 VAC depending on model, 45 Hz to 405 Hz; also a 20 V to 90 V control circuit model

Detector tip style

Blade or round, depending on model

Light source

One high intensity red LED

Agency approvals

c CSA us, CE, C-Tick

Safety rating

1000 V, CAT IV

Operating humidity ranges 0% to 95%

(0°C to 30°C)

Operating humidity ranges 0% to 75%

(30°C to 40°C)

Operating humidity ranges 0% to 45%

(40°C to 55°C)

Batteries

2 AAA alkaline batteries included

HS Code

9030.33
