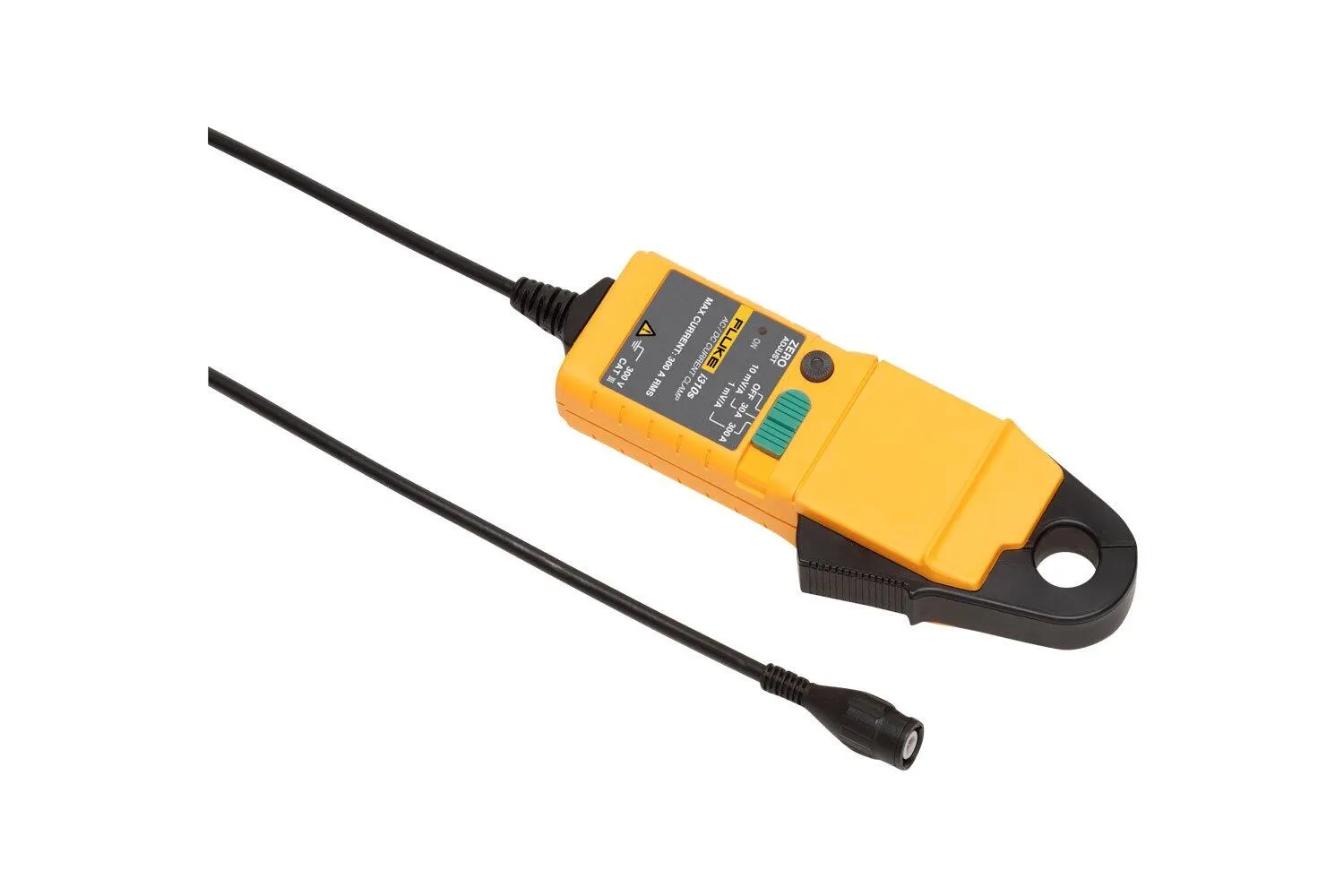

Fluke I310S Current Probe

The i310 current probe offered by Fluke can be used to measure both DC and AC current for accurate measurements. Contact us for more information.

Manufacturer part number (MPN)

2840309

Brand

Fluke

Category

Tools

Current ranges

30 A and 300 A AC rms or ±45 A and 450 A DC

Measuring ranges

±45 A and 450 A DC

AC rms or DC

±45 A and 450 A

Inrush current

600A AC rms MAX

Output sensitivity

10 mV/A (30 A)

Accuracy (at +23°C) (30 A range)

±1% of reading ±50 mA

Accuracy (at +23°C) (300 A range)

±1% of reading ±300 mA

Bandwidth to meet accuracy specification

1 kHz

Phase shift below 1 kHz

< 2 degrees

Resolution

±50 mA (30 A)

Load impedance

> 10 k Ohms and ≤100 pF

Conductor position sensitivity

±1.5% relative to centre reading

Frequency range (small signal)

DC to 20 kHz (-3 dB)

Temperature coefficient

±0.1% of reading / °C

Power supply

9 V Alkaline, MN1604/PP3

Battery life

30 Hours, low battery indicator

Working voltage (see Safety Standards section)

300 V AC rms or DC

Maximum conductor size

19 mm diameter

Output connection

Safety BNC connector

Output zero

Manual adjust via thumbwheel

Cable length

2 metres

Operating temperature range

-10 to +50°C

Storage temperature range (with battery removed)

-20 to +85°C

Operating humidity

15% to 85% (non-condensing)

Weight

250 g

Safety

IEC 61010-1, Pollution Degree 2

EMC Compatibility

IEC 61326-1: Portable Electromagnetic Environment
