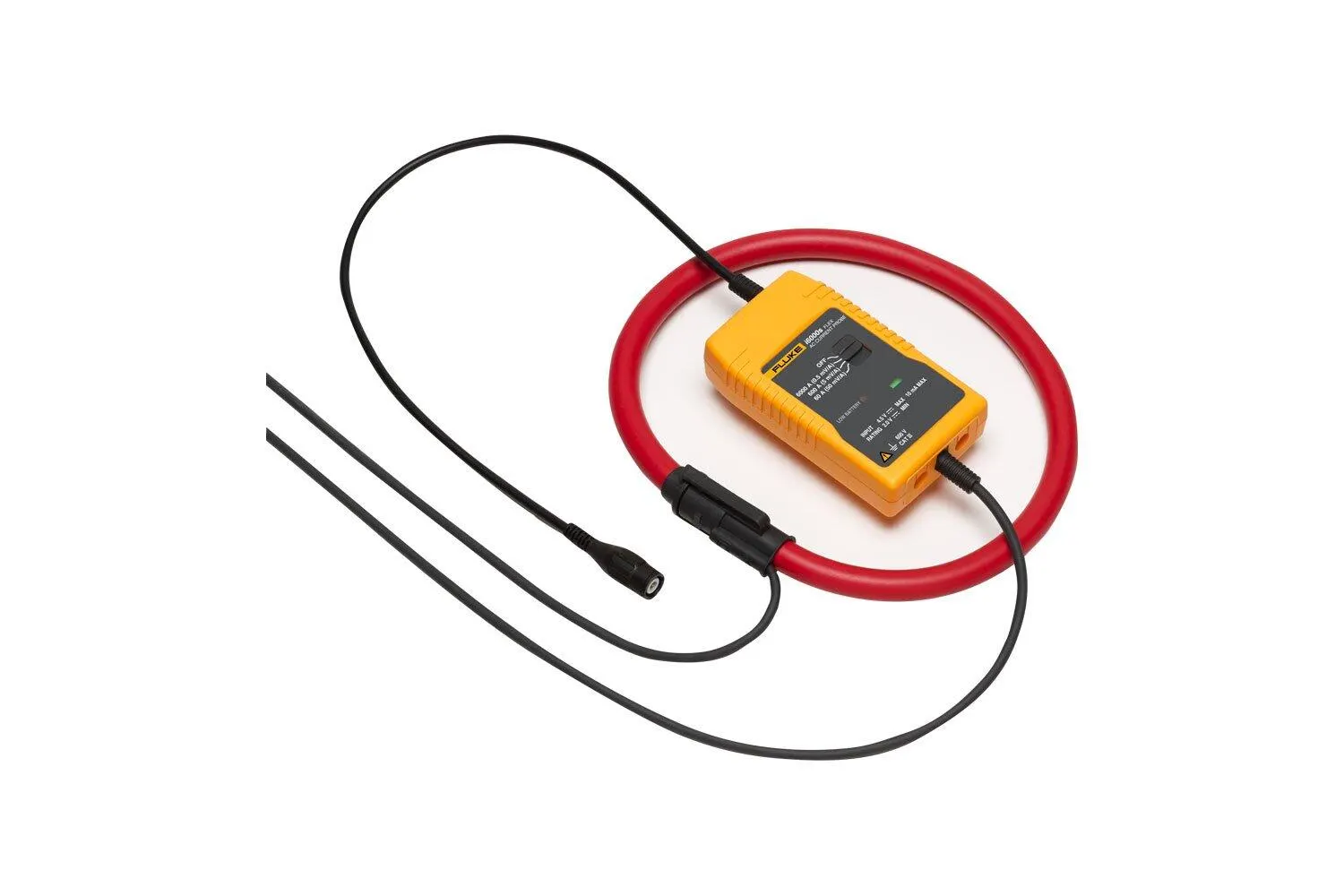

Fluke I6000SFLEX AC Current Probe

The i6000sflex is an AC current probe utilising the Rogowski principle.

Manufacturer part number (MPN)

2840311 Brand: Fluke Category: Tools Current ranges: 60 A / 600 A / 6000 A AC rms Output sensitivity (AC coupled): 50 mV /5 mV / 0.5 mV per A Load impedance: 100 kOhm minimum Accuracy (at +25°C): ±1% of range (45 – 65 Hz) Linearity (10% to 100% of range): ±0.2% of reading Noise: 8 mV AC rms (60 A) Frequency range: 10 Hz to 50 kHz (-3 dB) Phase error: < ±1° (45 – 65 Hz) Position sensitivity (with cable > 25 mm from the coupling): Position sensitivity: From 1% up to 3% of range with cable, depending on distance from the center (see figure left). Measurements closer than 25 mm from the coupling are typically greater than 3% of range. External wire influence: 1% (-40 db) of external current >200 mm from head. External field (with cable > 200 mm from the head): ±1% of range Power supply: 2 x AA MN 1500 LR6 alkaline Temperature coefficient: ±0.08% of reading per ° C Working voltage (see Safety Standards section): 600 V AC rms or DC Head cable length (double insulated): 610 mm (24 in) I6000s Flex-24 Head cable diameter: 14.3 mm Head bend radius: 38.1 mm Cable length (head to electronics): 2 m Output connection: 0.5 m cable terminated with safety BNC connector Operating temperature range: -20 to +90°C (head) Storage temperature range: -40 to +105°C (head) Operating humidity: 15% to 85% (non condensing) Weight: 180 g (head), 190 g (electronics) BS EN 61010: 1: 2001 EMC standards: BS EN 61326: 1998 +A1, A2, and A3

• OEM-URL https://www.fluke.com/en-us/product/accessories/current-clamps/fluke-i6000sflex
