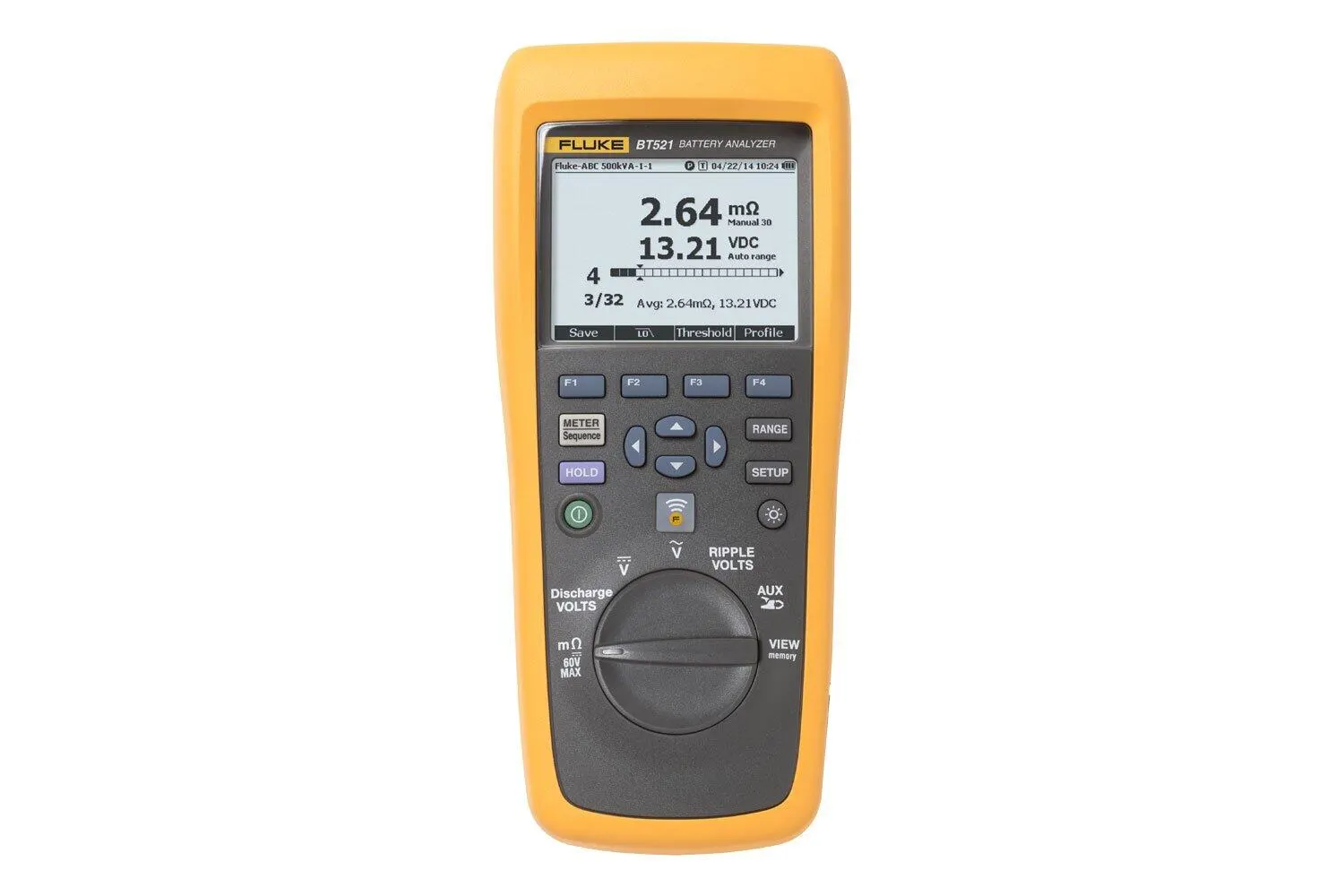

Fluke 500 Series Battery Analyzer

Get the Fluke BT521 Advanced Battery Analyzer with intelligent test probe set. The 500 series battery impedance tester can analyze stationary lithium ion batteries and battery banks internal battery resistance.

Manufacturer part number (MPN)

4489996

Brand

Fluke

Category

Tools

Voltage

Resistance

> Voltage Lower < Voltage Lower

< Reference

Pass Fail

Pass

Range

Resolution

Battery Resistance / Strap Resistance1 3 mΩ

0.001 mΩ

30 mΩ 0.01 mΩ

0.8% + 6

300 mΩ 0.1 mΩ

0.8% + 6

3000 mΩ 1 mΩ

0.8% + 6

VDC 6 V

0.001 V

60 V 0.01 V

0.09% + 5

600 V 0.1 V

0.09% + 5

1000 V 1 V

0.09% + 5

VAC (45 Hz to 500 Hz with 800 Hz filter) 600 V

0.1 V

Frequency (displayed with VAC and AAC)2 500 Hz

0.1 Hz

AC voltage ripple (20 KHz Max) 600 mV

0.1 mV

6000 mV 1 mV

3% + 10

ADC/AAC (with accessory Fluke i410) 400 A

1 A

Temperature 0°C to 60°C

1°C

Meter mode

999 records for each measurement position with time stamp

Sequence mode

Up to 100 profiles and 100 profile templates (Each profile stores up to 450 batteries) with time stamp

Measurement Modes BT510

BT520

Size (H x W x D)

22 x 10.3 x 5.8 cm (9 x 4 x 2 in)

Weight

850 g (1.9 lb)

Screen dimensions

7.7 x 5.6 cm (3 x 2.2 in)

Interface

USB mini

Warranty

3 years

Long angled probe (overall length)

242.2 cm (95.38 in)

Short angled probe (overall length)

216.8 cm (85.38 in)

Overall span (coil relaxed)

10.1 cm (4 in)

Overall maximum span (coil extended)

109.2 cm (43 in)

BTL20ANG probe tip angle

20 degrees from horizontal

Operating temperature

0°C to 40°C

Storage temperature

-20°C to 50°C

Lithium-ion battery charging temperature

0°C to 40°C

Operating humidity

Non-condensing (10°C)

Operating altitude

Sea level to 2000 meters

Storage altitude

Sea level to 12,000 meters

IP rating

IP40

Radio

FCC Class A

Vibration requirements

MIL-PRF-28800F: Class 2

Drop test requirements

1 meter

Temperature coefficients

Add 0.1 x specified accuracy for each degree C above 28°C or below 18°C

Safety compliance

600 V CAT III

EMC

IEC 61326

ROHS

China, Europe

Protection class 2

Pollution Degree II

Battery compliance

UN38.3
